PZ-Pre Specifications

The Radial PZ-Pre is a high performance preamp designed specifically for acoustic instruments and pickups of all sorts. A proprietary response curve has been developed that works in conjunction with the passive-interactive tone controls and piezo optimized front end to produce a warm yet detailed sonic signature. Exceptionally low noise and distortion differentiate the PZ-Pre from others producing a natural tone that will flatter most instruments of all types.

Specifications
Audio circuit type: Proprietary active circuit
Number of channels: Dual Input, Amp Out, Pre and Post EQ XLR balanced Out
Input Impedance: 6.8k Ohm at input jack (PZB active 10meg Ohm)
Output Impedance: 1k Ohm
Features
180° polarity reverse, Ground lift, Effects Loop, EQ Control, Boost
Input Connectors: 1/4"
Output Connectors: Pre and Post EQ XLR
Extras: 1/4" Effects Loop, Tuner
General
Construction: 14-gauge steel
Size (L x W x D): 8"w x 4 ¼"d x 2"h (205 x 110 x 51mm)
Weight: 2.7lbs (1.2kg)
Power: 15VDC 400mA, center pole positive
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

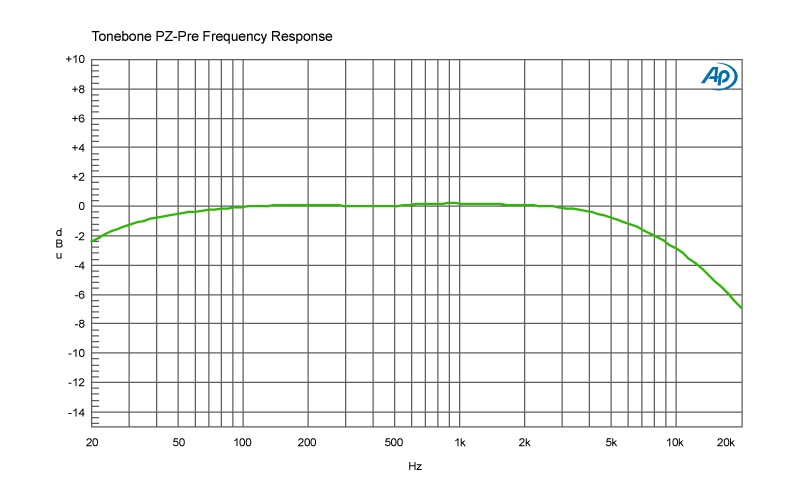

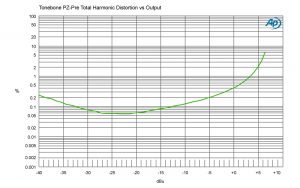

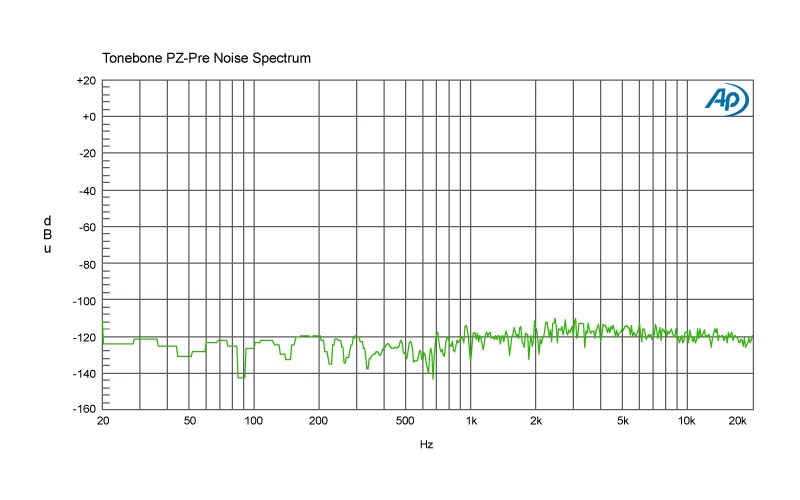

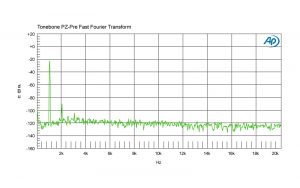

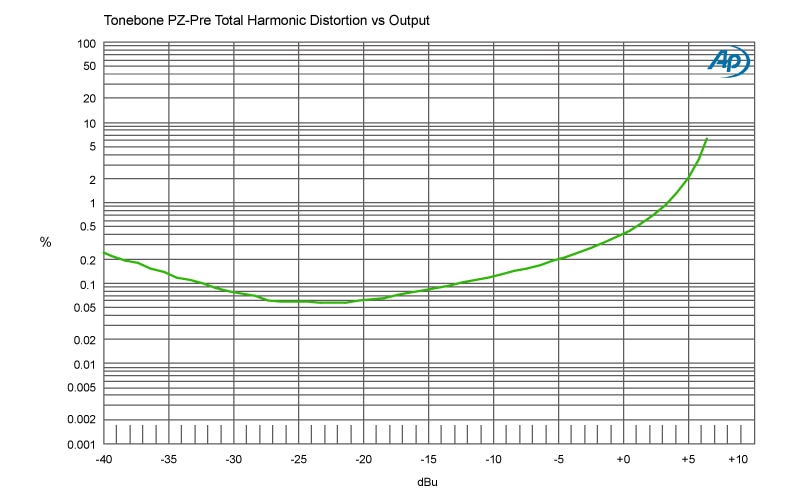

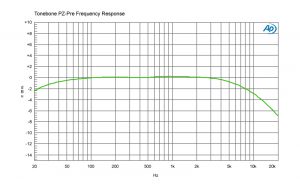

What do these graphs mean? Learn what to look for and why it matters.

Learn More

PZ-Pre Resources

Part no: R800 7085 00
