Relay Xo Specifications
Specifications

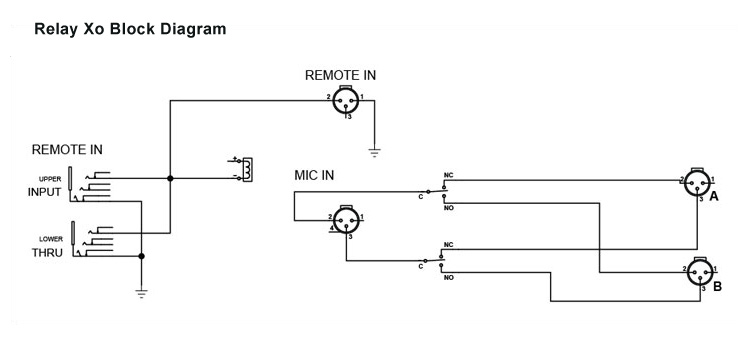

Block Diagram

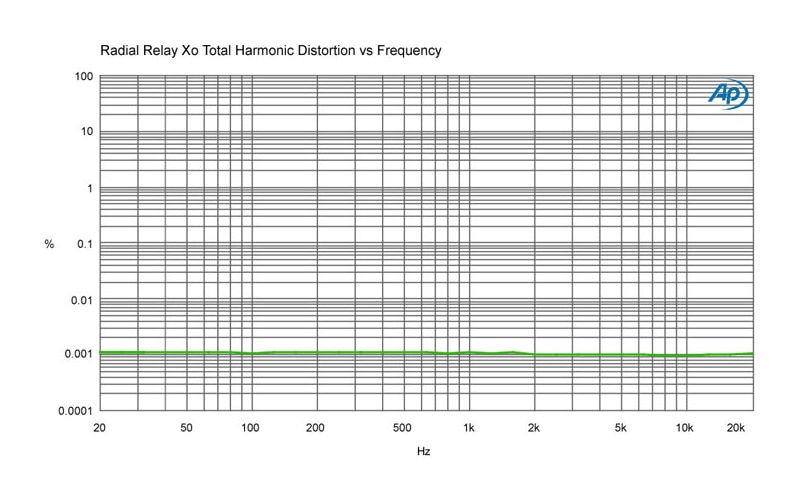

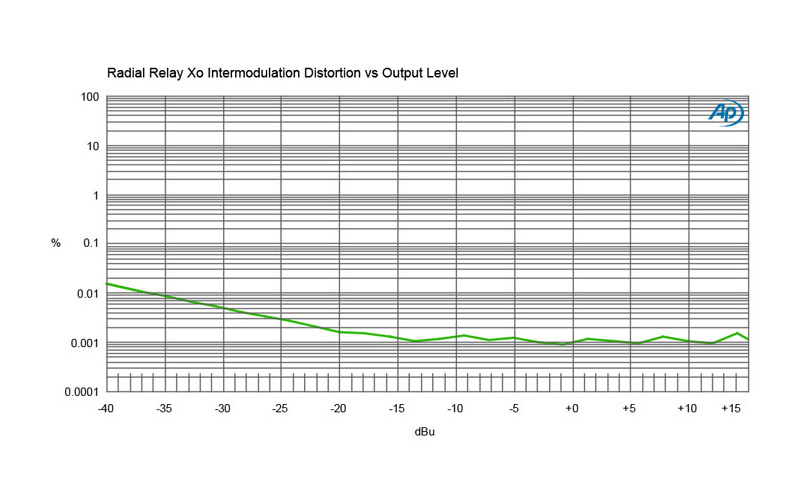

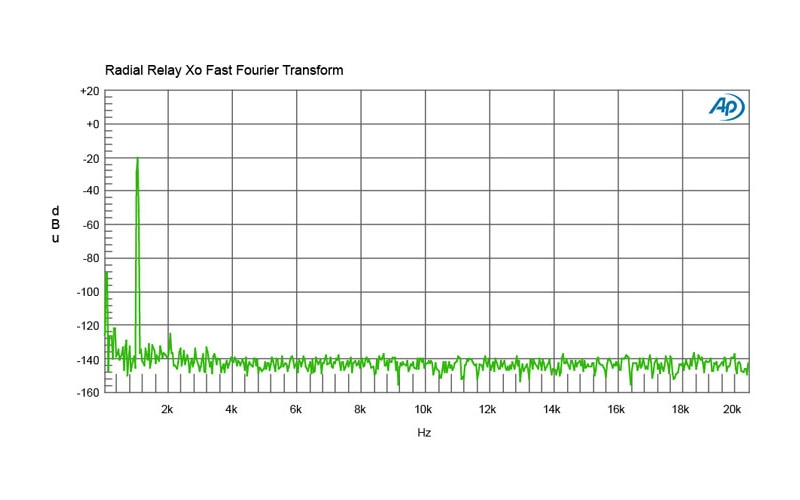

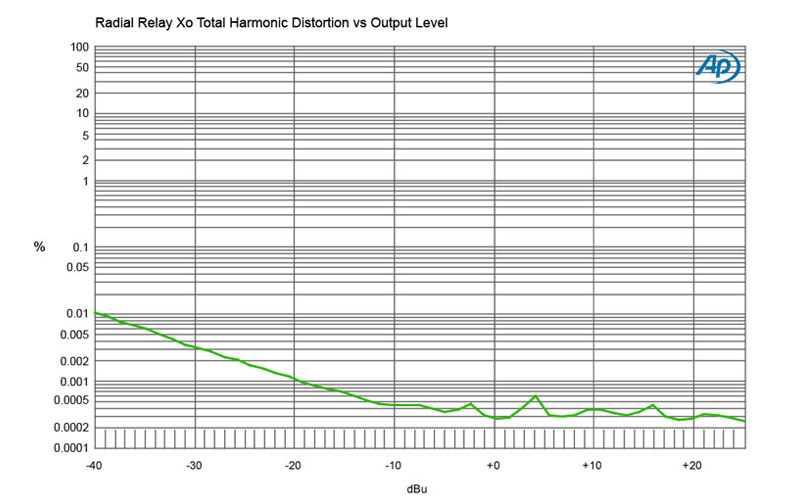

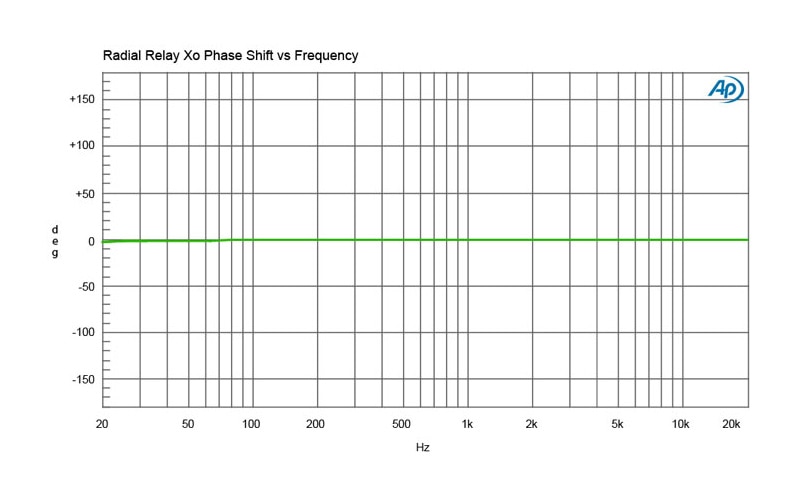

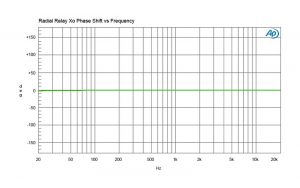

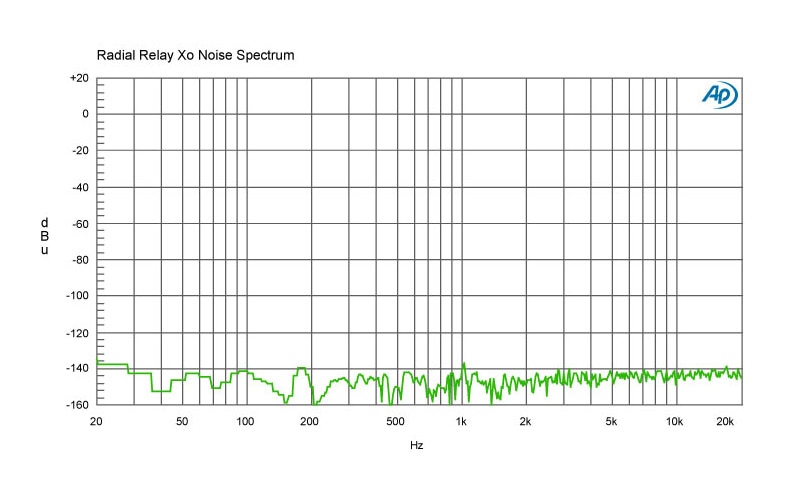

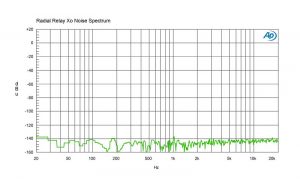

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Remotely controlled mechanical relay | |
| Frequency response: | 10Hz ~ 100kHz | |
| Dynamic range: | >140dB | |
| Gain: | 0dB | |
| Total harmonic distortion: | <0.0005% | |
| Intermodulation Distortion: | 0.001% | |
| Input Impedance: | Source dependent | |
| Output Impedance: | Source dependent | |
| Common Mode Rejection Ratio: | -106dB | |
| Noise Floor: | -115dBu | |
| Maximum Input: | +26dBu | |
| Features | ||
| Ground lift | ||
| Input Connectors: | XLR-F input | |
| Output Connectors: | 2 XLR-M outputs | |
| Extras: | Combo (XLR-F & ¼" ) and ¼" loop-through remote connectors; Contact Closure Function: With ¼" TRS jack, short tip and ground to switch With XLR, short pin-1 ground and pin-2 Hot to switch | |
| General | ||
| Construction: | 14 gauge steel with internal I-beam | |
| Size (L x W x D): | 5" x 3.3" x 1.8" (127mm x 84mm x 45.5mm) | |
| Weight: | 1.4 lbs (0.6kg) | |
| Shipping size (L x W x D): | 6.5" x 4" x 3" (165mm x 102mm x 76mm) | |
| Shipping weight: | 2.4lbs (1.08 kg) | |
| Power: | 15VDC, 30mA, center-pin (+) | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

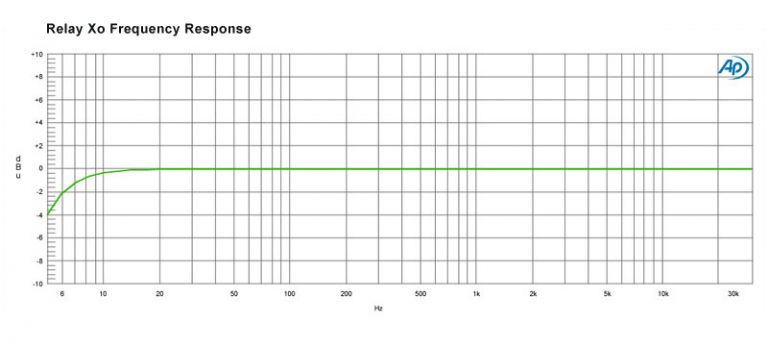

Frequency Response
