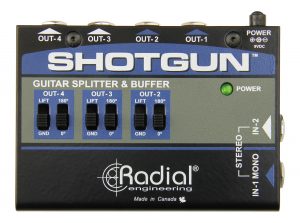

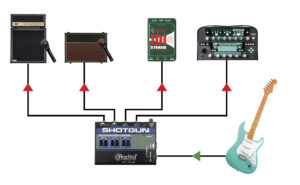

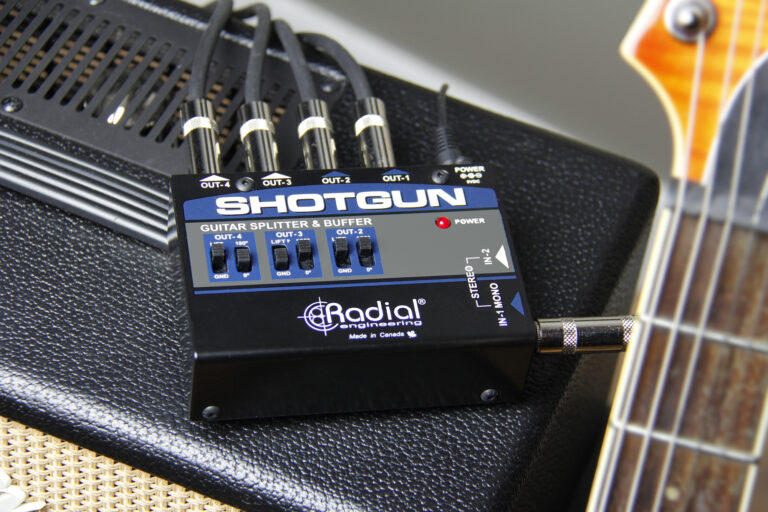

Shotgun Features

1
2
3
4
5
6
7
8
9

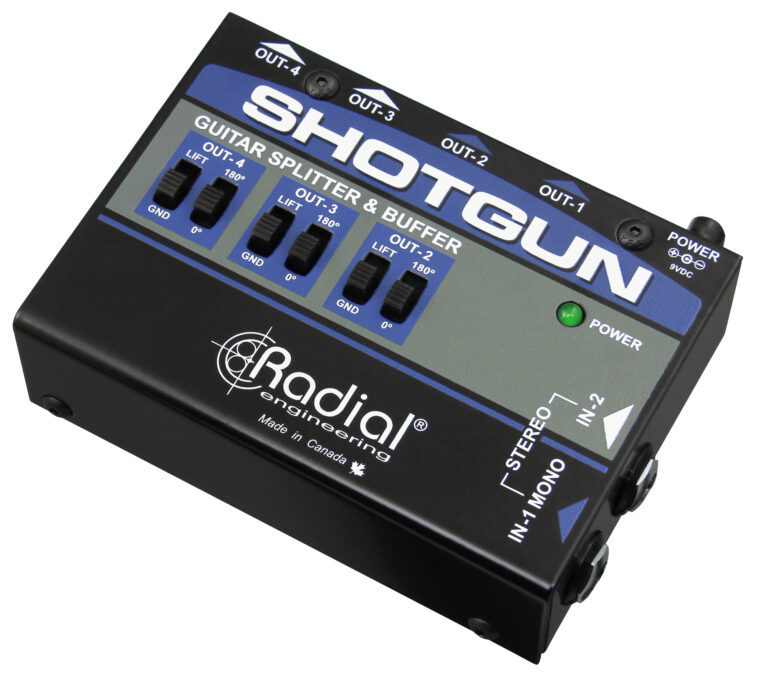

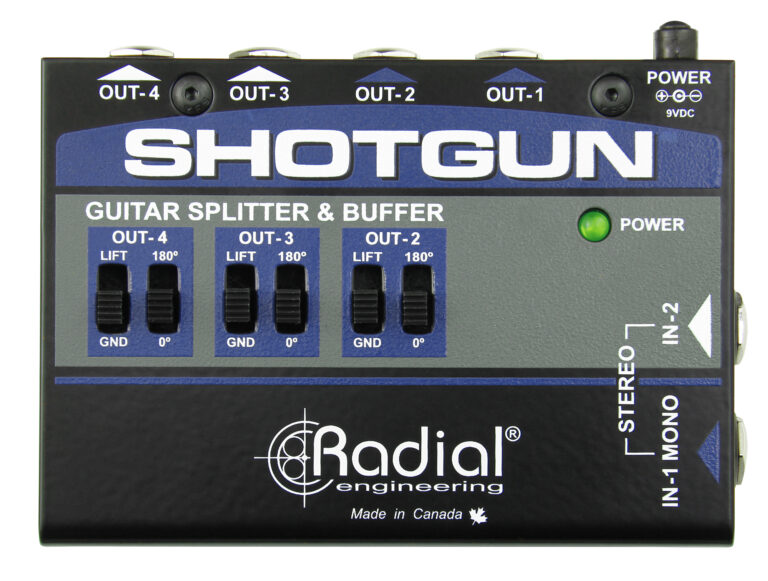

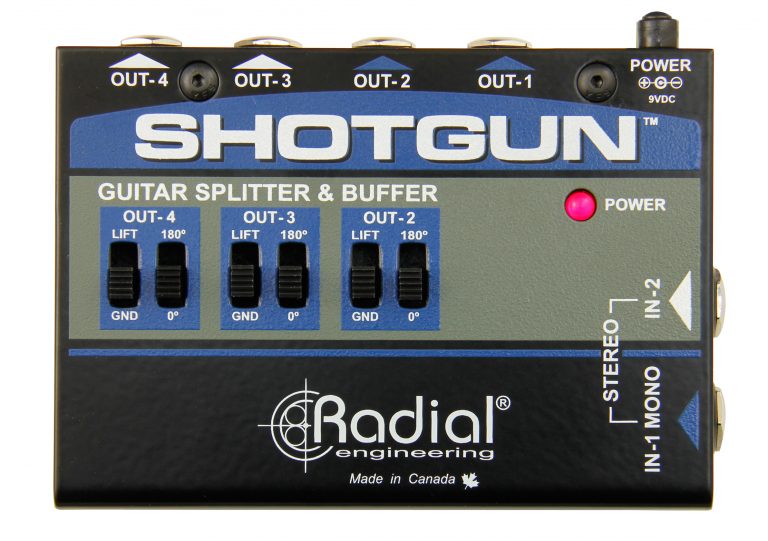

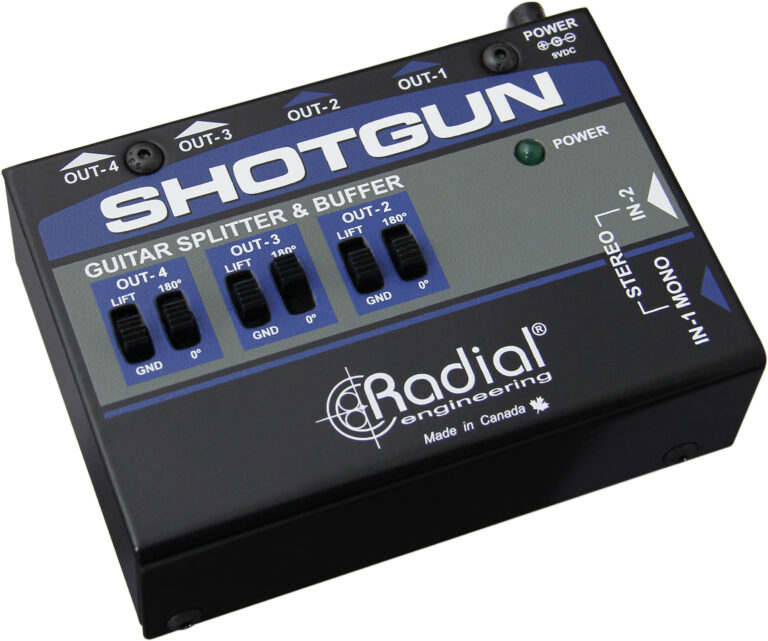

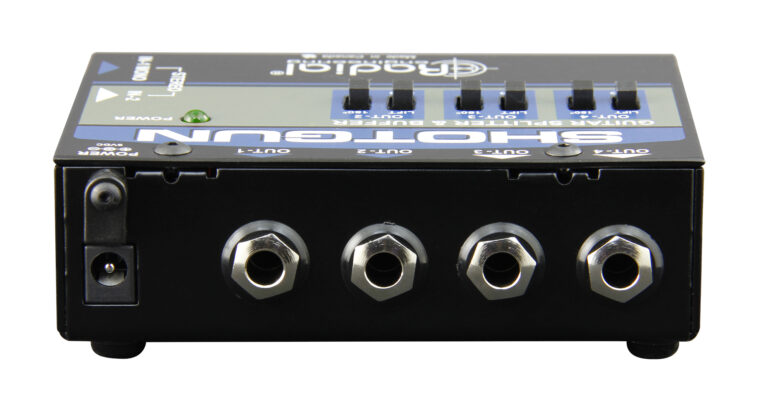

Steel Case

Heavy 14-gauge steel case provides shielding from power supplies and keeps the internal electronics safe from abuse.

1

Lift

On outputs 2, 3 & 4 lifts the audio ground to help prevent hum and buzz caused by ground loops.

2

180┬░

On outputs 2, 3 & 4 toggles the polarity of the outputs to ensure all your amps play in relative phase.

3

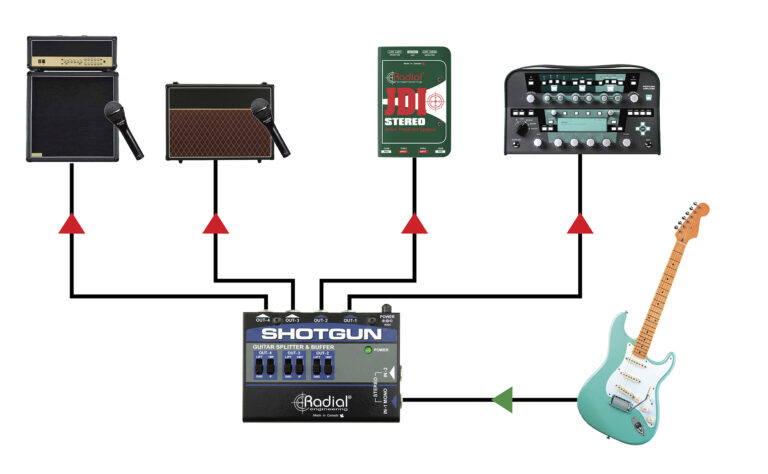

Out-2, 3 & 4

Transformer isolated outputs to eliminate ground loops and help reduce hum & buzz.

4

Out-1

Primary output, used to connect to your first amp. Provides the Shotgun with a ground reference for safety.

5

Power

Standard 9V connection for Boss-type power adaptor or DC brick. PSU is not included.

6

Power LED

Lets you know the Shotgun power supply is properly connected.

7

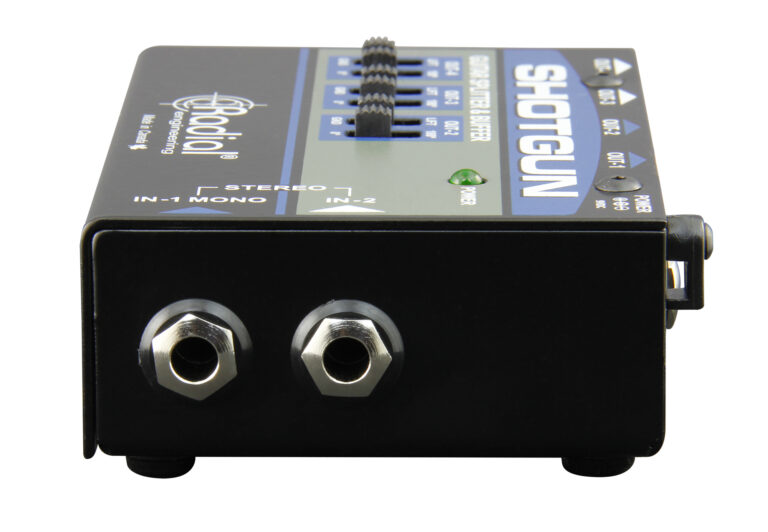

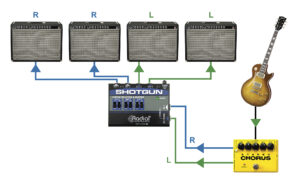

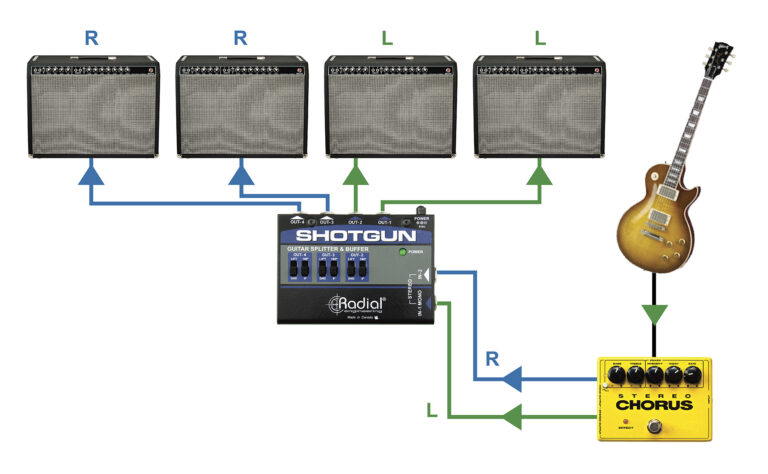

In-2 Stereo

When used, changes the circuit from 1x4 mono to 2x2 stereo to allow stereo sources such as a chorus to drive 1 or 2 sets of amps.

8

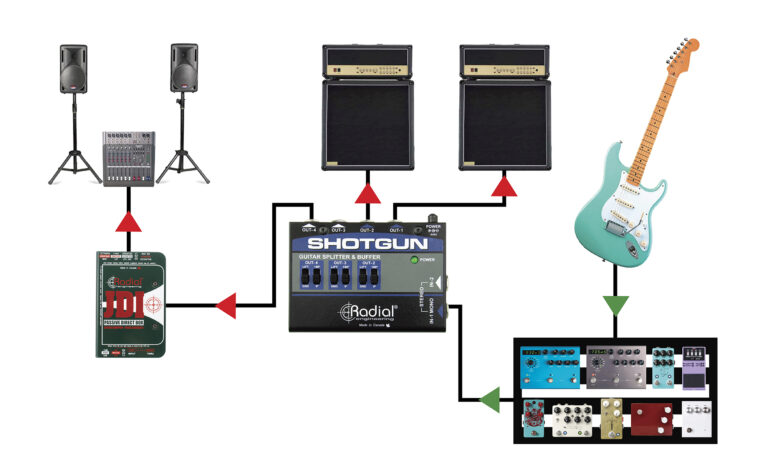

In-1 Mono

When used alone, sets the Shotgun to the 1x4 mono mode with input-1 driving all four outputs.

9
