Insert Loop Module

Balanced & Unbalanced Insert Loop

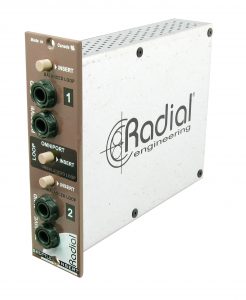

The Shuttle is a combination effects insert and routing module, allowing you to connect and audition two separate effects loops and route them to the mix buss of a Workhorse 500 series rack.

  • Connect any module to the Workhorse mix buss
  • Two front panel effects loops for handy patchbay convenience
  • Individual insert switches for comparing wet & dry signals
  • Third loop via Omniport to interface with a patchbay

Connect any effect to your 500 series rack

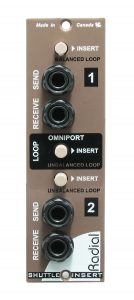

The Shuttle features three insert loops in total; an unbalanced and a balanced send & receive on the front panel, and an additional effects insert which is available on the Omniport rear connector when used with a Radial power rack such as the Workhorse. This allows you to seamlessly interface any audio equipment with your 500 series gear, from guitar pedals or vintage unbalanced equipment, to drum machines, mobile recorders, or balanced studio effects units. Each loop can be toggled on and off with a front panel switch, for easy auditioning between the original track and the affected signal, or for choosing between different playback sources. It also works in conjunction with the mix buss on the Radial Workhorse, automatically feeding a single channel on the mixer. The Shuttle makes connecting effects to your 500 series rack quick, easy and effective.

Shuttle Applications

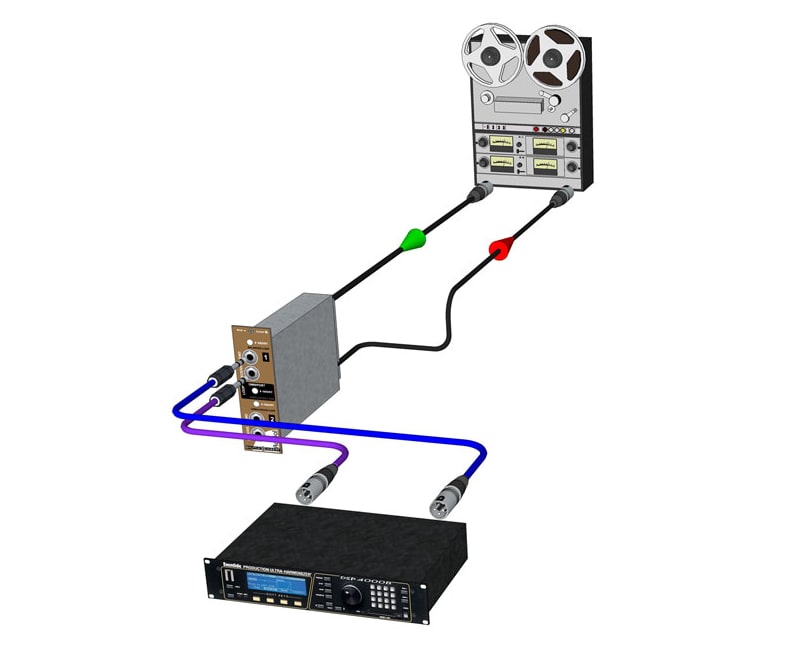

Balanced Send and Return

Use the Shuttle to interface balanced studio devices or simply patch in without having to repatch or reach in behind equipment.

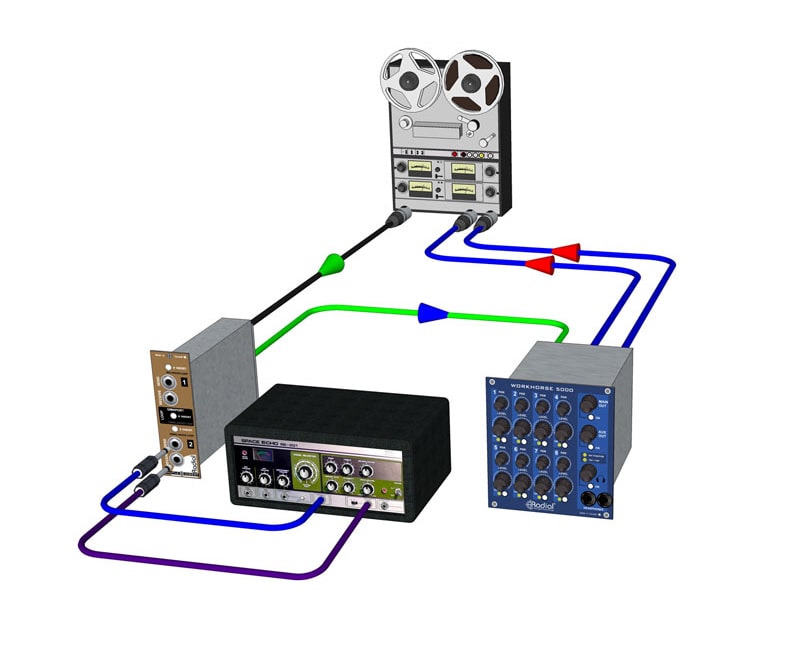

Unbalanced Send and Return

Combine the Shuttle with your Workhorse to interface unbalanced studio effects with the ease of front panel connectivity.

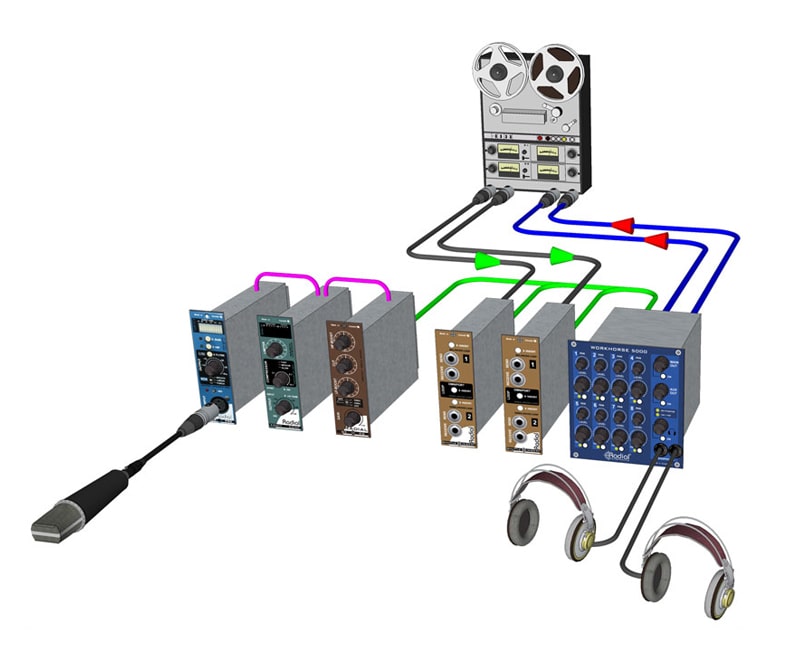

Overdubbing in Real Time

The Shuttle makes it easy to overdub tracks without digital latency. Plug into the Workhorse with a mic preamp or channel strip and start recording!


Shuttle Resources

Part no: R700 0134 00
