Shuttle Specifications
The Radial Shuttle is essentially a throughput device. In real terms, it has no sound or personality as the primary inputs and outputs are merely straight wire connections to and from a given device. The specifications shown reflect the feed going to the Workhorse internal mix buss. The frequency response and levels are really a factor based on the equipment being connected to the Shuttle, not the Shuttle itself.
Specifications

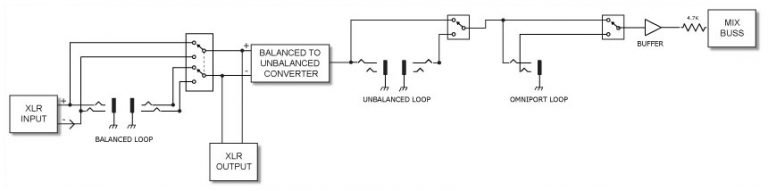

Block Diagram

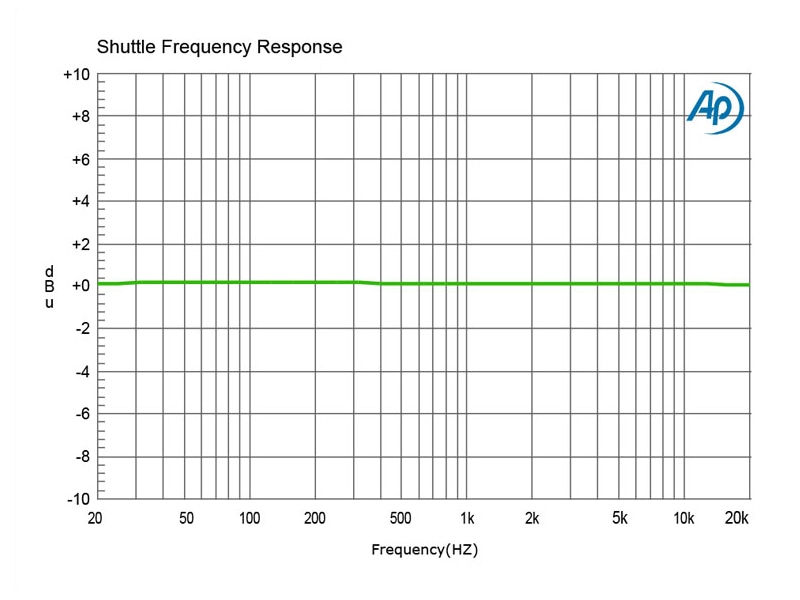

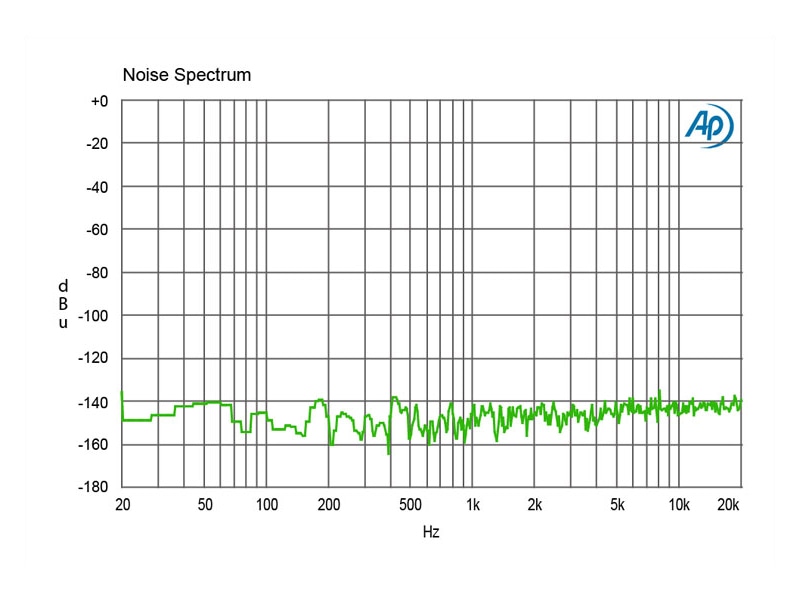

Graphs
| Specifications | ||
|---|---|---|
| Frequency response: | 20Hz to 20KHz, ± 0.5dB | |
| Dynamic range: | >130dB | |
| Gain: | 0dB | |
| Input Impedance: | 20K Ohms | |
| Noise: | -125dBu | |
| Maximum Input: | +22dBu to *Workhorse buss - Max Input | |
| Current Draw: | 20mA | |
| Features | ||
| OmniPort | ||
| Input Connectors: | 1/4" | |
| Output Connectors: | 1/4" | |
| Extras: | Omniport function: Unbalanced loop | |
| General | ||
| Weight: | 1.5 lbs. (0.7 kg) | |
| Shipping size (L x W x D): | 9 x 6.5 x 2 (inches) | |
| Power: | 20mA | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
