SB-2 Specifications
The Radial SB-2 is a compact passive direct box that is designed primarily for buffered sources such as active acoustic guitar, keyboard and electric bass. A unique stereo-to-mono merge function enhances functionality by enabling stereo keyboards to be connected and mixed mono to save channels in the PA. Upon testing, the SB-2 exhibits exceptionally linear response and low distortion throughout the desired operating range, proving that size does not necessarily follow performance! The compact design provides the traveling musician with a quality direct box that can be depended upon for the most demanding club gigs.
Specifications
Block Diagram

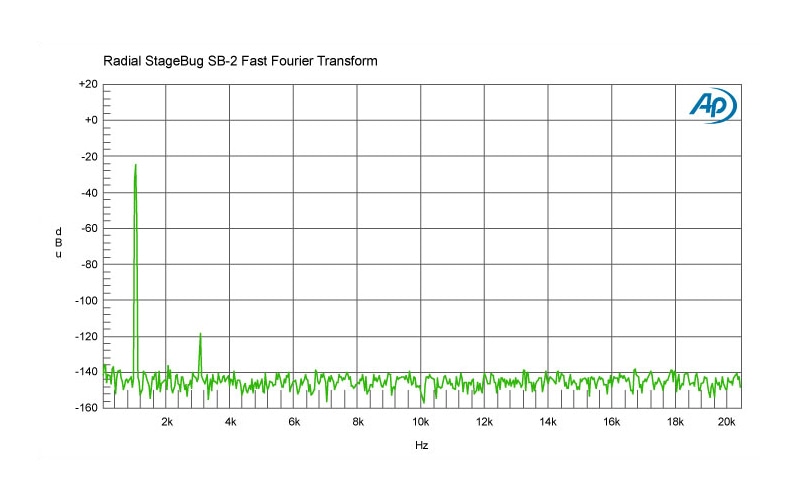

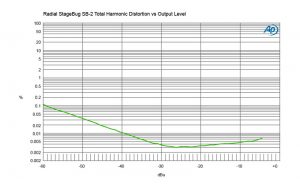

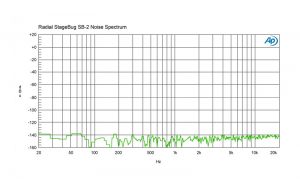

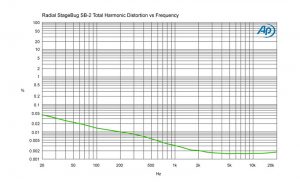

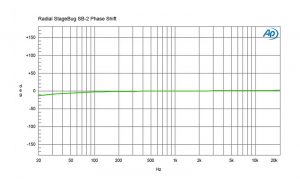

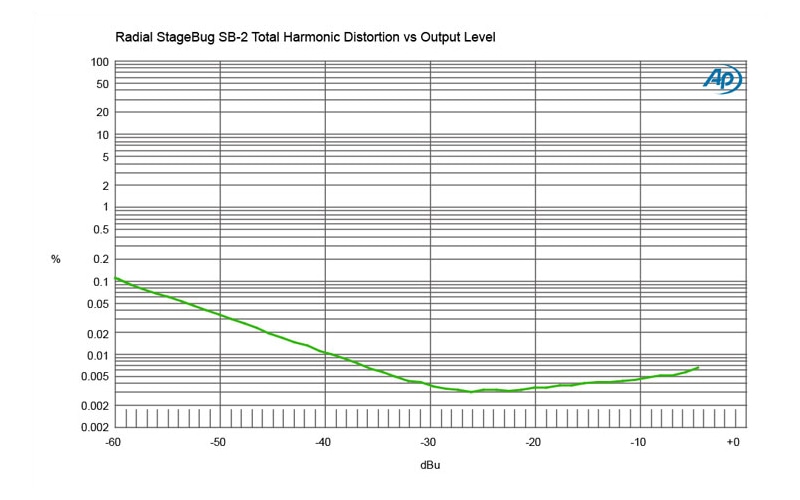

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive, transformer based | |
| Transformer: | Eclipse ET-DB3, 12:1 ratio | |
| Number of channels: | 1 | |
| Frequency response: | 20Hz ~ 20KHz (± 0.5dB) | |
| Dynamic range: | 115dB | |
| Total harmonic distortion: | 0.005% @ 1kHz | |
| Phase Deviation: | 3° @ 100Hz; 8° @ 50Hz | |
| Input Impedance: | 140k Ohms, unbalanced | |
| Output Impedance: | 1k Ohms, balanced | |
| Maximum Input: | +20dB | |
| Features | ||
| Input pad, Ground lift | ||
| Input Connectors: | 1/4" | |
| Output Connectors: | XLR | |
| General | ||
| Construction: | 14 gauge steel chassis & outer shell | |
| Size (L x W x D): | 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm) | |
| Weight: | 0.55 lbs (250 grams) | |
| Shipping size (L x W x D): | 8" x 5" x 3" (203mm x 127mm x 76mm) | |
| Shipping weight: | 0.8 lbs (365 grams) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
Learn More
