SB-6 Specifications

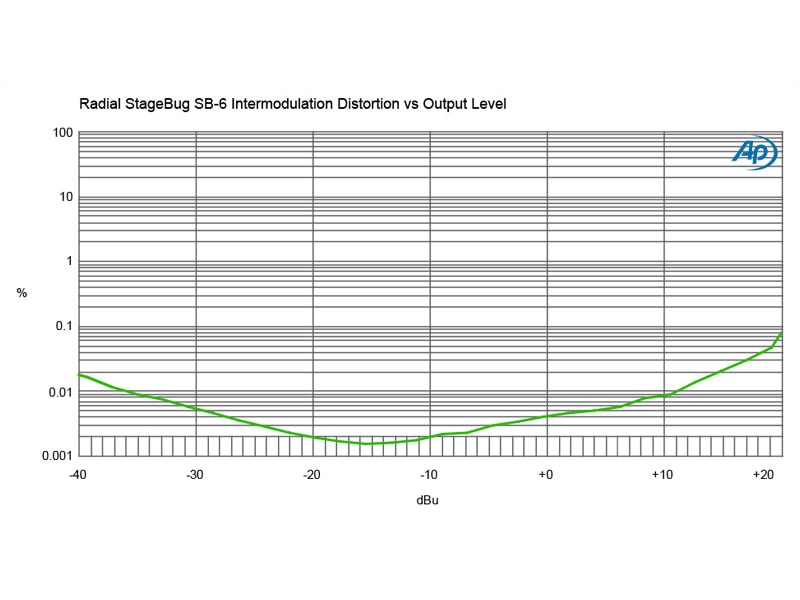

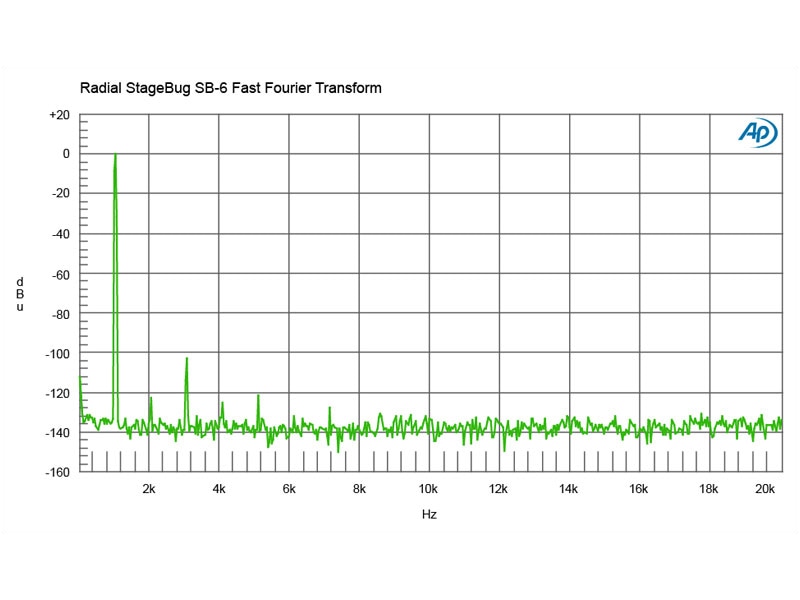

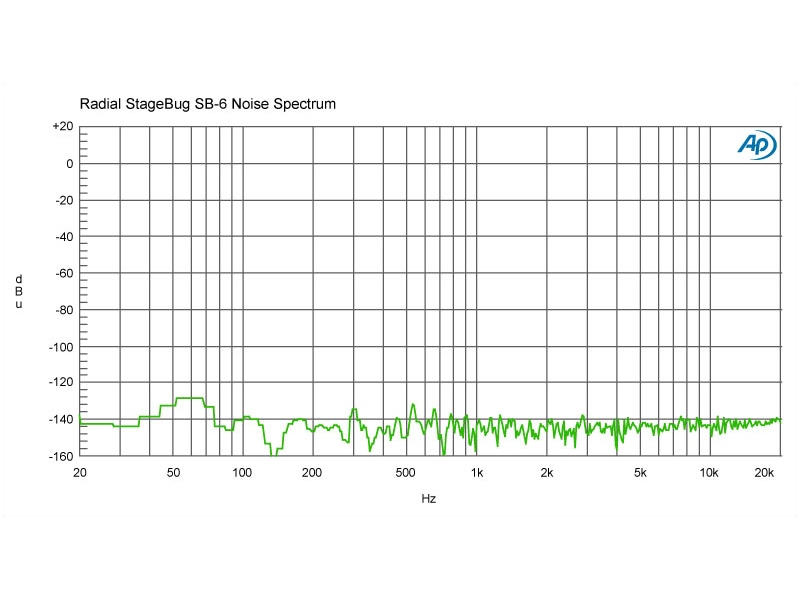

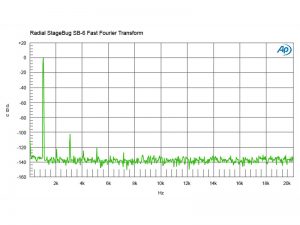

The SB-6 is a passive isolator that has been designed to work with both balanced and unbalanced signals. As detailed in the graphs below, the SB-6 is exceptionally linear throughout the audio range and exhibits nearly flawless phase shift even in the lower registers. Very low distortion from -40dB to +10dB makes the SB-6 ideally suited for instruments, consumer audio devices and pro-balanced audio signals, while the compact size makes it easy to integrate in just about any situation.

Audio circuit type: Passive Transformers
Transformer: Eclipse Custom
Frequency response: 20Hz-20KHz +/-1db
Dynamic range: >140db
Gain: -2dB

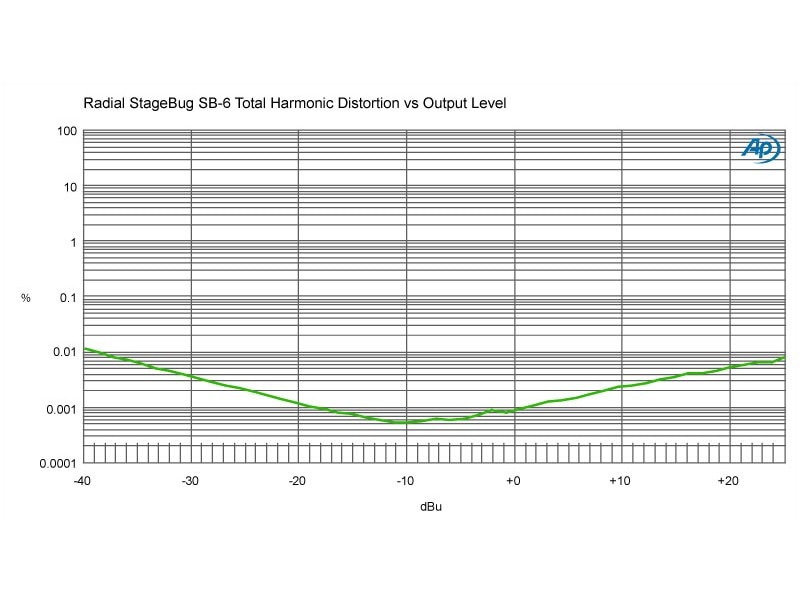

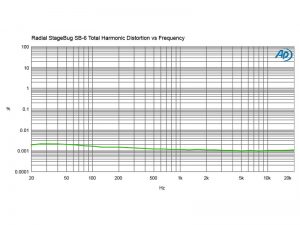

Total harmonic distortion: <0.0008% @ 1kHz

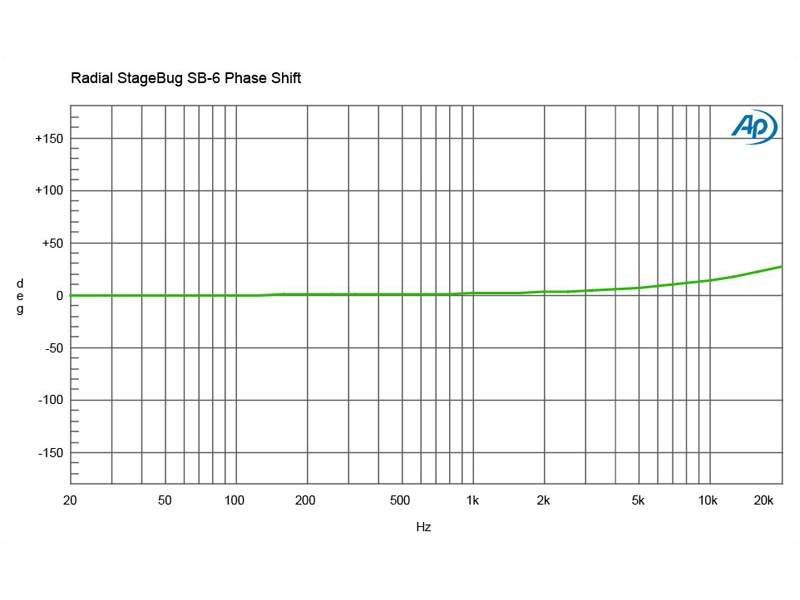

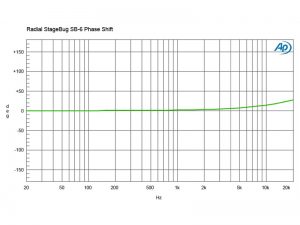

Phase Deviation: >5° @ 30Hz
Input Impedance: Varies with Load/47K
Output Impedance: 600Ω
Maximum Input: >+25dBu
Input pad, 180° polarity reverse, Ground lift
Input Connectors: 1/4" TRS
Output Connectors: 1/4" TRS
Construction: 14 gauge steel chassis & outer shell
Size (L x W x D): 3.92" x 2.54" x 1.7" (100mm x 65mm x 43mm)
Weight: 0.9 lbs (408 grams)
Shipping size (L x W x D): 8" x 5" x 3" (203mm x 127mm x 76mm)
Shipping weight: 1.0 lbs (453 grams)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

Frequency Response
