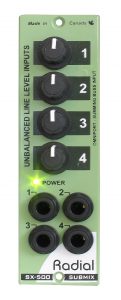

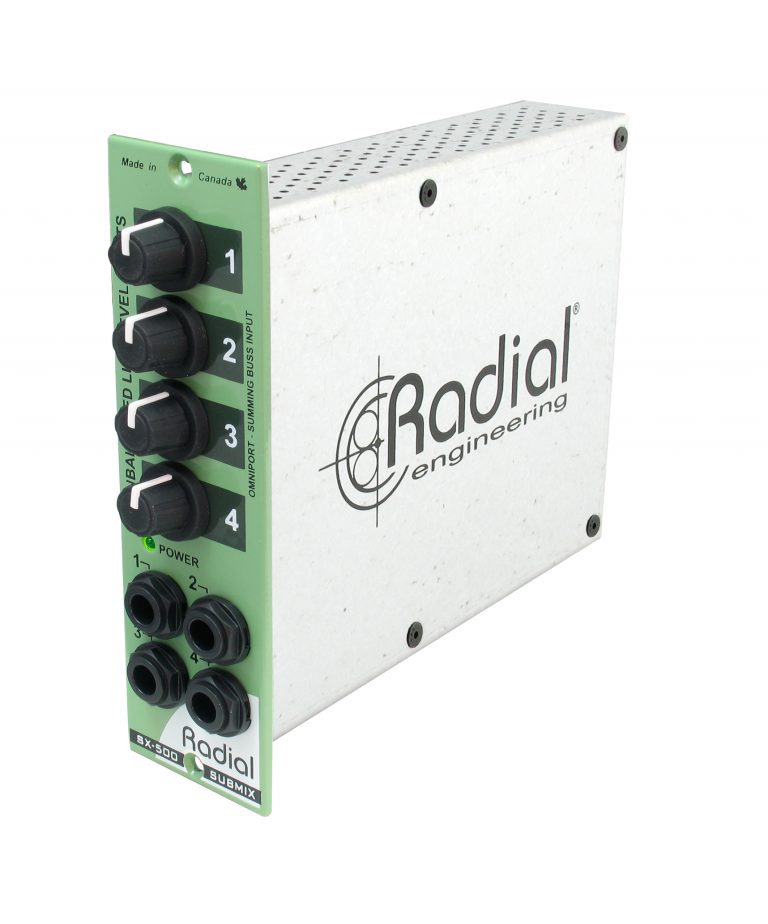

The Radial SubMix is a 500 series module designed to elegantly handle four sources and mix them via a series of four front panel controls. Because the SubMix does not incorporate effects or equalization, it is extremely quiet and behaves very, very well within its -10dB to +12dB working range. The SubMix delivers exceptional audio with less than 0.002% distortion at all frequencies.
Specifications
Block Diagram

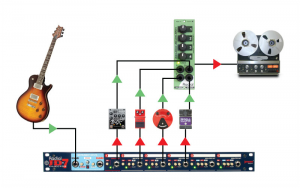

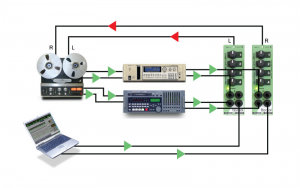

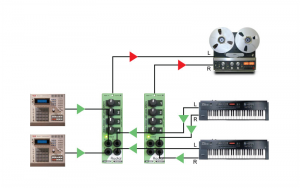

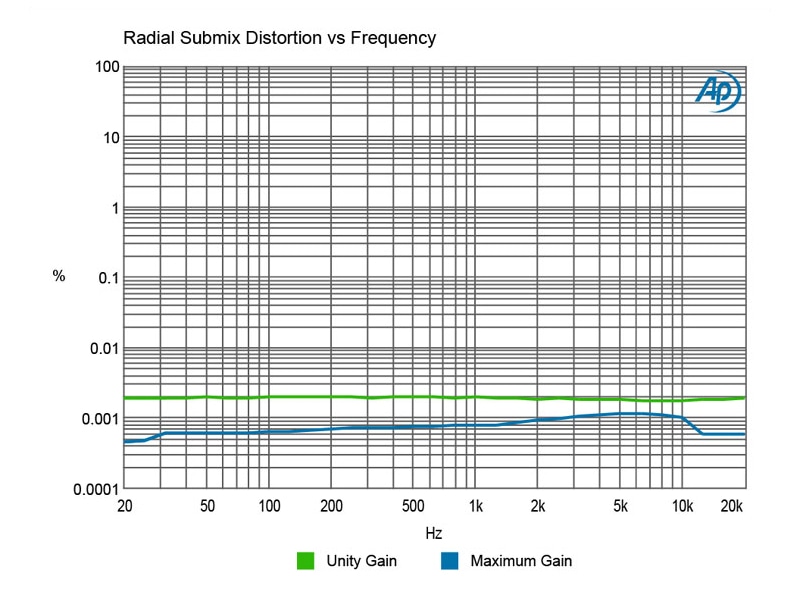

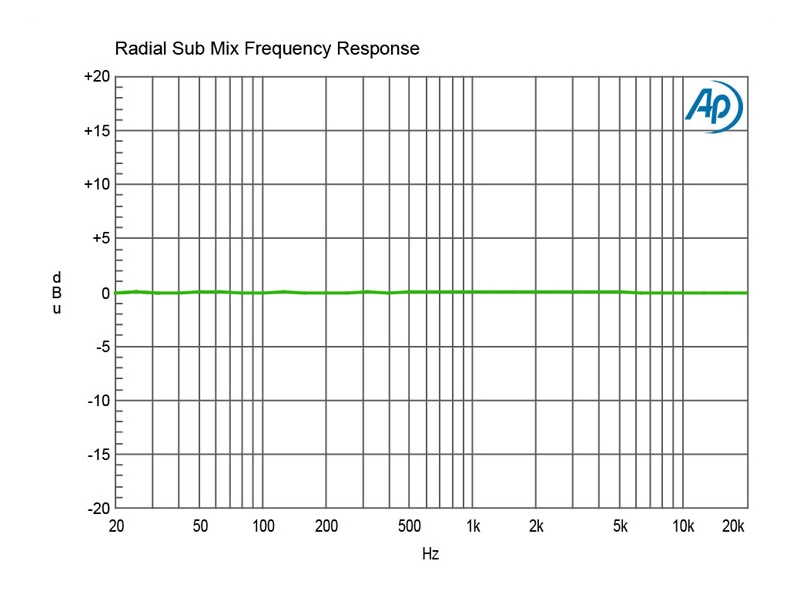

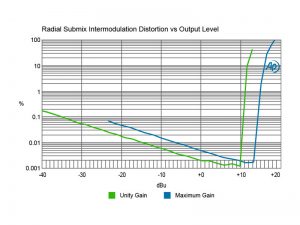

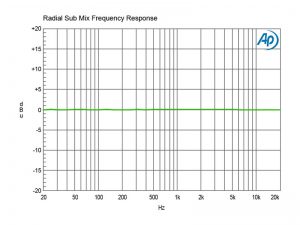

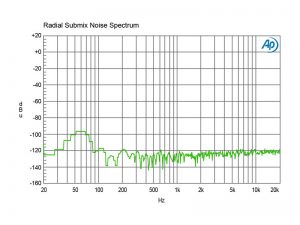

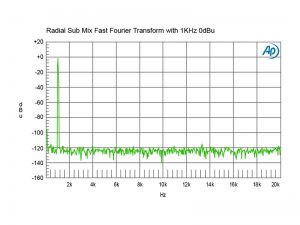

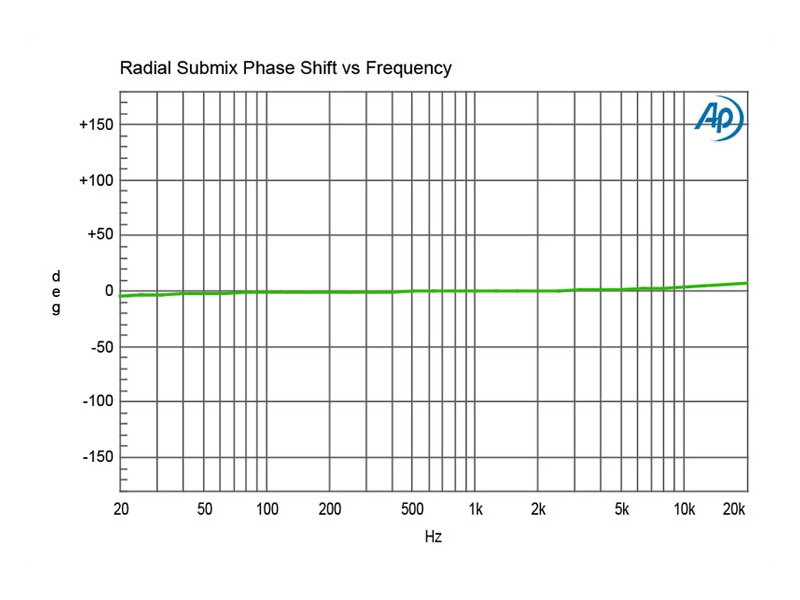

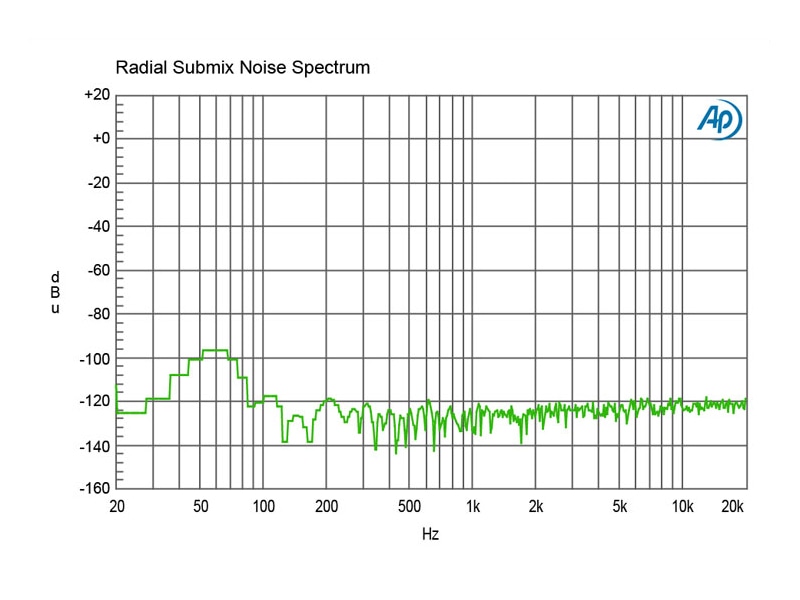

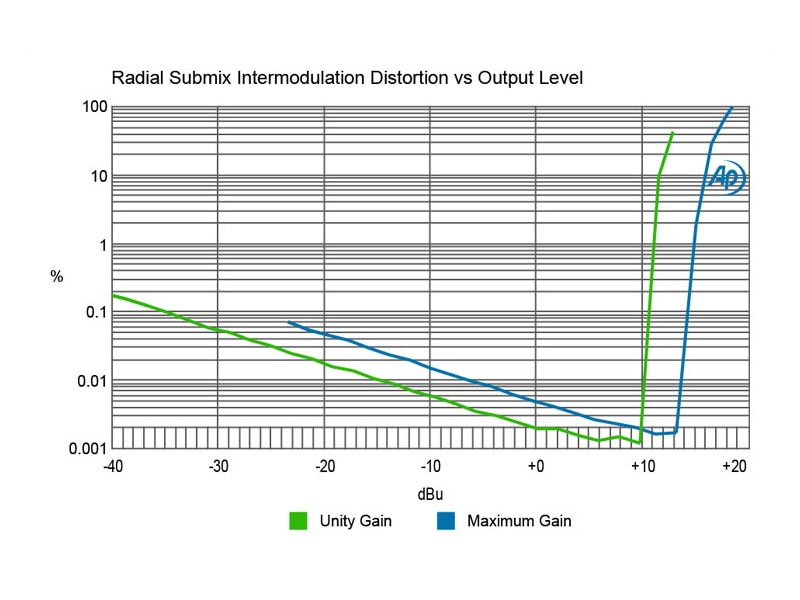

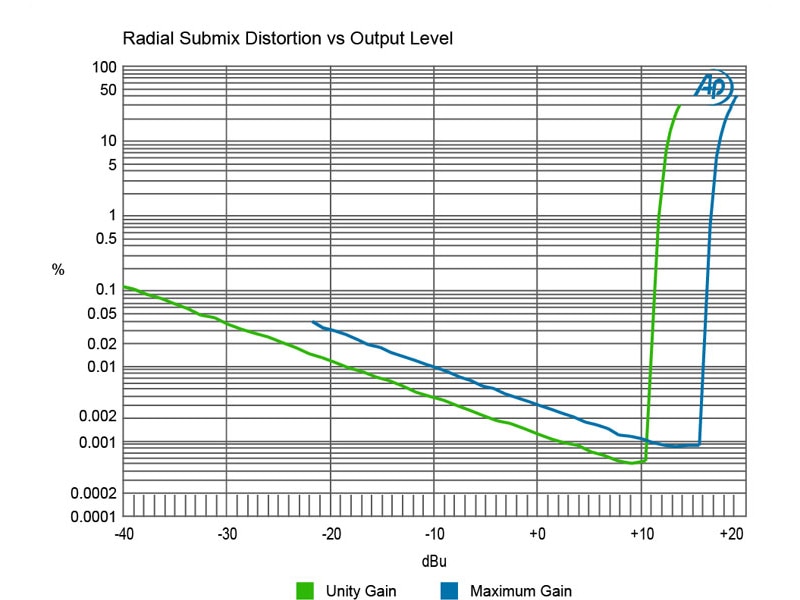

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Op-Amp w/ accustate gain control | |
| Frequency response: | 20Hz to 20KHz | |
| Dynamic range: | 97dB | |
| Total harmonic distortion: | <0.005% | |
| Intermodulation Distortion: | <0.006% | |
| Phase Deviation: | < 8 degrees at 20Hz | |
| Equivalent Input Noise: | -103dBu | |
| Maximum Input: | +12dBu | |
| Maximum Output: | +16dBu | |
| Current Draw: | +/- 16V @ 31 mA | |
| Features | ||
| Input Connectors: | 1/4", XLR | |
| Output Connectors: | XLR | |
| Extras: | Omniport function: Expansion input for buss | |
| General | ||
| Weight: | 1.5 lbs. (0.7 kg) | |
| Shipping size (L x W x D): | 9 x 6.5 x 2 (inches) | |
| Power: | +/- 16V @ 31 mA | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
