Switchbone V2 Features

1
2
3
4
5
6
7
8
9
10
11
12
13

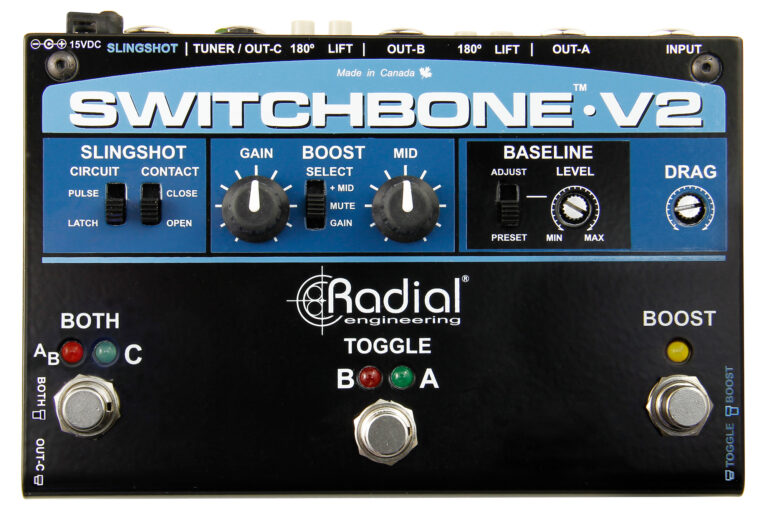

Slingshot

Lets you send an on-off type command to other external devices via a ¼” cable and contact closure. The contact closure may be activated using the Boost or the Toggle footswitches.

1

Circuit

Sets the Slingshot contact closure to a latching or pulse.

2

Both/Amp C

Footswitch used to activate both A and B amps, or turn on Amp C.

3

Contact

Sets the Slingshot contact to normally open or normally closed.

4

Gain

Sets the boost output level from 0dbB to +18dB.

5

Boost

Power booster used for soloing or adding more distortion to heavily saturated amps.

6

Toggle Mode LEDs

Let you know which amp was last selected to determine your next amp setup without confusion.

7

Toggle

Footswitch used to select between amps A or B.

8

Mid

Variable control, delivers up to 12dB of mid-range boost for soloing.

9

Preset/Adjust

Selects buffer between the zero-gain setting or the user adjustable level.

10

Baseline Level

Lets you increase the buffered output to add more sizzle to the front end of your amp.

11

Drag

Variable control is used to set the load that is applied on the pickup from 22k to 1 Meg.

12

Boost

Footswitch used to activate the power booster.

13
1
2
3
4
5
6
7
8
9

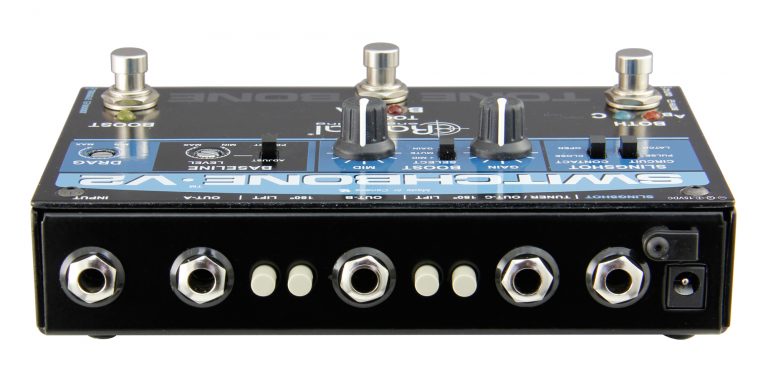

Input

Standard ¼” input used to connect your guitar to the Switchbone V2.

1

Out-A

Direct ¼" output used to feed your primary amplifier.

2

Out-B

Isolated ¼” output used to feed the signal to your second amplifier.

3

Lift

Recessed ground lift switch used to eliminate hum and buzz.

4

180°

Recessed polarity reverse, used to phase align the 3rd amp with the others.

5

Tuner/Out-3 (C)

Isolated ¼” output used to feed a tuner or a 3rd amplifier.

6

Slingshot

Contact closure output used to activate external devices.

7

Clamp

Secures the power supply in place.

8

15VDC

Connection for the power supply (included).

9
1

Both/Out-3 (C)

Recessed switch sets the footswitch function to either activate both A and B amps, or turn on amp C.

1
1

Slingshot

Assigns the Slingshot function to the Boost or the Toggle AB footswitch.

1

Switchbone V2 Resources

Part no: R800 7081 00
