Switchbone V2 Specifications
Specifications

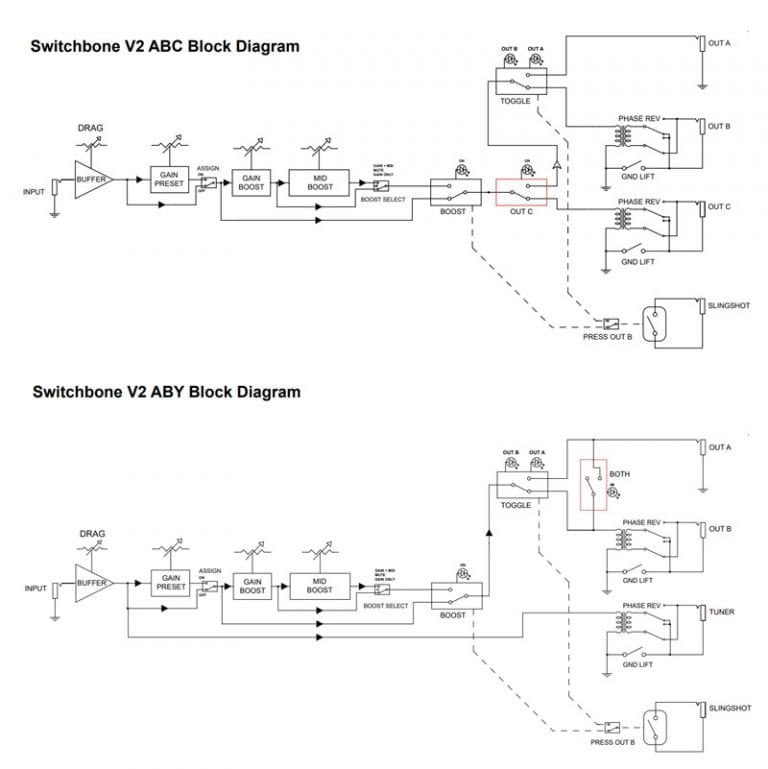

Block Diagram

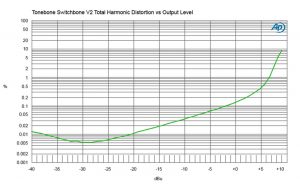

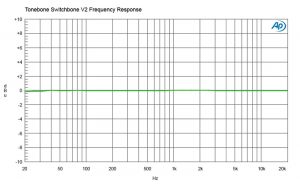

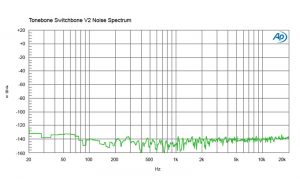

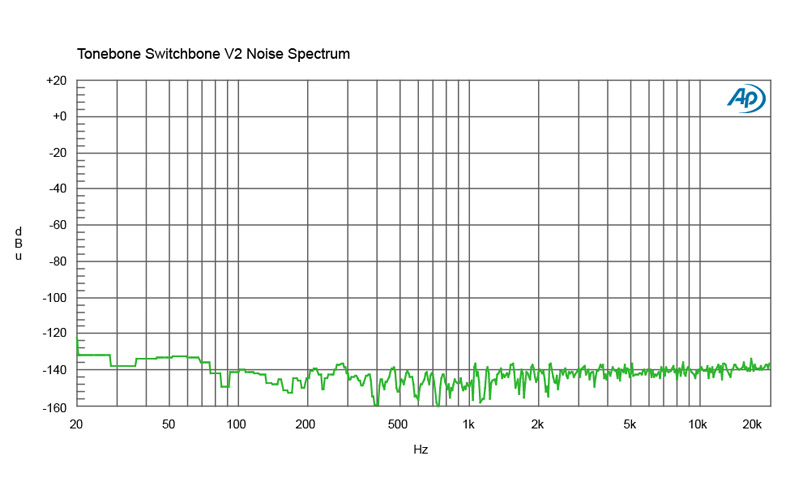

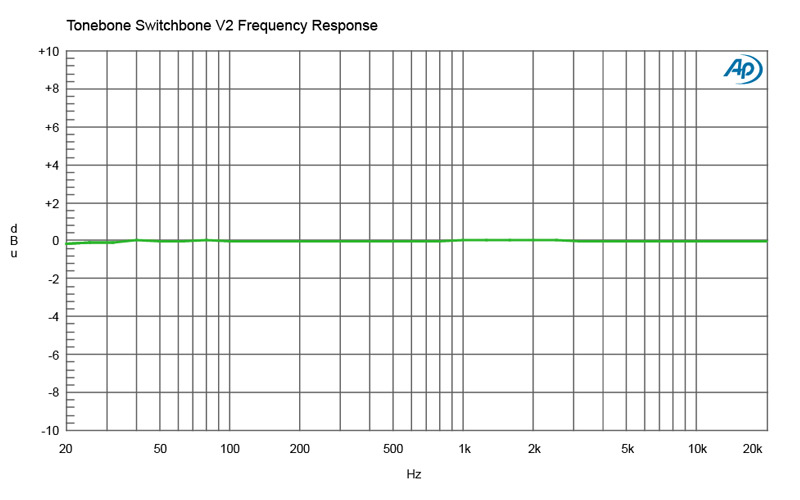

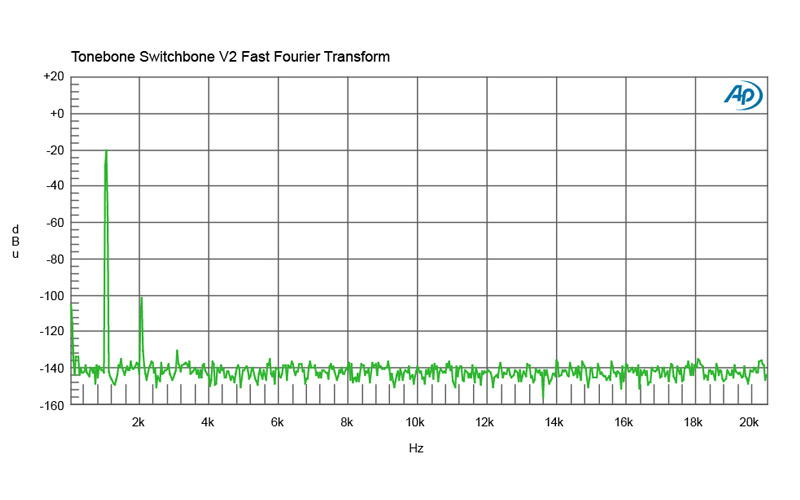

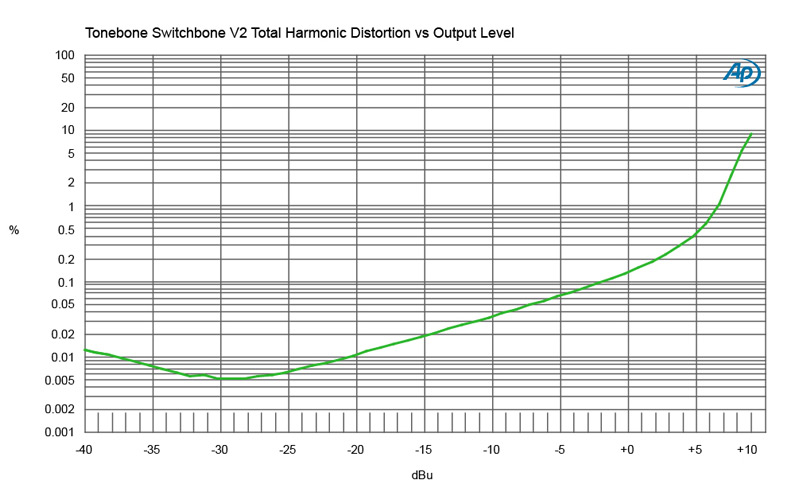

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Discrete Class-A | |
| Gain: | Unity to +12dB (Baseline gain) | |
| Input Impedance: | Variable with drag control | |
| Output Impedance: | 10k Ohm | |
| Noise Floor: | -111dB | |
| Features | ||
| 180° polarity reverse, Ground lift, Boost | ||
| Input Connectors: | 1/4" input | |
| Output Connectors: | 4 1/4" outputs | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 6.62" x 4.5" x 2" (168 x 114 x 51mm) | |
| Weight: | 2.35lb (1.07kg) | |
| Shipping size (L x W x D): | 10.75" x 4.75" x 2.5" (273 x 120 x 64mm) | |
| Shipping weight: | 3.35lbs (1.5kg) | |
| Power: | 15VDC 400mA, center pole positive | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
