1
2
3
4
5
6
7
8

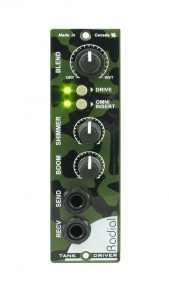

Blend
Sets the balance between the dry signal and the wet reverb.
1
Drive
Increases the output going to the reverb for less sensitive reverb tanks.
2
Omni Insert
Sends the signal to the Omniport TRS on the Workhorse which in this case is a send & receive insert jack.
3
Shimmer
Increases the high frequency tone of the wet reverb circuit.
4
Boom
Increases the low frequency tone of the wet reverb circuit.
5
Send
Output connection that goes to the reverb tank.
6
Recv
Return path from the reverb tank to the Tank Driver.
7
Omniport
When used with Workhorse, ¼” TRS insert jack with tip-send, ring-return can be used instead of the front panel connectors.
8
