Specifications

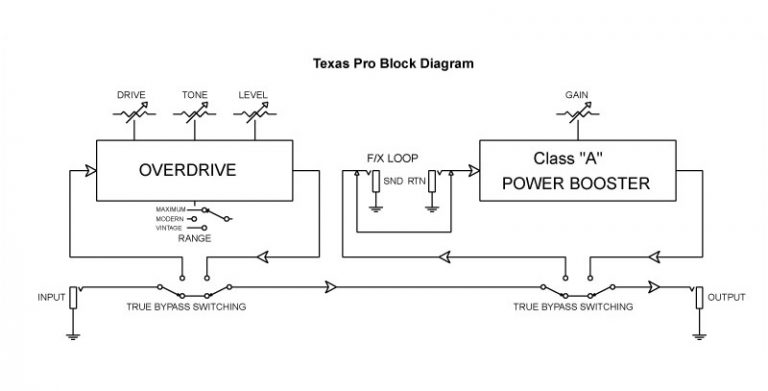

Block Diagram

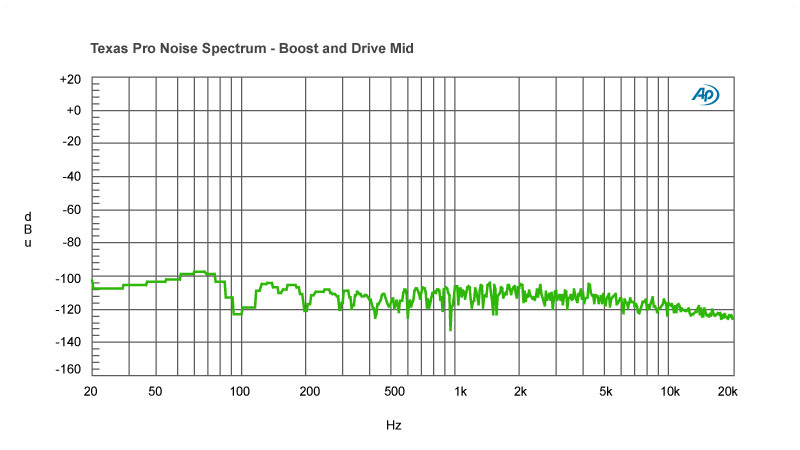

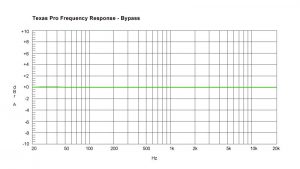

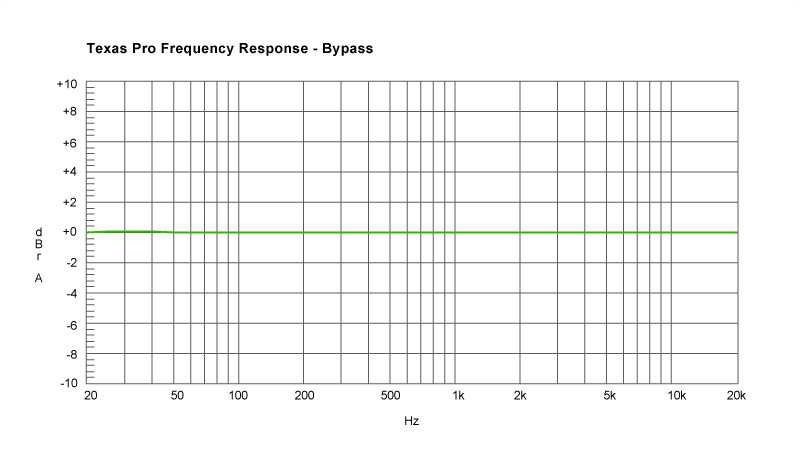

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Class-A Discrete | |
| Frequency response: | Shaped for guitar use | |
| Gain: | Variable from 0dB to +22dB (Boost), Variable from +2dB to +30dB (Overdrive) | |
| Input Impedance: | 220kΩ | |
| Output Impedance: | 1kΩ | |
| Noise Floor: | -85dBu | |
| Maximum Input: | +20dBu | |
| Features | ||
| Input Connectors: | 1/4" input | |
| Output Connectors: | 1/4" output | |
| Extras: | Effects loop: ¼" send and return jacks | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 4.25" x 4.06" x 2" (108mm x 103mm x 50mm) | |
| Weight: | 1.45lb (0.66kg) | |
| Shipping size (L x W x D): | 6.4" x 4.13" x 3" (163mm x 105mm x 76mm) | |
| Shipping weight: | 1.75lb (0.8kg) | |
| Power: | 60mA, 9VDC (center pin negative) | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
