Variable Frequency Divider

Frequency-Specific Signal Processing

The Tossover is a unique 500 series module that pairs with any Radial power rack and enables you to frequency-divide the audio signal path into two stems to process the high and low frequencies separately.

  • Divide signal for frequency specific processing
  • Produce exciting effects by parallel processing
  • Create low-pass, high-pass, and band-pass filters
  • Choice of 12, 18 and 24dB per octave slopes

Combine with a Radial 500 series rack for dual outputs

The Tossover combines a set of low-pass and high-pass filters, each with variable frequency, amplitude, and slope settings. Each filter can be accessed individually, or used in combination for a band-pass effect. When used with a Radial power rack such as the PowerStrip or the Workhorse, the Tossover is doubly useful, as the Omniport output common to these racks allows you to divide one signal into two - opening up the option for parallel processing where the low and high frequencies are processed separately. This enables you to split a bass track and process the low frequency stem using a compressor while processing the high frequencies with an effect like a tube distortion pedal, blending the two stems together later to create new and exciting effects.

Tossover Applications

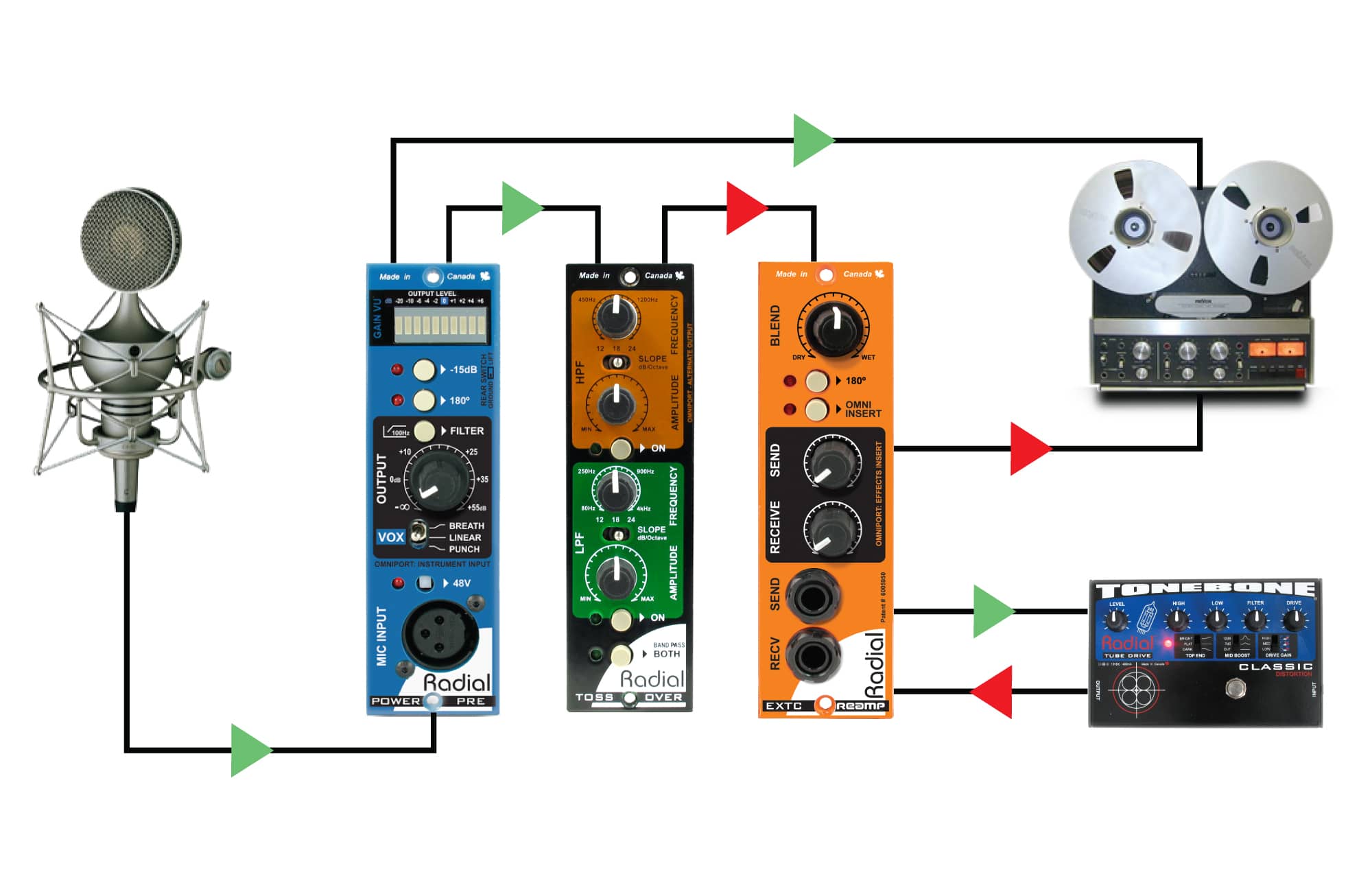

Using the Tossover on a vocal track

Use the Tossover high-pass filter to extract the high end and process it using the EXTC with a Tonebone Classic distortion to add character. Mix the effect with dry signal from the PowerPre as needed.

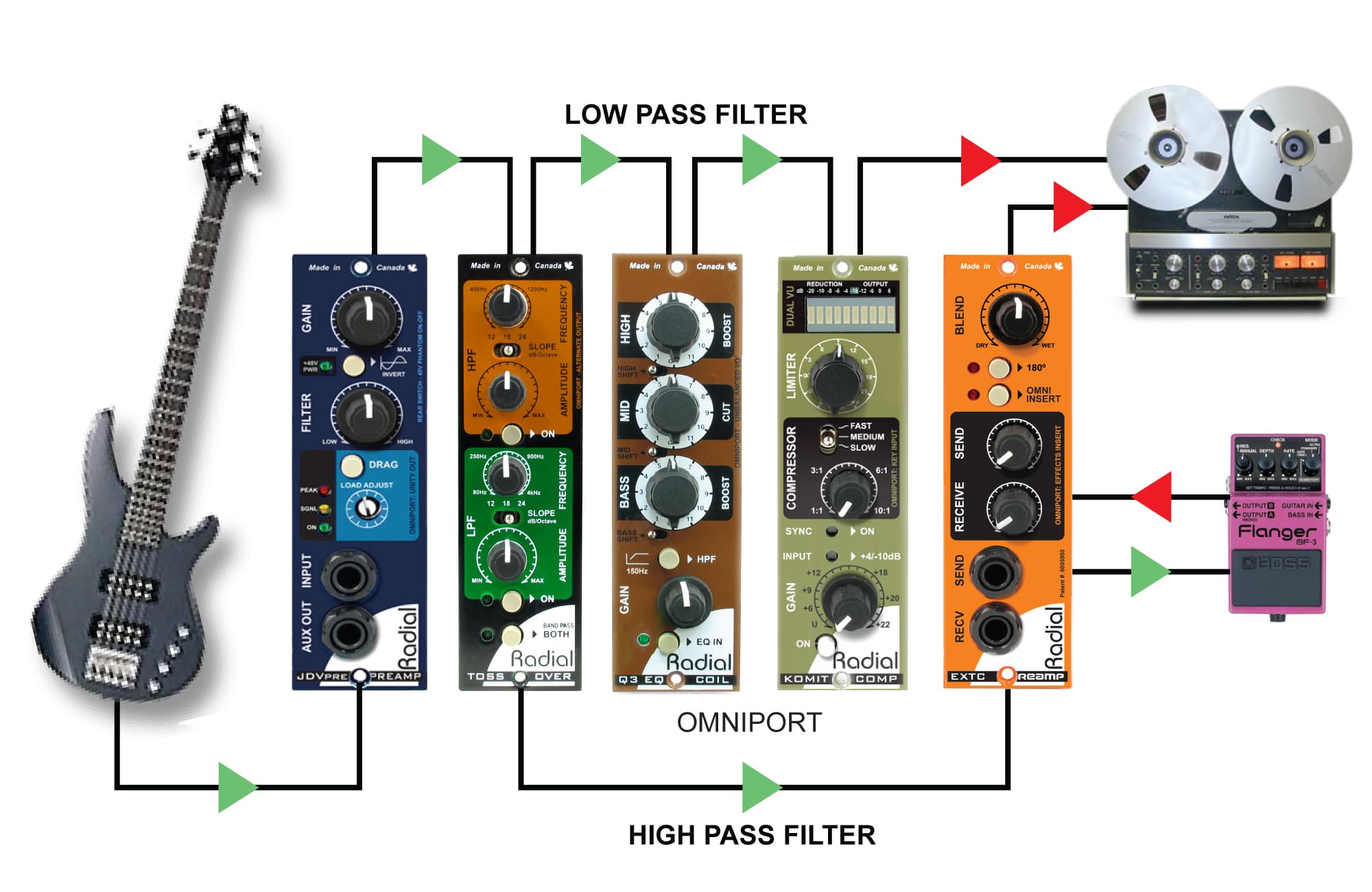

Using the Tossover on a bass guitar

When used inside a Workhorse, the Tossover lets you split the signal so that you can process each stem individually. Add EQ and compression to the low frequencies while flanging the top end separately.

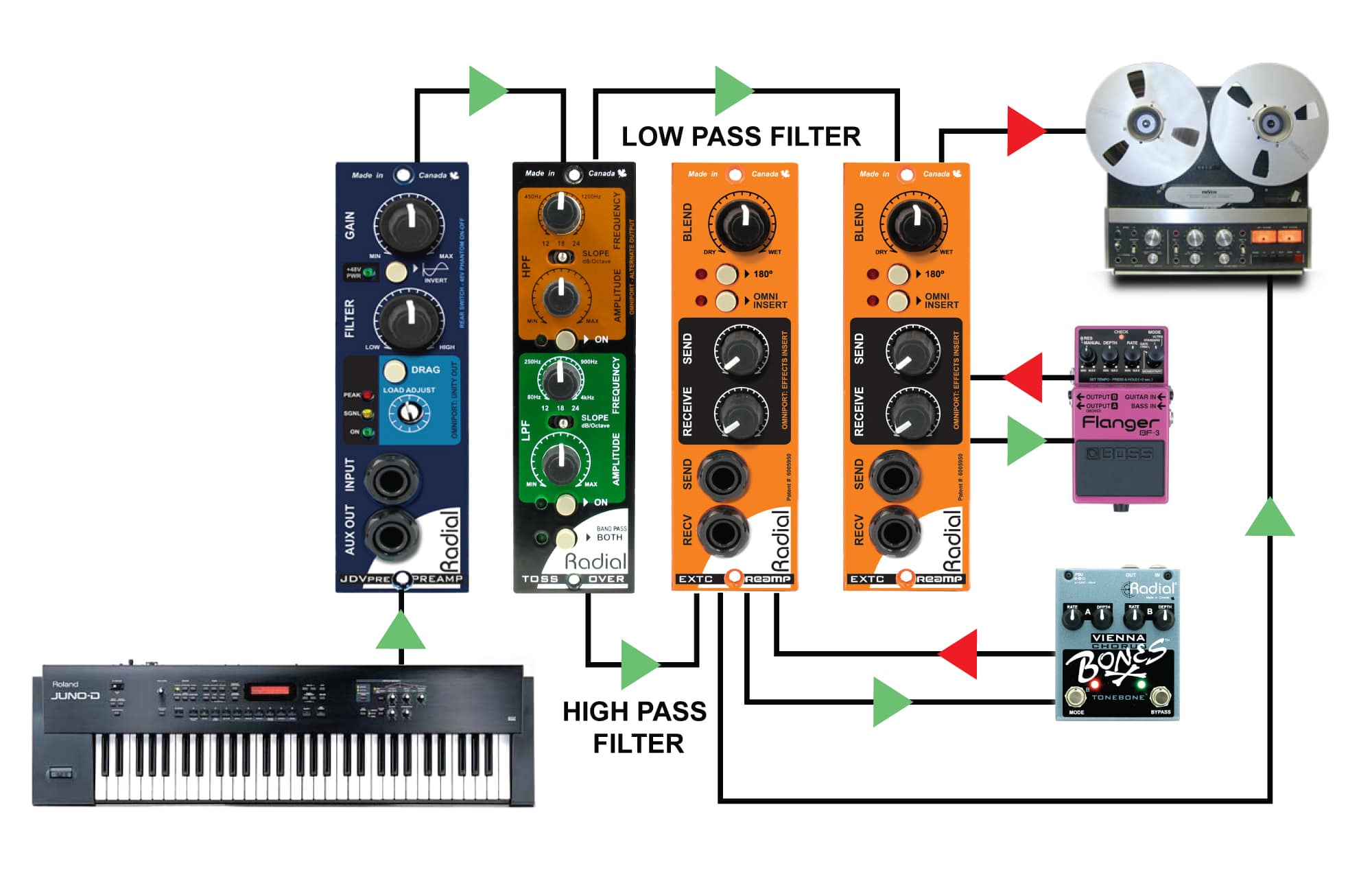

Using the Tossover on a keyboard

Create uber-realistic Leslie effects by sending your favourite Hammond patch into the Tossover and then processing the bottom end with a slow flanger and the top with a chorus pedal.


Tossover Resources

Part no: R700 0164 00
