Twin-City Specifications

The Twin-City ABY is an active switcher that utilizes electronic impulse switching for silent and professional operation on stage. Bright LED indicators provide instant visual feedback and let you know which outputs are active. Drag™ control load correction allows you to optimize the impedance presented to your pickups to recreate the tone of a direct connection from the guitar to the amplifier. Radial’s built-in Class-A buffer allows long cable runs without signal loss, and a ground lift eliminates buzz and hum between amplifiers. The Twin-City is constructed from 14-gauge steel for extreme durability, and is easily powered with standard 9V power supplies.

Audio circuit type: Class-A discrete FET buffer circuit
Frequency response: Tailored for guitar
Clip Level: +9dBu (Input), +9dBu (Output)

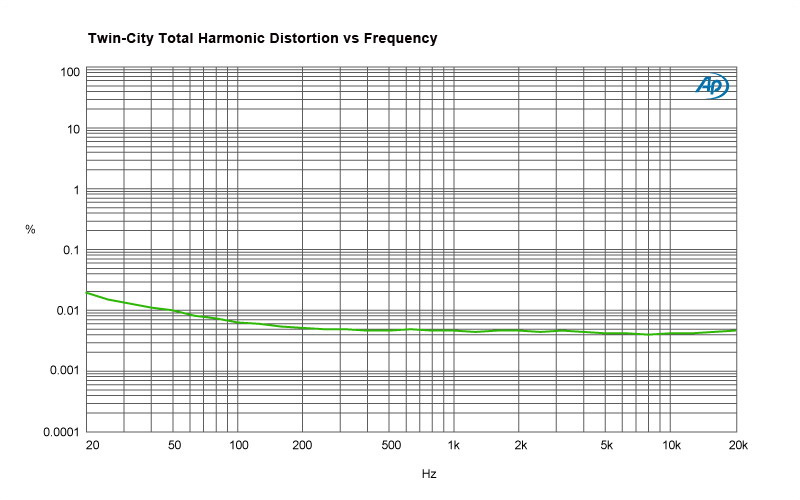

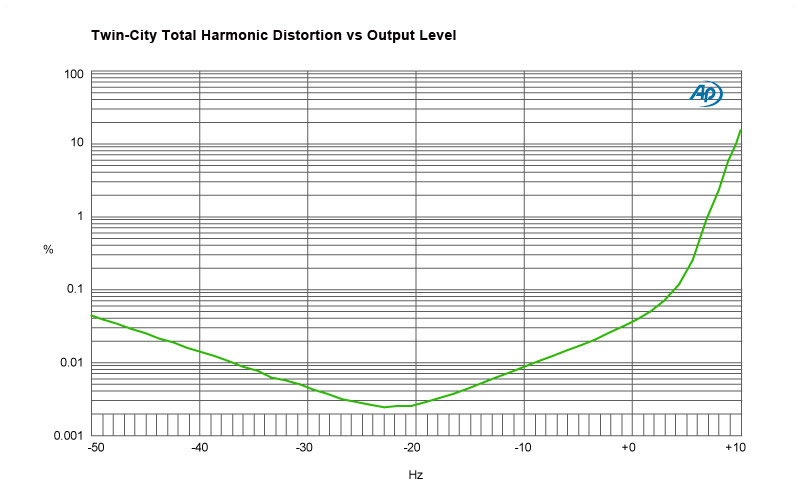

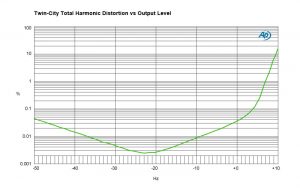

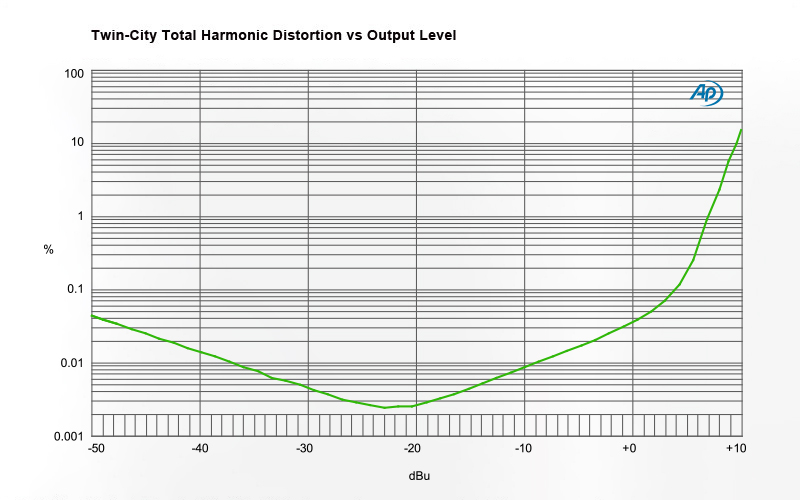

Total harmonic distortion: <0.003% @ 1kHz
Intermodulation Distortion: 0.003%
Input Impedance: Varies with Drag™ Control, 22k to 1Meg Ohm
Output Impedance: 1000 Ohms

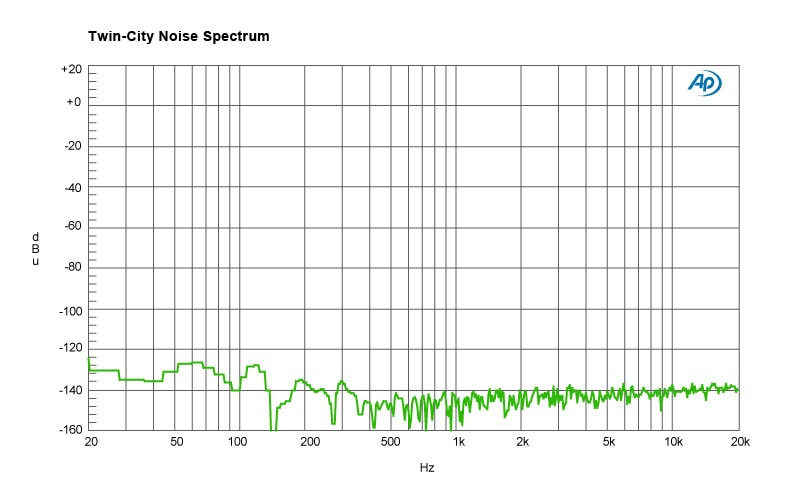

Noise Floor: -90dBu
180° polarity reverse, Drag Control
Construction: 14-gauge steel
Size (L x W x D): 3.5" x 4.4" x 2.17" (89mm x 112mm x 55mm)
Weight: 0.9lb (0.42kg)
Shipping size (L x W x D): 6.25" x 4.5" x 2.5" (158.75mm x 114mm x 63.5mm)
Shipping weight: 3.4lb (1.55kg)
Power: 50mA, 9VDC (center pin negative)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

Twin-City Resources

Part no: R800 7115 00
