X-Amp Specifications
The Radial X-Amp is a high performance active Reamp designed to smoothly interface a pre-recorded guitar signal to a guitar amplifier. Careful attention has been applied to gently roll off the high end so that the brightness of the recorder is softened for a more natural rendering. Designed to reproduce typical guitar levels below -10dBu, the X-Amp delivers remarkable performance with very little distortion or self noise.
Specifications
Block Diagram

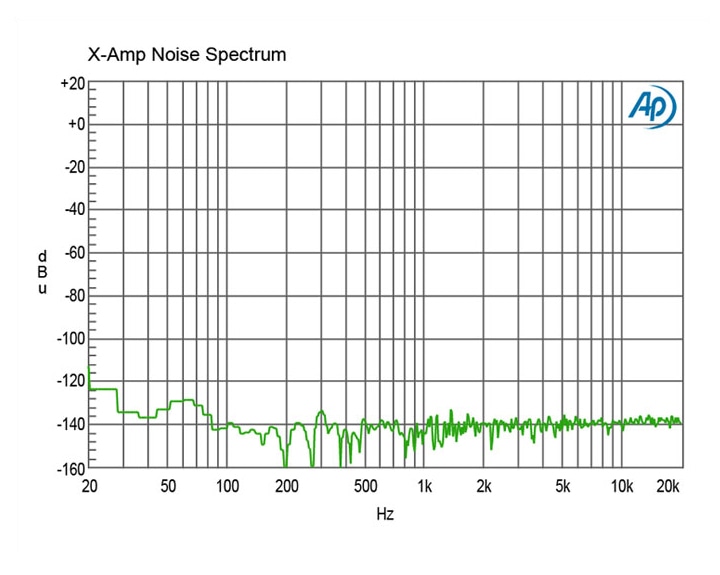

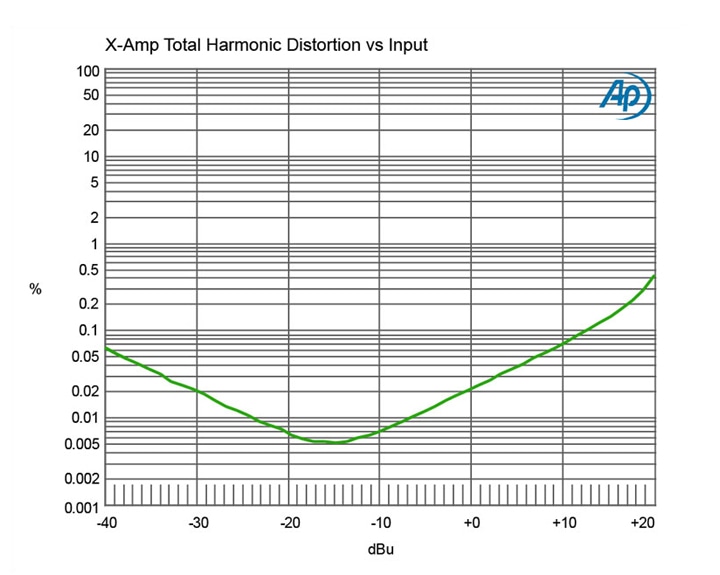

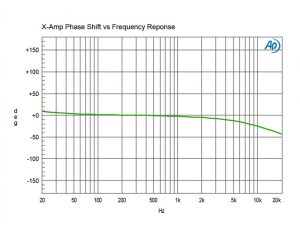

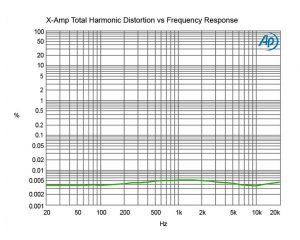

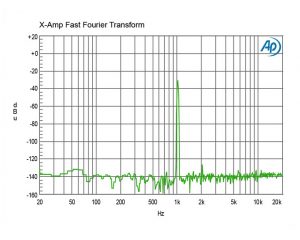

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | 100% discrete class-A | |
| Frequency response: | 20Hz ~ 15kHz (± 1.0dB) | |
| Dynamic range: | 119dB | |
| Total harmonic distortion: | 0.02% @ -15dBu | |
| Intermodulation Distortion: | 0.02% @ -20dBu | |
| Input Impedance: | 600Ω | |
| Noise Floor: | OUT-1 -110dB; OUT-2 -108dBu | |
| Maximum Input: | +22dBu | |
| Features | ||
| 180° polarity reverse, Ground lift, Level Control | ||
| Input Connectors: | XLR | |
| Output Connectors: | 1/4" Isolated and Direct | |
| General | ||
| Construction: | 14 gauge steel chassis & outer shell | |
| Size (L x W x D): | 3.3" x 5.0" x 2" (84 x 127 x 48mm) | |
| Weight: | 1.55lb (720g) | |
| Shipping size (L x W x D): | 5" x 2.75" x 10.75" (127 x 70 x 273mm) | |
| Shipping weight: | 2.6lb (1.18kg) | |
| Power: | +15VDC/400mA adapter included | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
Learn More
X-Amp Resources
Part no: R800 1028 00
