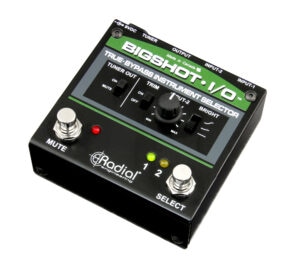

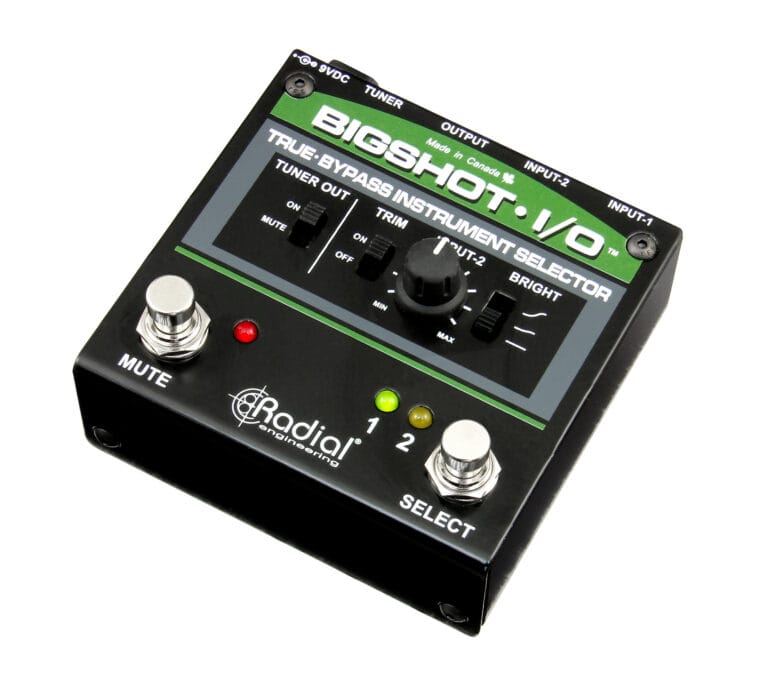

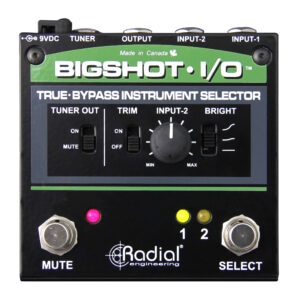

Mute
Footswitch turns the output jack off for silent on-stage tuning through the tuner output.
Tuner
Switch determines whether the tuner output is on all the time or only when mute footswitch is depressed.
Mute LED
Lets you know when mute is activated.
Trim
Bypass switch for the Trim level control.
Input-2 Level
Control lets you reduce the level of the instrument connected to Input-2
Bright
Three position switch counteracts any effects from the INPUT-2 level control circuit and the capacitive filtering effects from long cables.
Select
Footswitch toggles INPUT-1 and 2 to select the desired instrument.

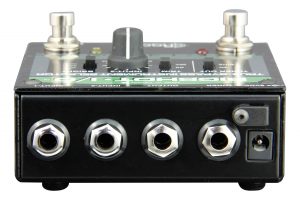

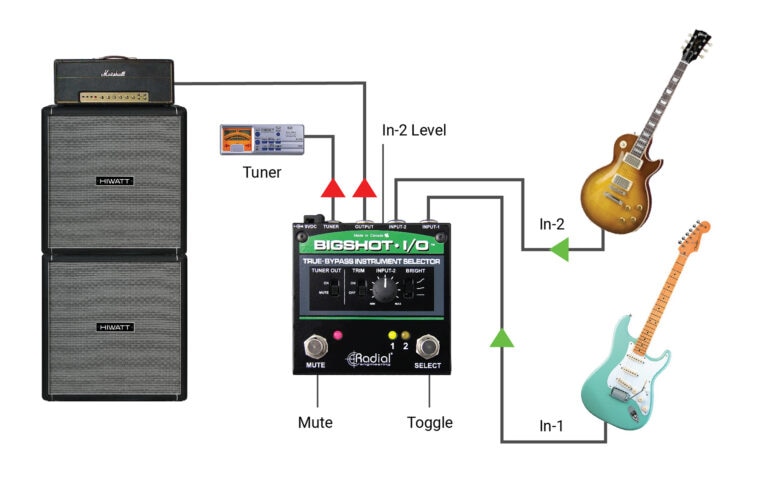

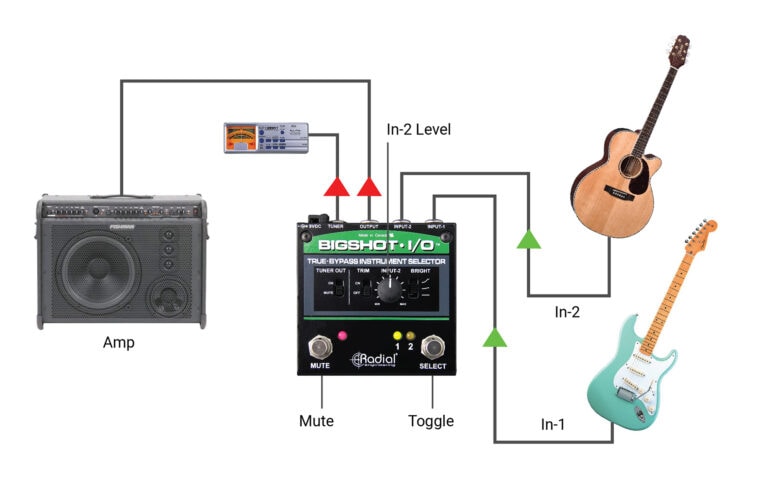

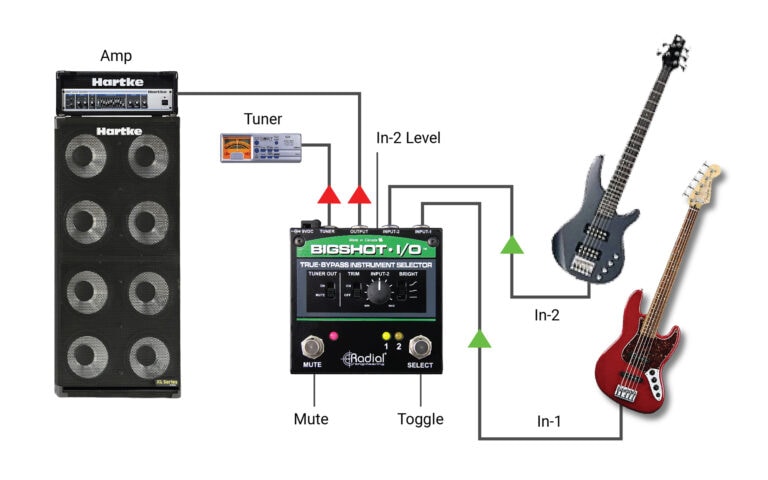

Input 1 & 2
¼” jack for instrument connections.
Output
¼” jack connects to amplifier.
Tuner
¼” jack connects to tuner.
PSU
Connection for 9-12 volt DC (center pin negative)
Extra Durable
Switches with metal outer casing are rated at over 20,000 cycles for added durability.
14-Gauge Steel
Prevents circuit board from being torqued which could lead to part failure.

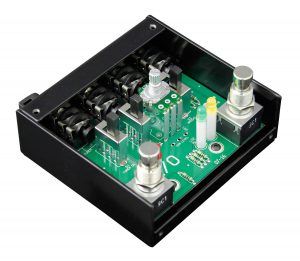

Mil-Spec PCB
Full ground plane for noise free performance. Double sided through hole solder points for durability.
Footswitch
Heavy duty 9 pole footswitches control signal flow and LED indicators.
