Catapult Rack Features

1
2

Ground Lift

Lifts pin-1 on all four of the corresponding XLR connectors to remove hum and buzz caused by ground loops

1

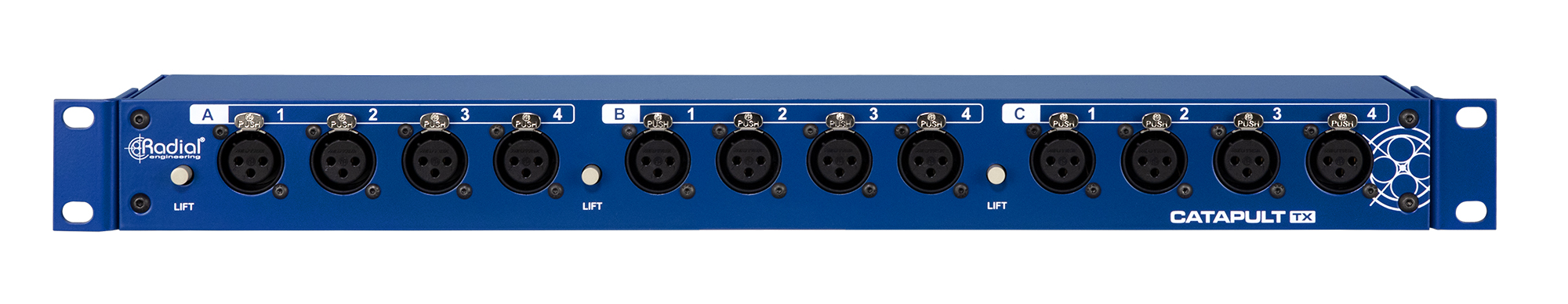

XLR Inputs

Locking XLRs are provided in banks of four, each bank corresponds to a pair of rear panel RJ45 connectors to transmit analog audio over Cat 5 cabling.

2
1
2

Ground Lift

Lifts pin-1 on all four of the corresponding XLR connectors to remove hum and buzz caused by ground loops

1

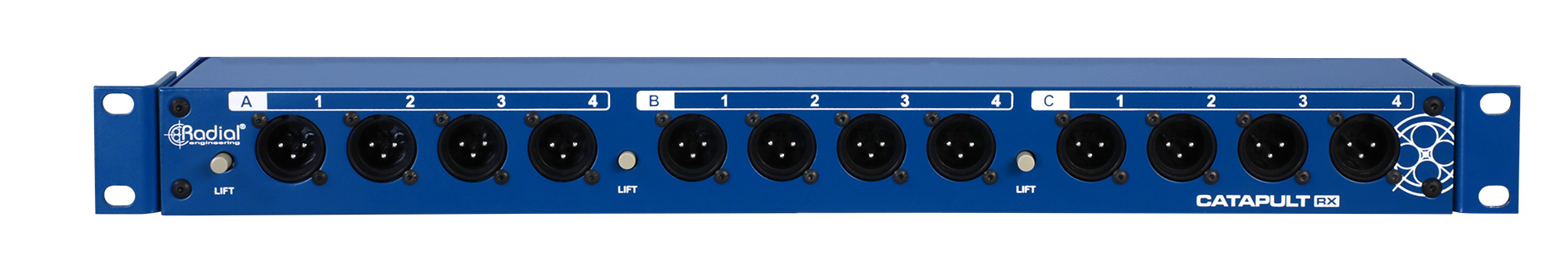

XLR Outputs

Locking XLRs are provided in banks of four, each bank corresponds to a rear panel RJ45 connector to receive analog audio over a Cat 5 cable.

2
1
2

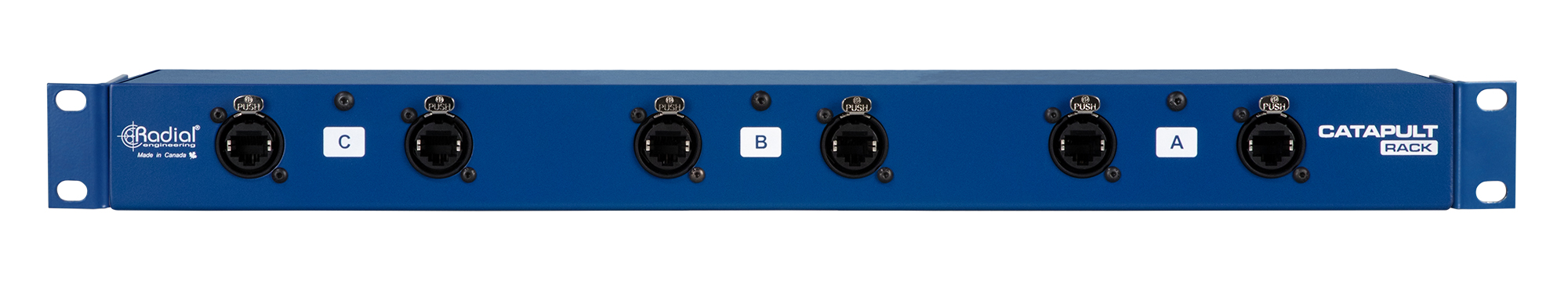

RJ45 Input/Output & Thru

Standard Ethernet connections for feeding four channels of audio to another Catapult module. Both connectors are wired in parallel with the front panel XLRs. Rugged Neutrik etherCON jacks provide a robust connection for live touring use

1

Reversible Rack Ears

Can be placed on either side of the Catapult Rack, allowing for the XLRs or the RJ45 connectors to face outwards for added flexibility

2

Catapult Rack Resources

  • Model:
  • TX
  • RX
  • Part No:
  • R800 8039 00
  • R800 8040 00
