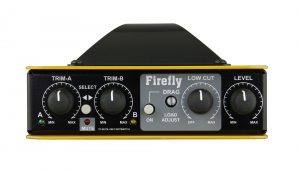

Trim Controls
Input level controls used to match the gain between the two instruments.
A/B Select
Selects the active input for fast instrument changes. LED indicates the active input.
Drag
Used to retain the natural feel of the instrument by adjusting the load for passive pickups.
Low Cut
Variable filter rolls off low frequency resonance that can cause feedback or muddy up the sound.
Level
Level control for the balanced XLR output. Variable from mic to line-level.

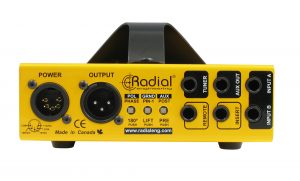

Power
Locking 5-pin XLR power connection with +/-16 volts that is internaly stepped up to 48V.
Output
Balanced XLR output connects to the PA and recording system.
180°
Inverts the signal polarity by flipping pins-2 and pin-3 on the XLR output.
Ground Lift
Disconnects pin-1 at the XLR out. Helps reduce noise caused by ground loops.
Thru / Pre
Assigns the tube and effects insert loop to the stage amp thru output.
Tuner
High-Z always-on output used to connect an electronic tuner.
Thru
Hi-Z thru-put for stage amp. Configurable ‘pre or post’ tube and insert.
Inputs A & B
Hi-Z thru-put for stage amp. Configurable ‘pre or post’ tube and insert.
Insert
Buffered effects loop uses an TRS ¼” insert cable to interface pedal and rack effects.
Aux Isolate / Direct
Sets ¼” aux out to direct or transformer isolated to eliminate ground loop noise.
