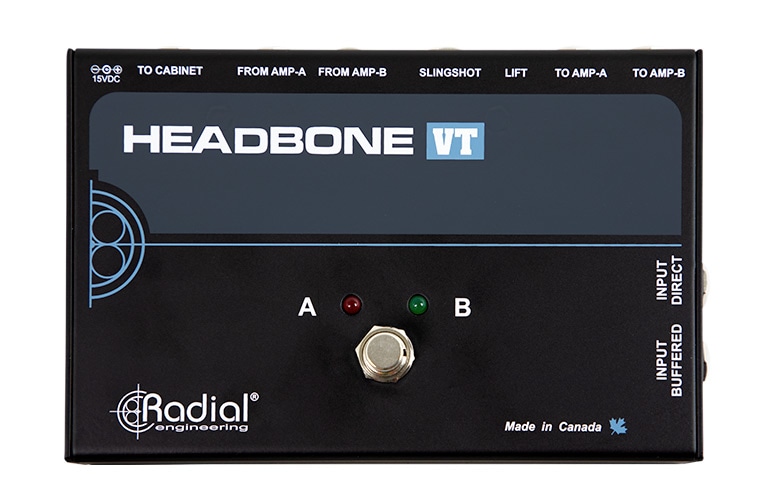

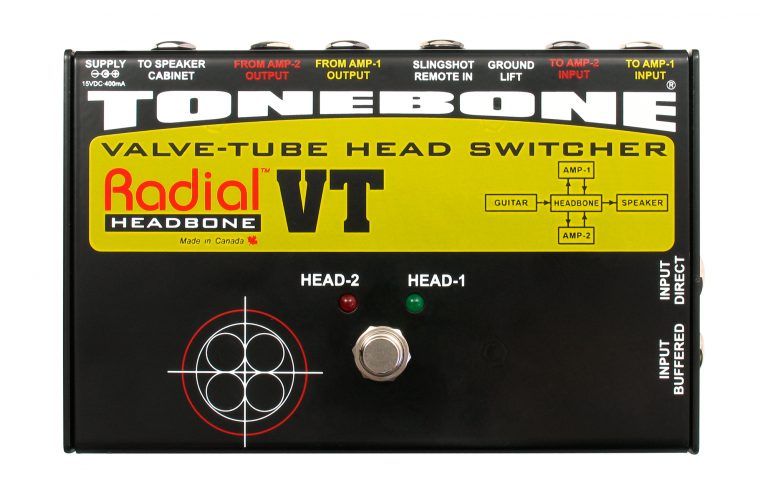

Jack for high power 400MA supply (provided) for greater headroom.
To Speaker Cabinet
1/4” jack connects from Headbone to speaker.
From Amp-1 / 2 Output
1/4" jacks connect from the two amplifier heads.
Head-1 & 2
From LEDs provide visual indicator of currently selected amplifier.
Heavy duty high-cycle switch.
1/4" jack for SlingShot remote switching.
Switch lifts ground to help eliminate hum & buzz caused by ground loops.
To Amp 1 & 2
1/4” jacks connect the Headbone to the amplifier guitar inputs.
1/4" jack bypasses the input buffer for true bypass connectivity.
1/4" jack connects guitar to the Headbone and amplifiers.
