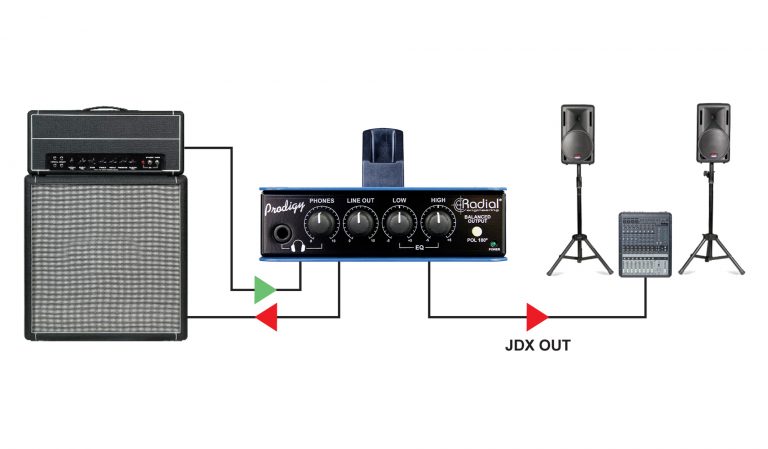

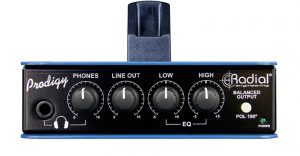

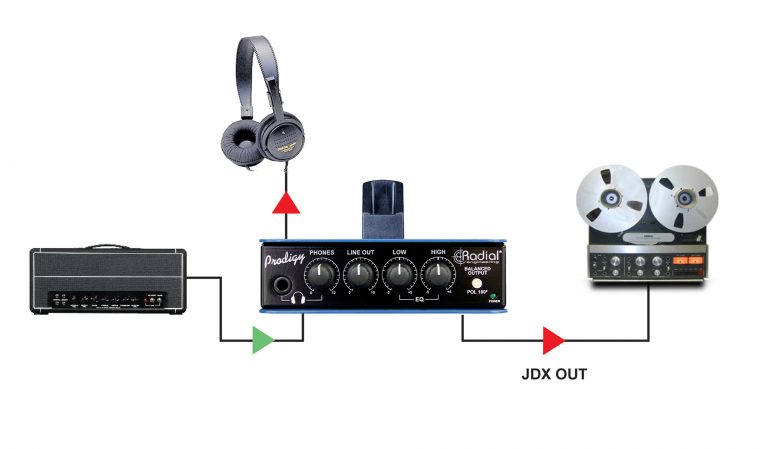

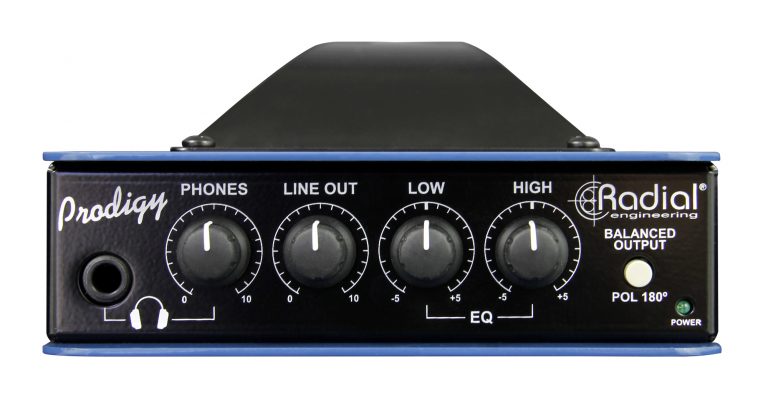

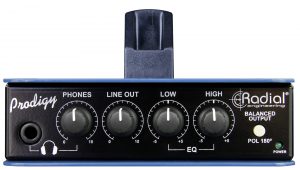

Headphone
1/4” TRS mono summed output for headphones lets you quietly practice while your amp is being driven hard.
Headphone Volume
Variable control used to adjust headphone output level.
Line Out
Variable control to adjust the level going to the unbalanced 1/4” JDX outputs.
EQ
Lets you fine tune the tone of the JDX output to optimize your wedge monitors or in-ears.
POL 180°
Inverts phase by toggling pin-2 and pin-3 on the XLR output to help phase-align the JDX direct out with a microphone.

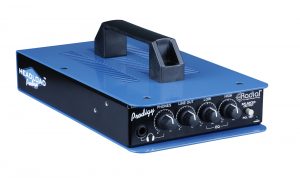

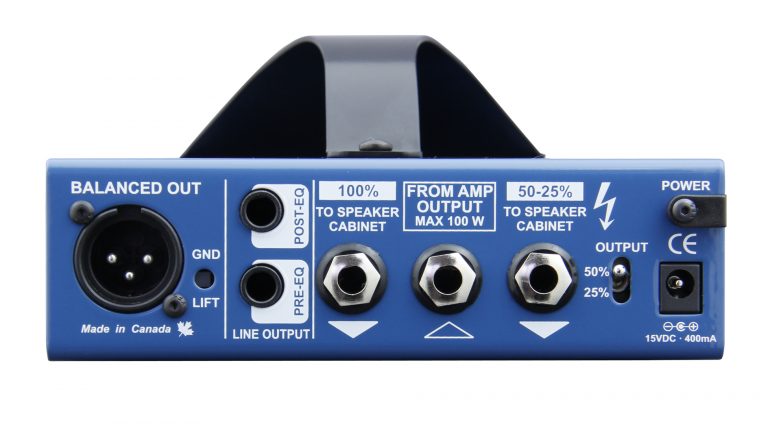

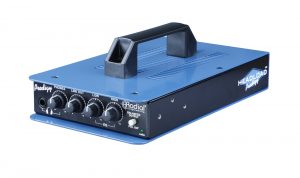

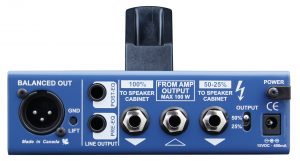

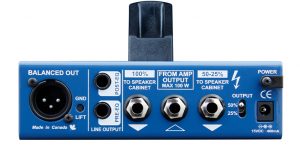

Balanced Out
Lo-Z balanced mic level output used to feed the PA system, monitors or recorder.
GND Lift
Lifts pin-1 on the XLR output to help eliminate hum and buzz caused by ground loops.
Post-EQ
Presents a post JDX / post EQ output to feed a second direct box for recording or an external effects processor.
Pre-EQ
Pre-JDX direct output sends the unaffected direct signal from your amp to feed another stage amp or effects.
100% Output
This ¼” output delivers the full power of your amp to the speaker cabinet while employing the JDX output as a direct box.
From Amp
Connect your amp’s speaker output to this ¼” input on the Prodigy.
50% - 25% Output
This ¼” output is used to attenuate the volume for quiet on-stage performance.
Output Select
Choose between 50% and 25% output level to the speaker cabinet.
Power
Connection for external 15VDC 400mA power supply.
Load Resistors
Custom made cement-encrusted ceramic-coated resisters dissipate up to 100 watts and silently convert to heat.
Transformer Isolation
Introduces a reactive load while isolating the Prodigy’s audio path from the guitar amp to help reduce hum and buzz caused by ground loops.

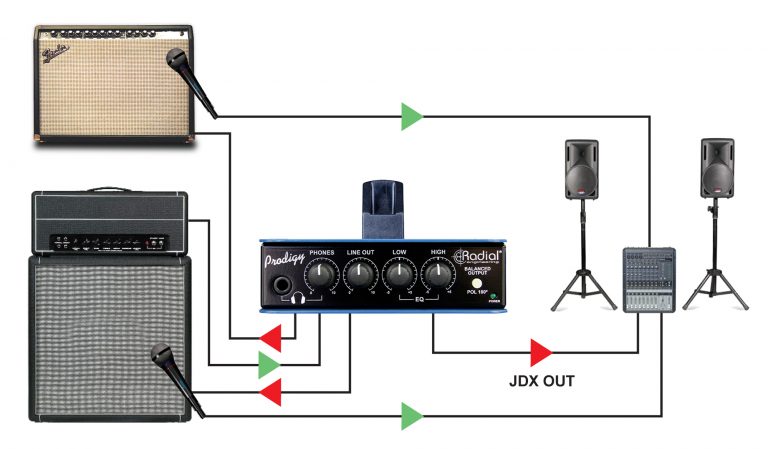

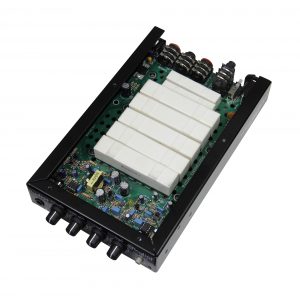

Mil-Spec PCB
Full ground plane for noise-free performance, double-sided for durability.
100% Discrete
Class-A audio signal path for most natural tone and optimal signal transfer.
