The Headload Prodigy is a device that is intended to simulate the sound of a guitar cabinet and allow the user to reduce the speaker output to 50% or 25% on stage or perform without noise in the studio. That said, the following specifications do not provide any truly significant information as it is completely dependent on the amplifier and speaker cabinet in use. As such, we ask you to please review with the awareness that these measurements are truly subjective in nature.
Specifications
Block Diagram

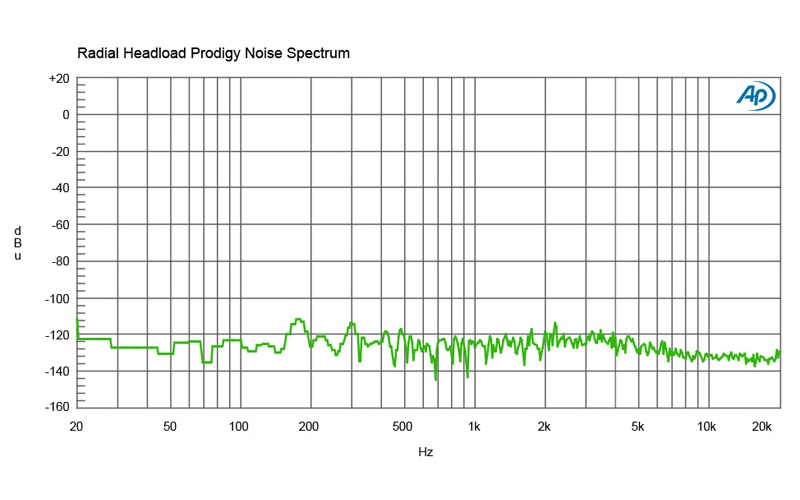

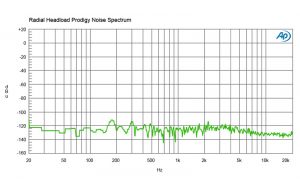

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive attenuation circuit with active equalization | |
| Frequency response: | Shaped to emulate a classic guitar cabinet | |
| Gain: | -30dB/-42dB | |
| Total harmonic distortion: | 0.05% | |
| Intermodulation Distortion: | 0.05% | |
| Output Impedance: | 8 Ω speaker load | |
| Noise Floor: | -106dBu | |
| Maximum Input: | 100 watts continuous | |
| Maximum Output: | 100%, 50%, 25%, 0% | |
| Features | ||
| 180° polarity reverse, Ground lift, Level Control, Speaker filter, Headphone, EQ Control | ||
| Input Connectors: | 1/4" from amp | |
| Output Connectors: | 1/4" to amp, pre/post JDX. XLR JDX | |
| Extras: | Headphone output | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 10.25" x 5.9" x 3.75" (26cm x 15cm x 9.5cm) | |
| Weight: | 5.3lbs (2.4kg) | |
| Shipping size (L x W x D): | 14.5" x 8.75" x 4.75" (36.8cm x 22.2cm x 12.1cm) | |
| Shipping weight: | 6.5lbs (2.9kg) | |
| Power: | Radial +/-15V 400mA power supply | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

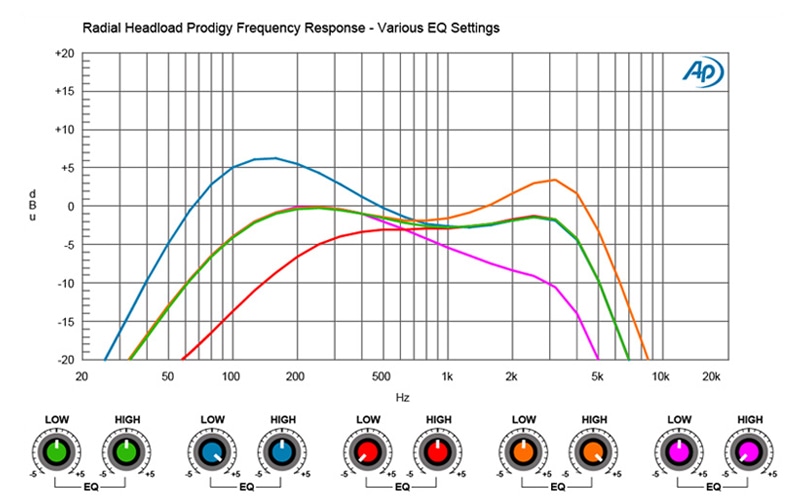

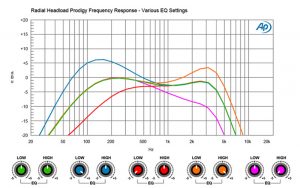

Frequency Response
