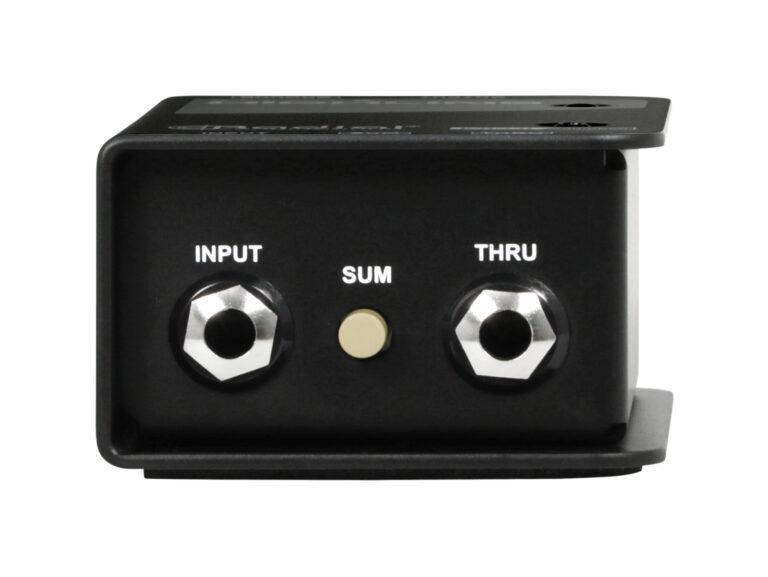

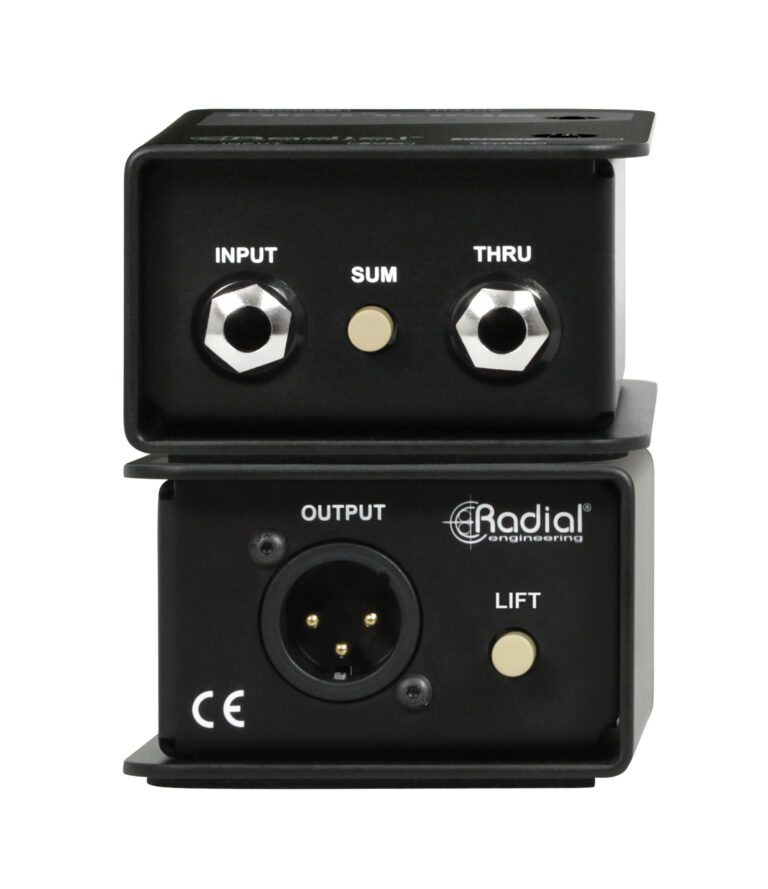

Input:
¼” input jack to connect to the balanced or unbalanced outputs from amp simulators & guitar pedals.
1

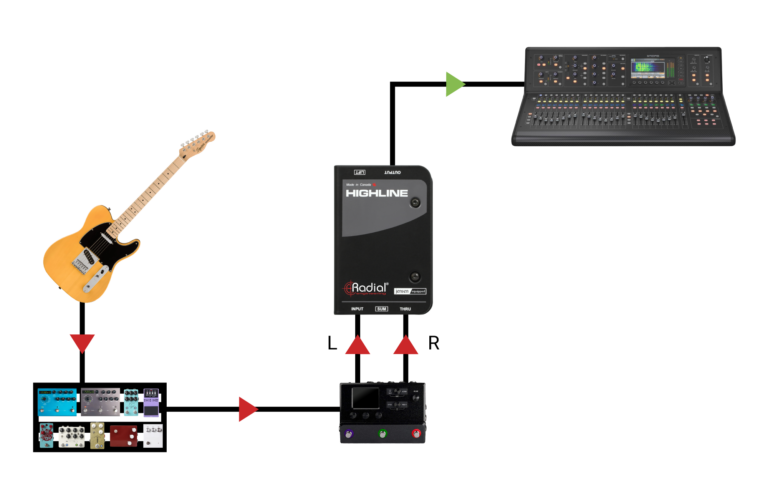

Sum:
Turns the Input and Thru jacks into a passive mixer to sum stereo sources down to mono.
2

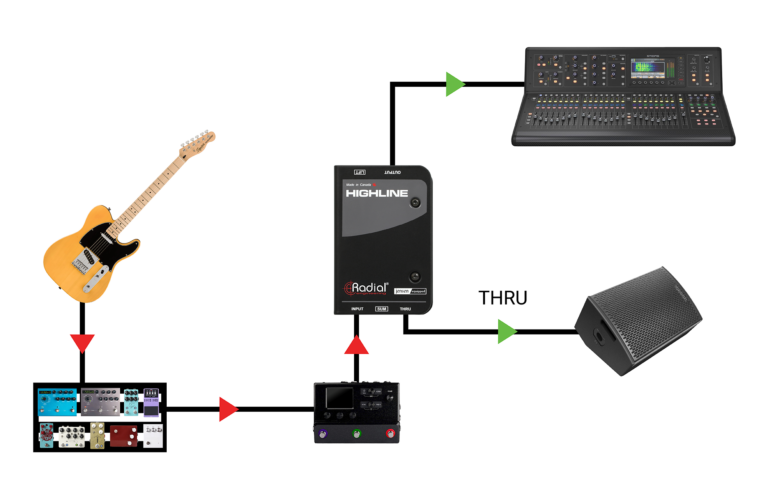

Thru:
¼” output to feed a stage amplifier. Can also be used as a second input if using a stereo source device.
3

1
2

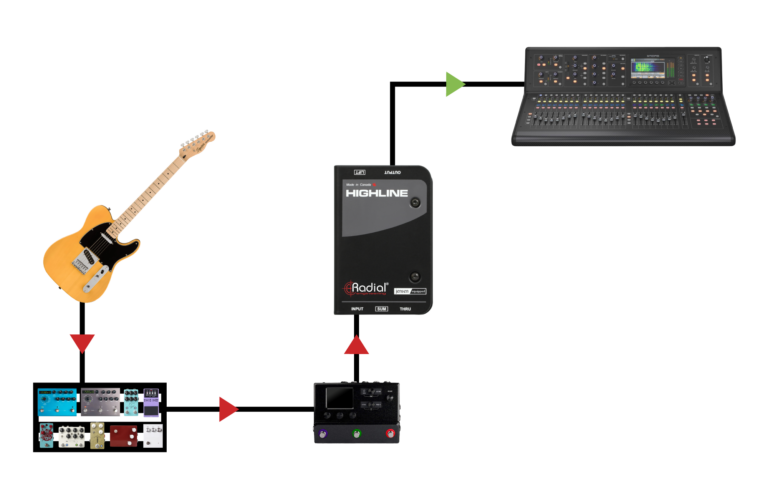

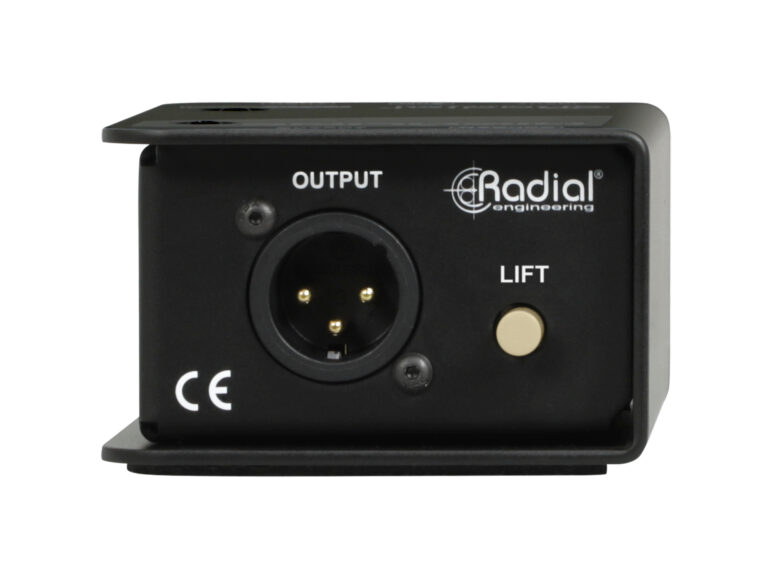

Output:
XLR output provides a balanced & isolated signal for feeding the input of a mixer.
1
Lift:
Ground lift switch eliminates hum and buzz from ground loops.
2
