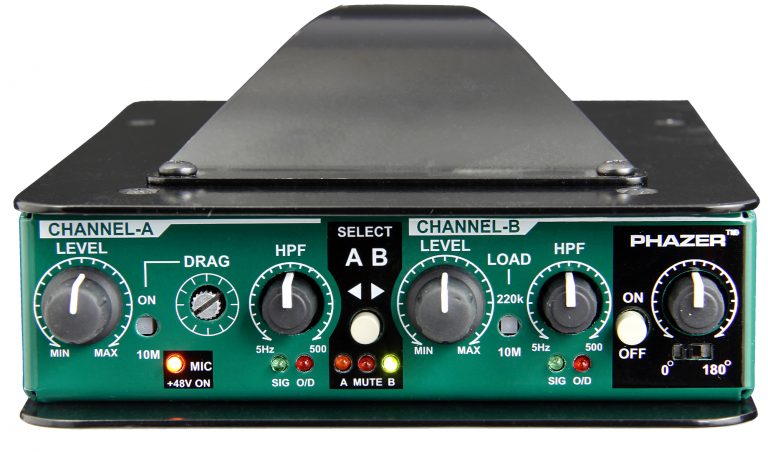

Level A
Fully variable potentiometer, used to set the input sensitivity for channel-A.
Drag Control
Switches input impedance from 10 meg Ω for piezos to DRAG control for magnetic pickups.
48V
LED indicator lets you know 48V phantom power is activated.
HPF
High Pass Filter eliminates excessive low frequency mud that can cause resonance and acoustic feedback on stage.
A/B
Channel selector switch, toggles between A and B inputs with LED status indicators.
Load
Switches input impedance from 10 meg Ω for piezo transducers to 220k Ω for magnetic pickups.
SIG/OVD
LEDs show signal presence and if you are exceeding the maximum input level.
Phazer
Adjusts the relative phase between channel A and B to time align fundamentals for a more natural sound.

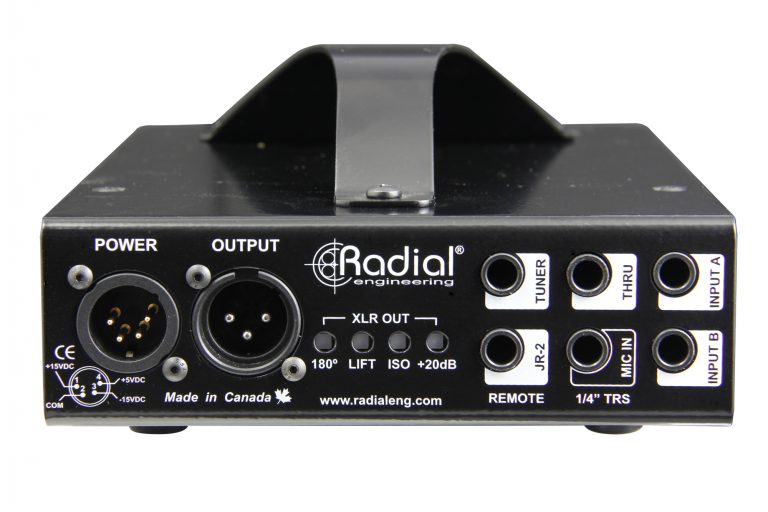

Power
Locking 4-pin XLR power connection for external power supply.
Output
Balanced XLR connects to the PA and recording system.
180°
Inverts the signal polarity by flipping pins-2 and pin-3 on the XLR output.
Ground Lift
Disconnects pin-1 at the XLR out. Helps reduce noise caused by ground loops.
Isolation
Introduces an isolation transformer into the XLR signal path to help eliminate hum and buzz caused by ground loops.
+20dB
Extra high output for direct recording.
Tuner Out
Hi-Z always-on ¼” output used to connect tuner.
Thru
Unbalanced ¼” thru-put used to feed the stage amp.
1/4" Inputs
Unbalanced ¼” input jacks used to connect instruments to the JDV.
JR-2
Connection point for the optional JR-2 remote footswitch.
Mic In
Balanced ¼” TRS input for condensor or dynamic microphone.

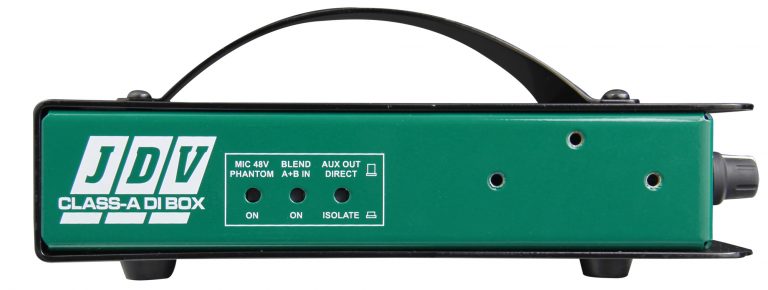

Mic 48V Phantom
Turns on the 48V phantom power at the MIC IN.
Blend A+B in
Combines input-A with input-B and lets you mix the two sources using the front panel level controls.
Aux Out/Direct
Lets you introduce an isolation transformer into the stage amp output signal path to reduce hum and buzz caused by ground loops.
