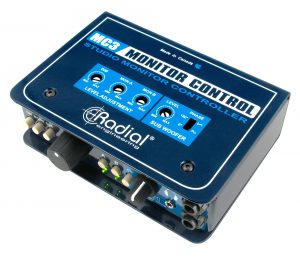

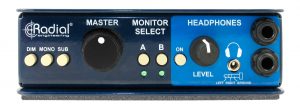

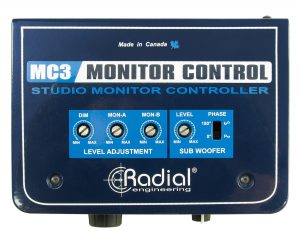

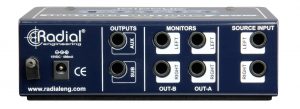

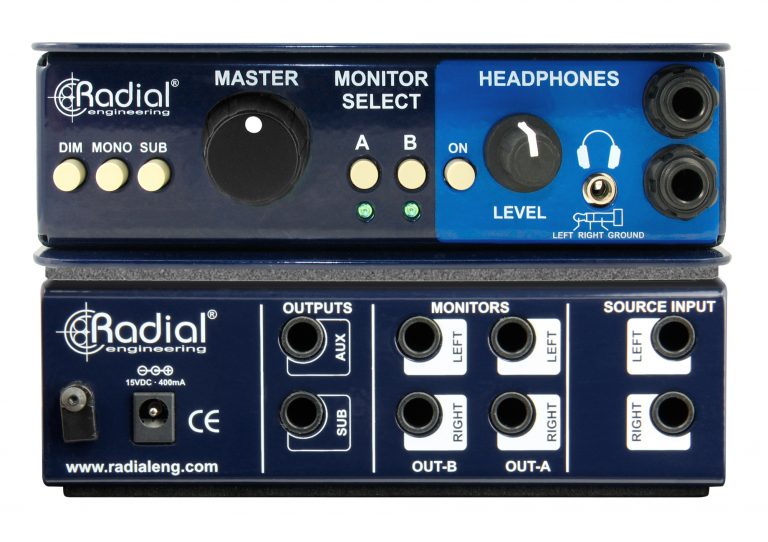

Specifications

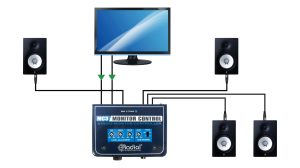

Block Diagram

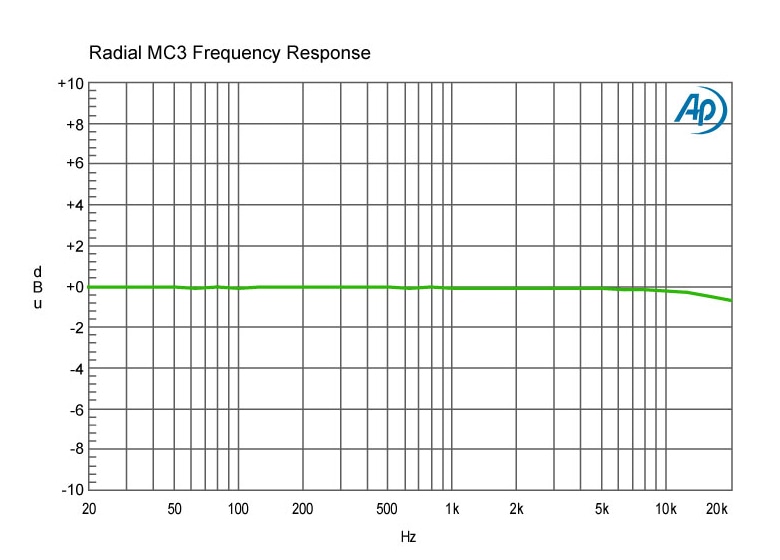

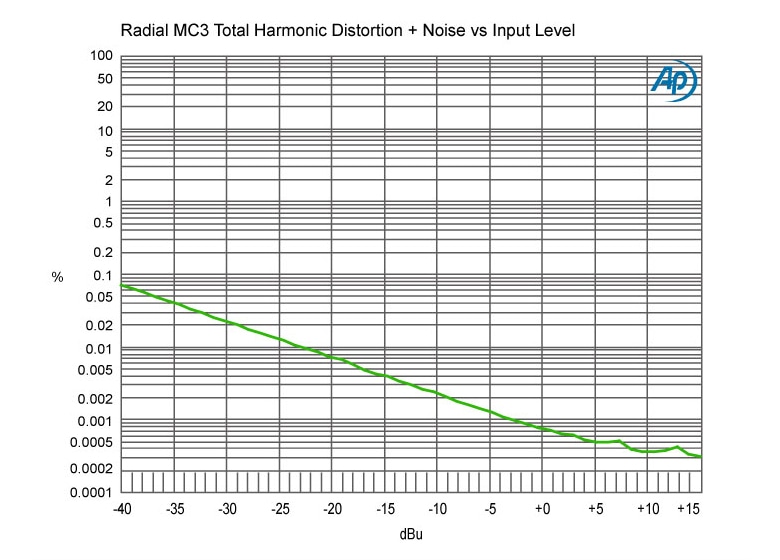

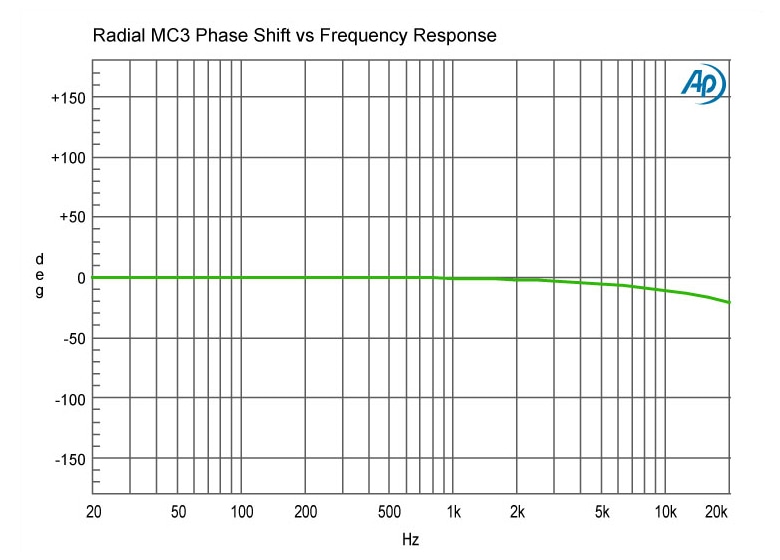

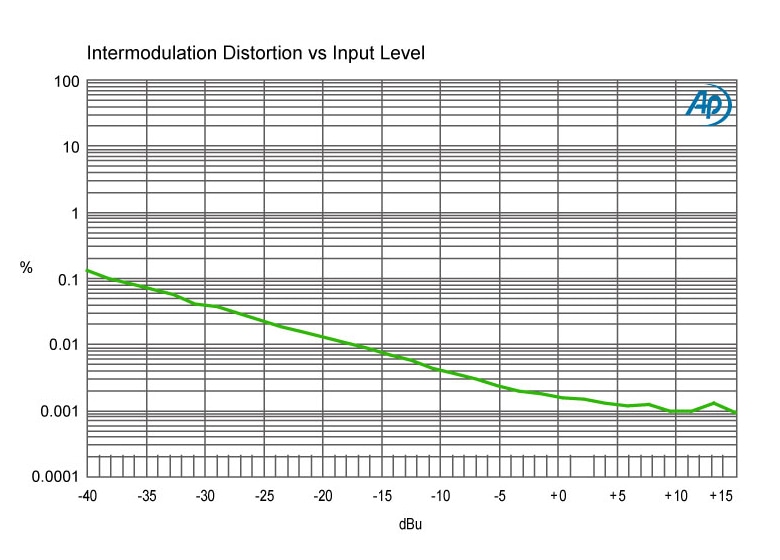

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive stereo signal path with active sub & HP | |
| Frequency response: | DC ~ 20kHz (+0dB/-1dB) | |
| Dynamic range: | 114dB | |
| Total harmonic distortion: | 0.001% @ 1kHz/0dBu output | |
| Intermodulation Distortion: | 0.001% @ 1kHz/0dB output | |
| Input Impedance: | 4.4k Ohms balanced / 2.2k Ohms unbalanced | |
| Output Impedance: | Varies with level adjustment | |
| Common Mode Rejection Ratio: | -51dB @ 55Hz | |
| Noise Floor: | Stereo: -108dBu; Sub: -95dBu; Headphone: -87dBu | |
| Maximum Input: | +14dBu | |
| Features | ||
| Input Connectors: | 2 1/4" TRS inputs | |
| Output Connectors: | Four 1/4" TRS monitor outputs, Aux and Mono subwoofer outputs, Two 1/4" headphone jacks, 1/8" TRS headphone connector | |
| Extras: | Trim level control for DIM, Mon-A, Mon-B and Sub outputs, Variable Dim attenuation up to -72dB | |
| General | ||
| Construction: | 14-gauge steel chassis & outer shell | |
| Size (L x W x D): | 3.3" x 5.0" x 2" (84 x 127 x 48mm) | |
| Weight: | 1.32lb (0.6kg) | |
| Shipping size (L x W x D): | 4.75" x 2.5" x 10.75" (121 x 64 x 273mm) | |
| Shipping weight: | 3lb (1.3kg) | |
| Power: | +15VDC/400mA adapter included / 110V | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

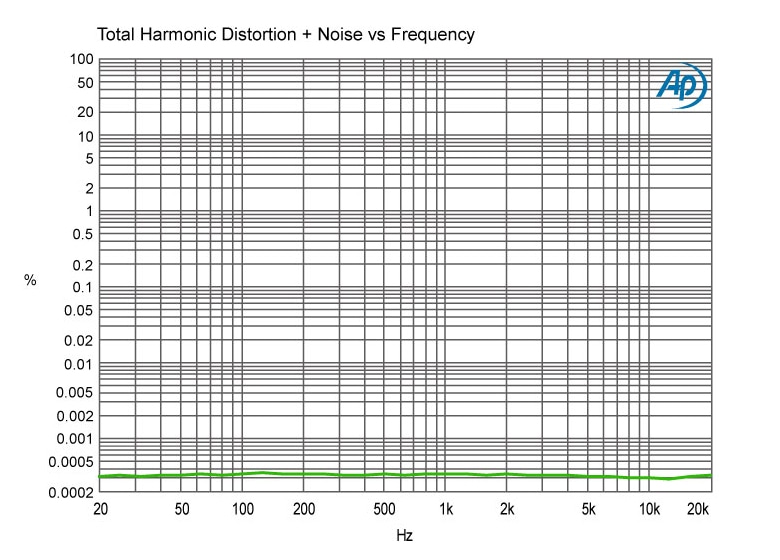

What do these graphs mean? Learn what to look for and why it matters.
