Phazer Specifications
Specifications

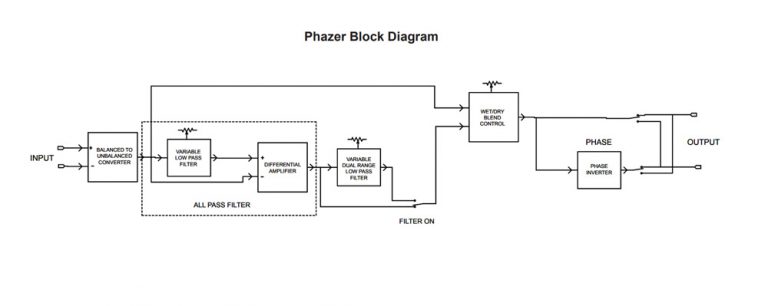

Block Diagram

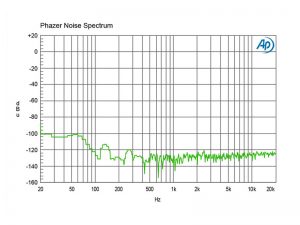

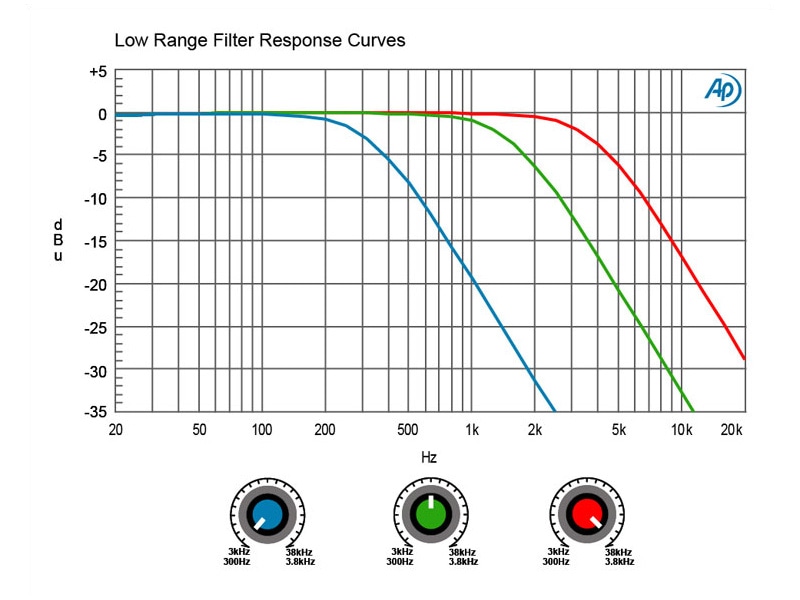

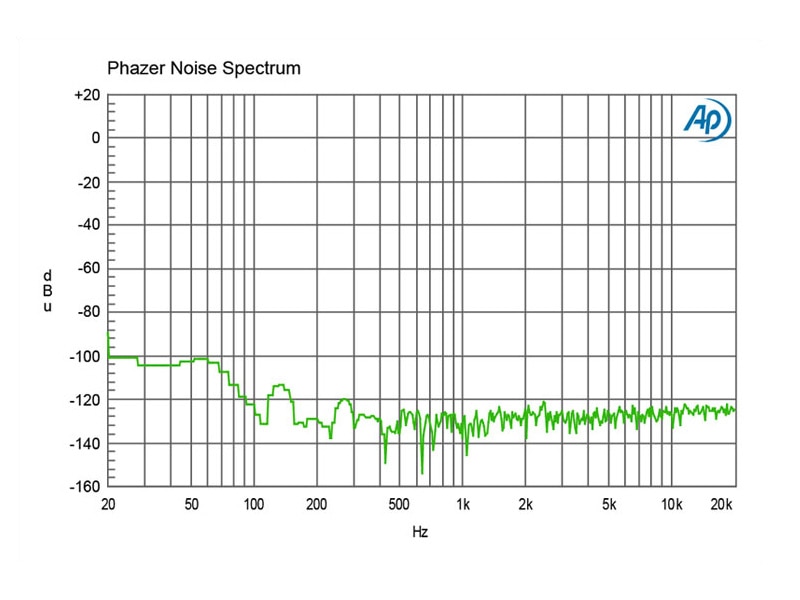

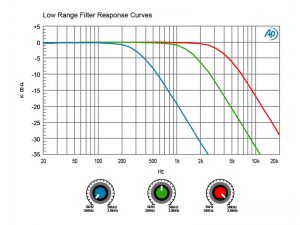

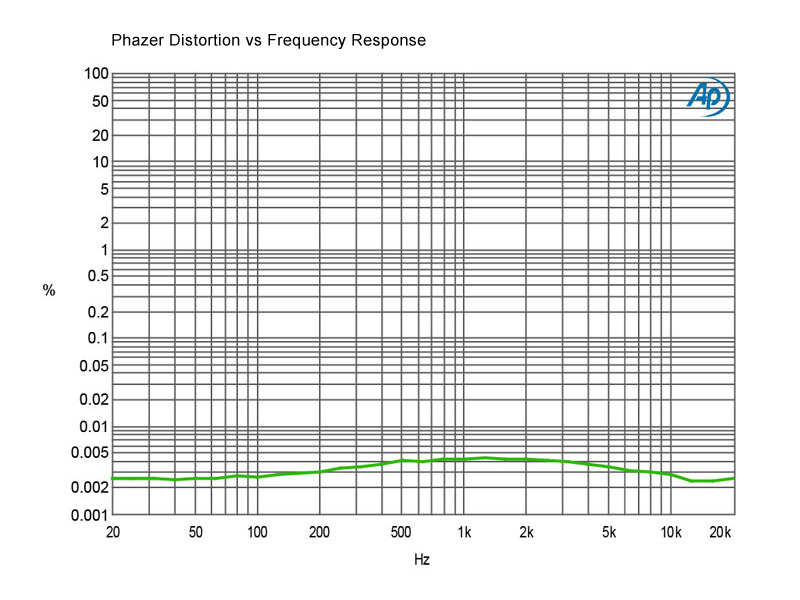

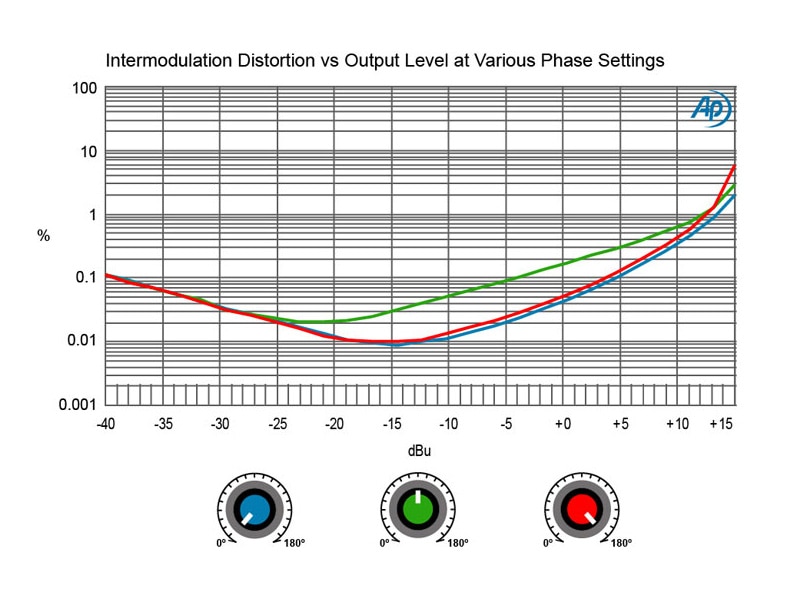

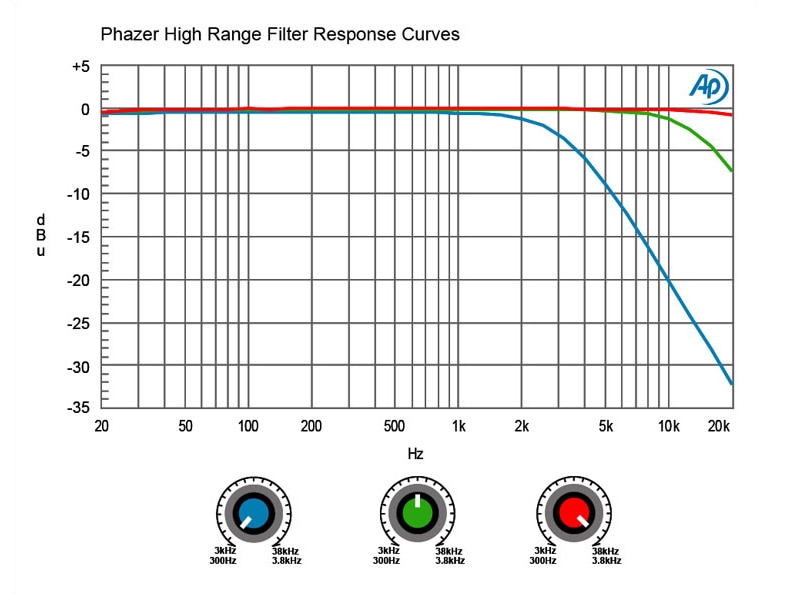

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Active analog phase adustment | |
| Number of channels: | Mono | |
| Frequency response: | 20Hz ~ 20KHz (± 0.5dB) | |
| Dynamic range: | 94dB | |
| Input Impedance: | 10k Ohms, balanced | |
| Output Impedance: | 2k Ohms, balanced | |
| Maximum Input: | +11.5dBu @ 1kHz, 1% THD+N | |
| Features | ||
| Ground lift, LPF | ||

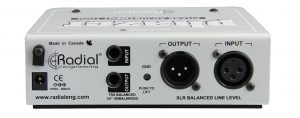

| Input Connectors: | XLR input, ¼" TRS input | |
| Output Connectors: | XLR output, ¼" TRS output | |
| Extras: | Phase Reverse | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 4.5" x 2" x 6" (114 x 57 x 147mm) | |
| Weight: | 2.8 lb (1.3kg) | |
| Shipping size (L x W x D): | 4.75" x 2.5" x 10.75" (121 x 64 x 273mm) | |
| Shipping weight: | 3.05 lb ( 1.4kg) | |
| Power: | +15V DC/400mA power supply included | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

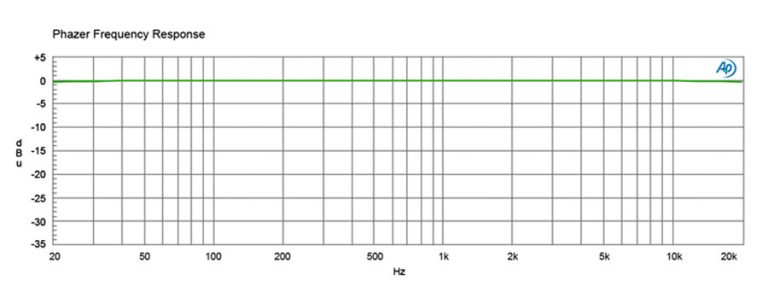

Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
Learn More
