PZ-DI Specifications
Specifications

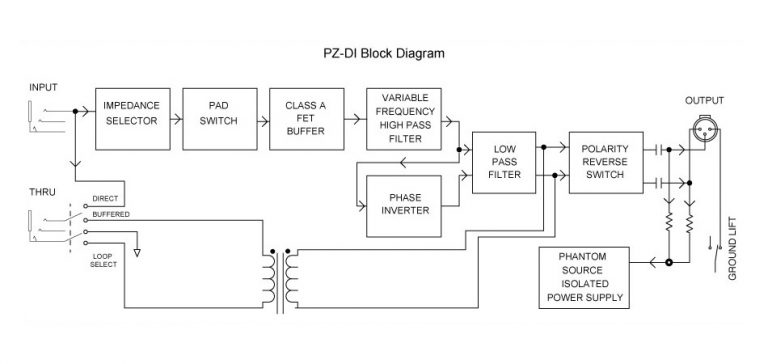

Block Diagram

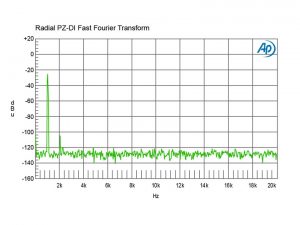

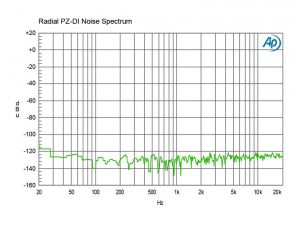

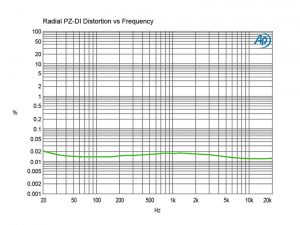

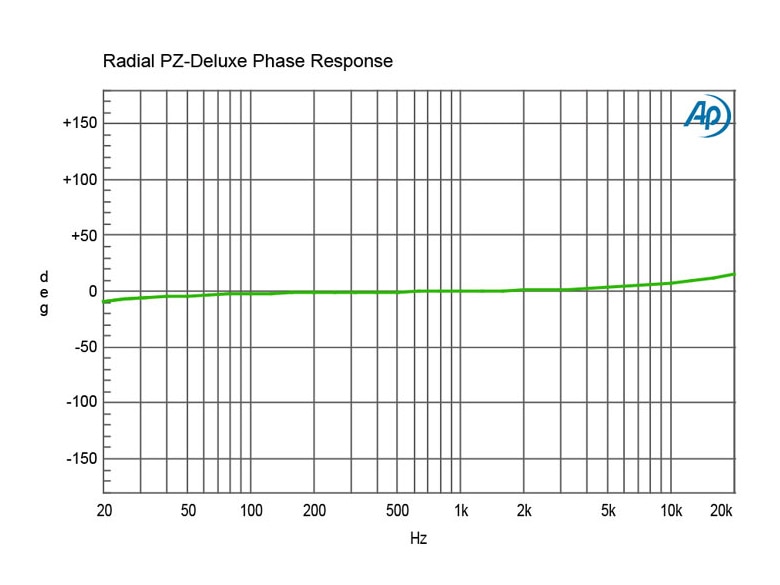

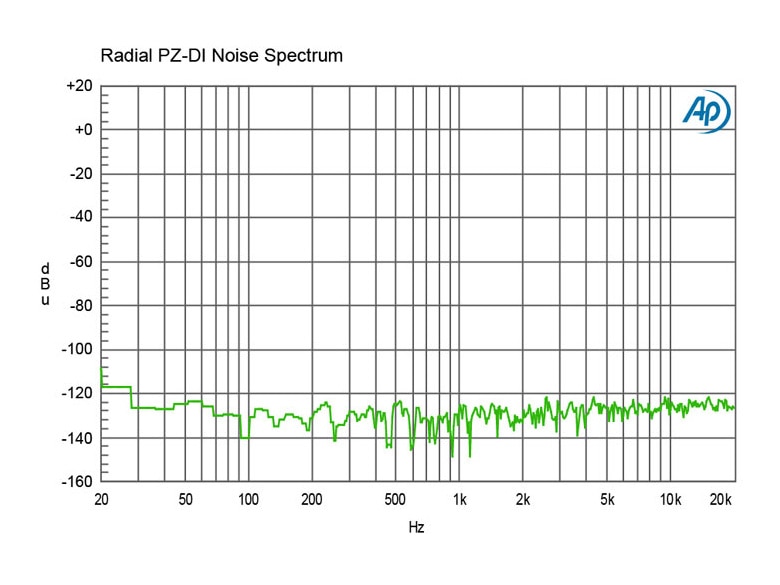

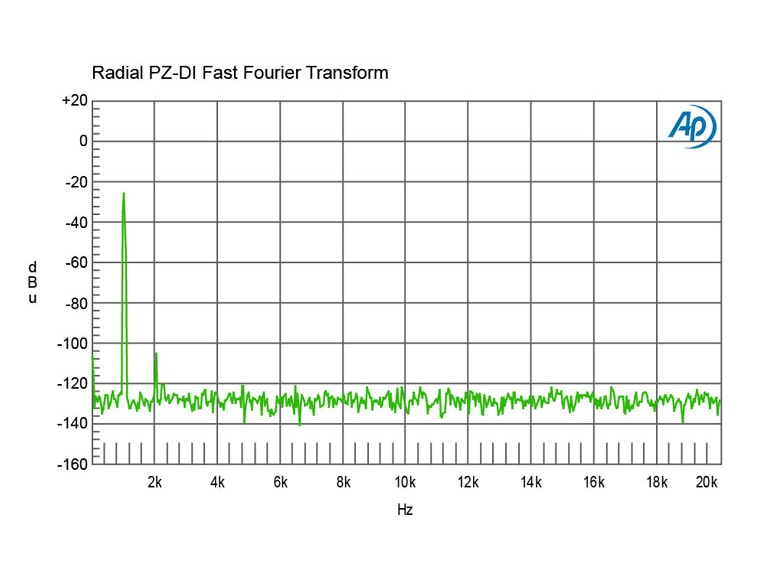

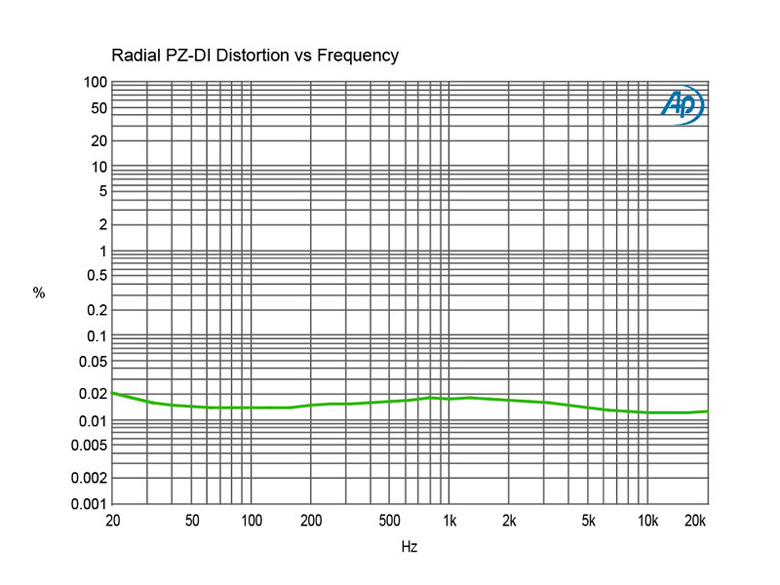

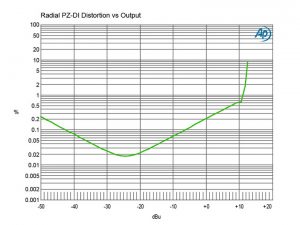

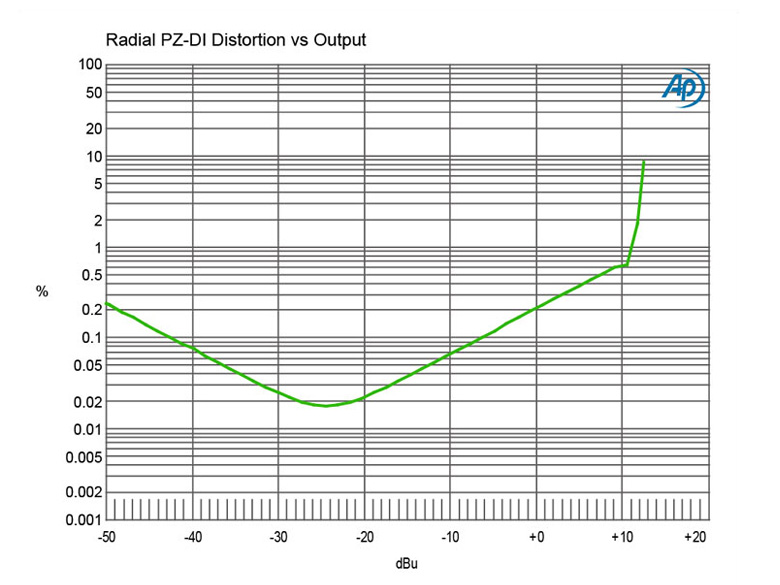

Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Proprietary analog circuit with low-noise FET op-amp | |
| Frequency response: | 20Hz ~ 20kHz | |
| Dynamic range: | 105dB | |
| Gain: | +4.6dB | |
| Total harmonic distortion: | 0.02% | |
| Input Impedance: | 10M/1M/220K-Ohms | |
| Output Impedance: | 200 Ohms - nominal | |
| Equivalent Input Noise: | -98dBu | |
| Features | ||
| Input pad | ||
| Input Connectors: | 1/4" hi-Z input | |
| Output Connectors: | XLR male output | |
| General | ||
| Construction: | 48V phantom - proprietary digital switching | |
| Weight: | 1.2lb (0.54kg) | |
| Shipping size (L x W x D): | 127 x 84 x 48mm (5.0" x 3.3" x 2") | |
| Power: | 48V phantom - proprietary digital switching | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

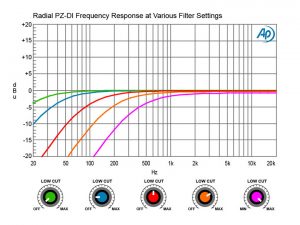

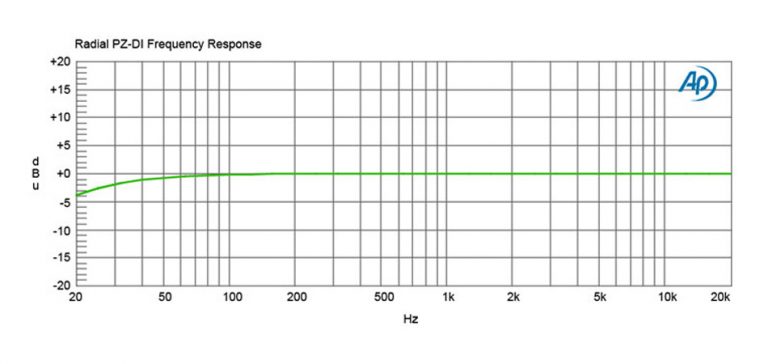

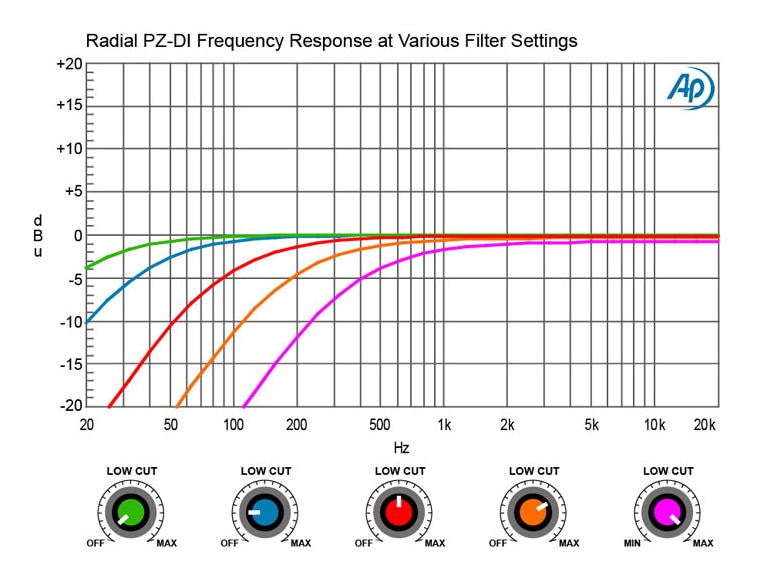

Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
