The Q3 specifications shown below provide the engineer with basic data such as noise and distortion. To truly understand the ‘functionality’ of the device, one is better served by reviewing the various frequency curves that are shown on the using page. Or better yet… by actually listening the effect of the Q3 on voice, instruments and various program material. The Radial Q3 is not about clinical – it is about creatively applying the effect of a coil to add excitement to your music.
Specifications
Block Diagram

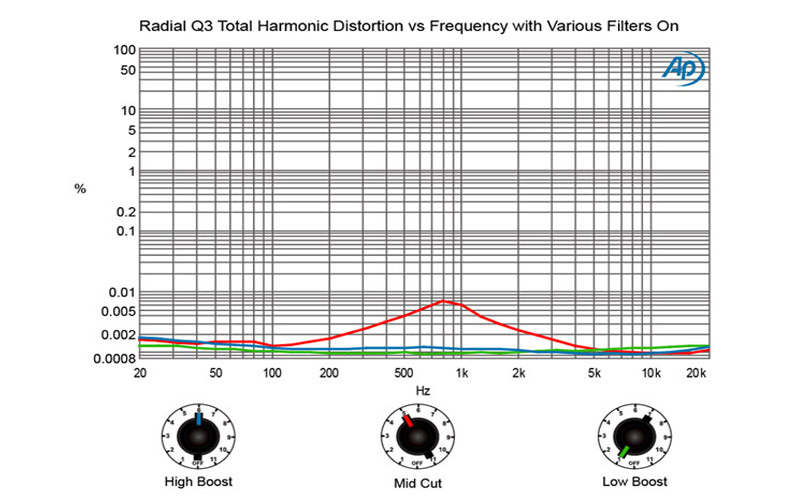

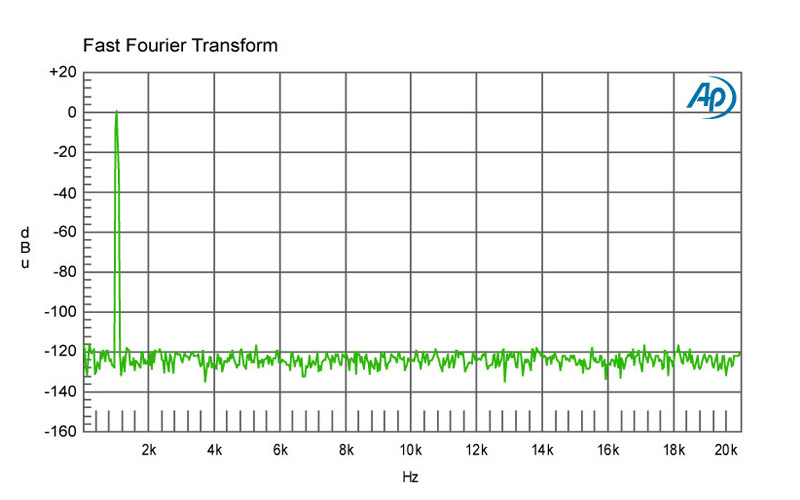

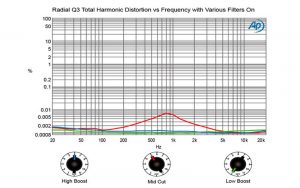

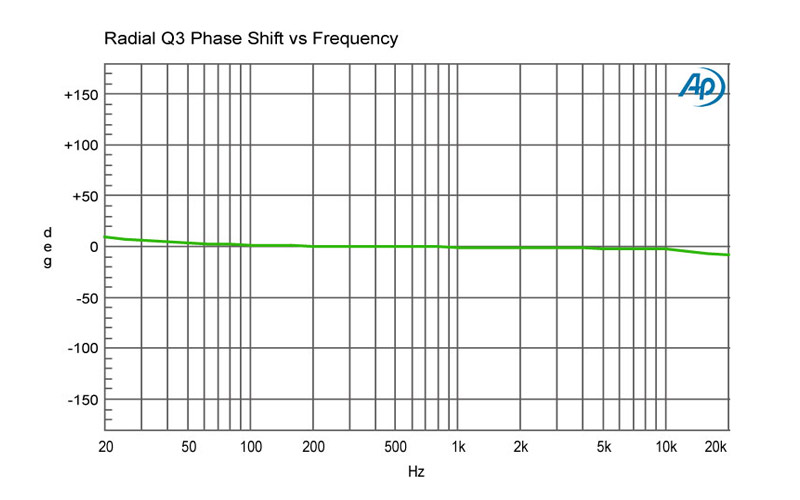

Graphs
Specifications | ||
---|---|---|
Audio circuit type: | Coil/Capacitor/Resistive Boost and Cut Filters | |
Frequency response: | 20Hz-20KHz +/- 1dB in non EQ positions | |
Dynamic range: | 112dB | |
Gain: | 7dB (maximum output, no filters) | |

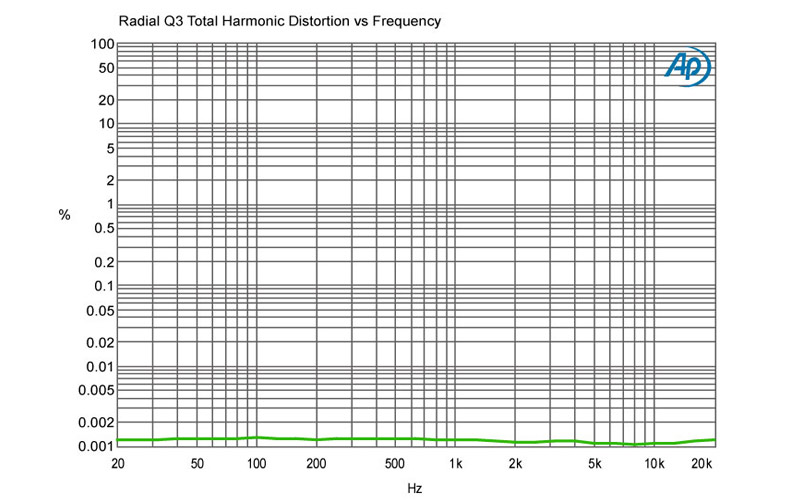

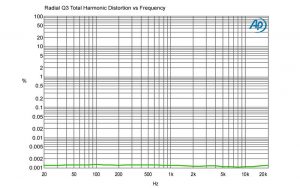

Total harmonic distortion: | 0.003% @ -0dBu @ 1kHz | |

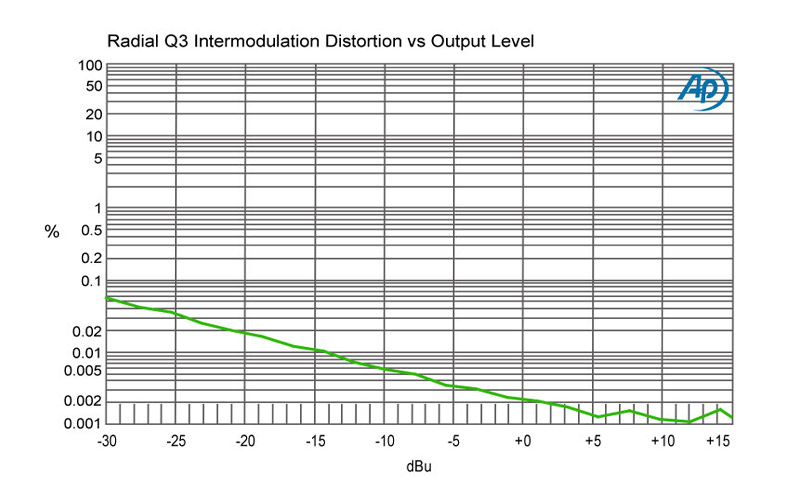

Intermodulation Distortion: | 0.002% (0dBu input) | |
Input Impedance: | 12k Ohms, balanced | |
Output Impedance: | 440 Ohms balanced | |

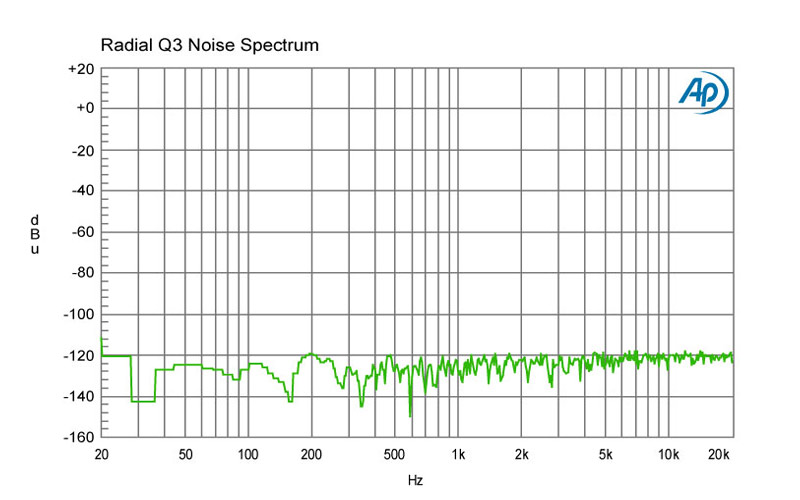

Noise Floor: | -90dBu filters off (-87dBu filters on) | |
Maximum Input: | +20dBu | |
Current Draw: | 25mA | |
Features | ||
OmniPort | ||
Extras: | -3dB @ 150Hz High pass filter; API and WHOS-Doc Compliant | |
General | ||
Construction: | 14-gauge steel | |
Size (L x W x D): | 9" x 6.25" x 2" (228 x 159 x 51mm | |
Weight: | 1.5lbs (0.7kg) | |
Conditions: | For use in dry locations only between 5°C and 40°C | |
Warranty: | Radial 3-year, transferable |
Frequency Response
What do these graphs mean? Learn what to look for and why it matters.
