Twin-Iso Specifications

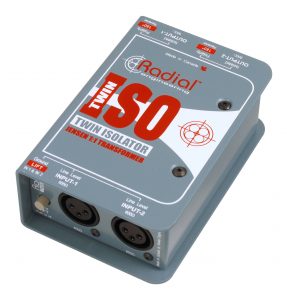

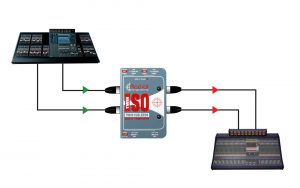

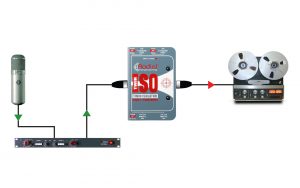

The Radial Twin-Iso is a line level isolator that employs two high performance Jensen® audio transformers. These are able to withstand tremendous signal levels without distortion. The Twin-Iso is basically a straight wire interface with some RF filtering to eliminate noise.
Specifications

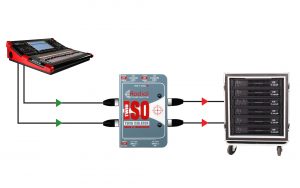

Block Diagram

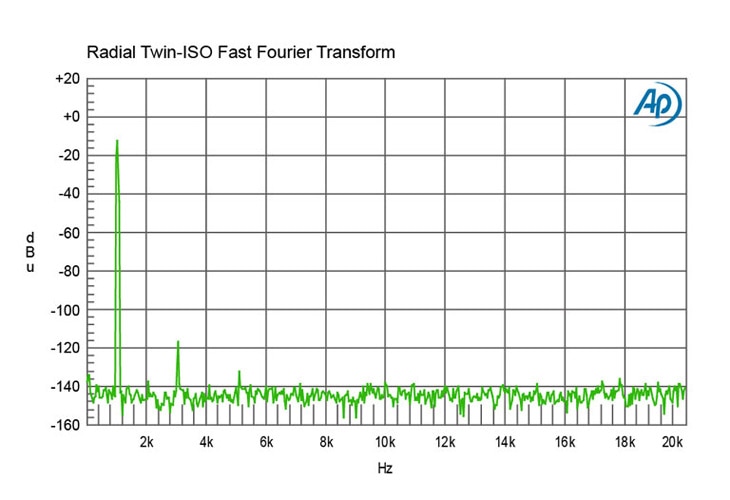

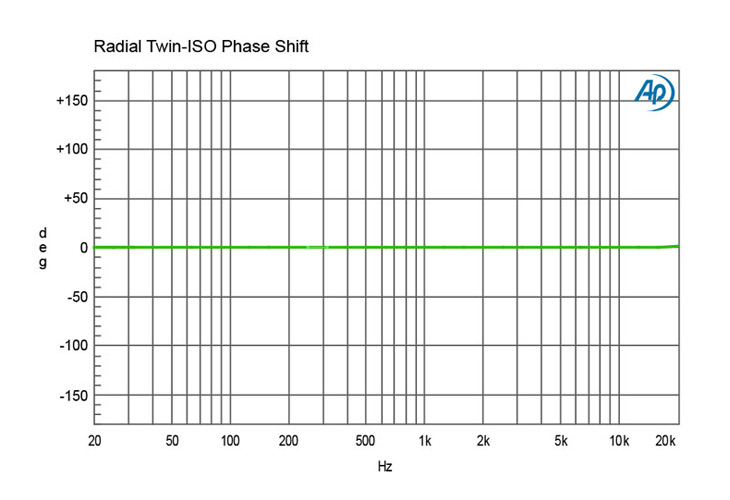

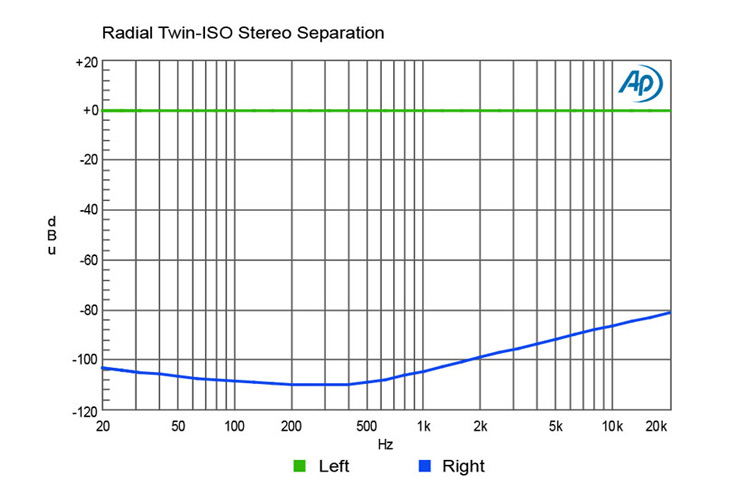

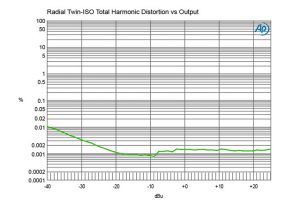

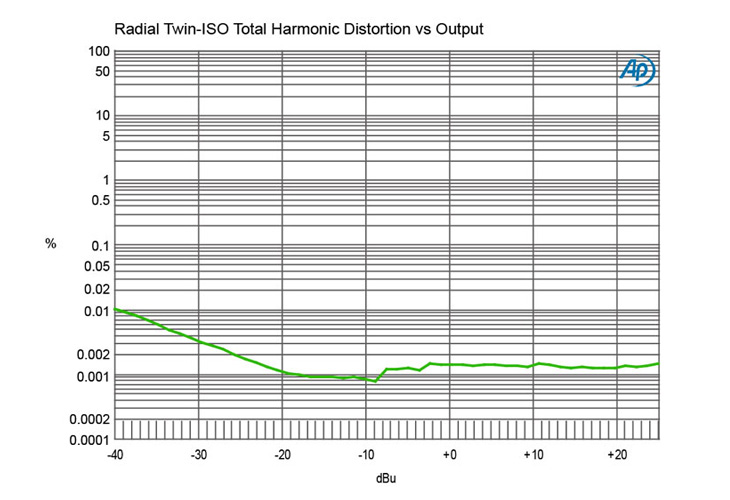

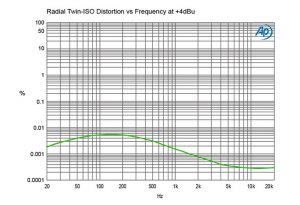

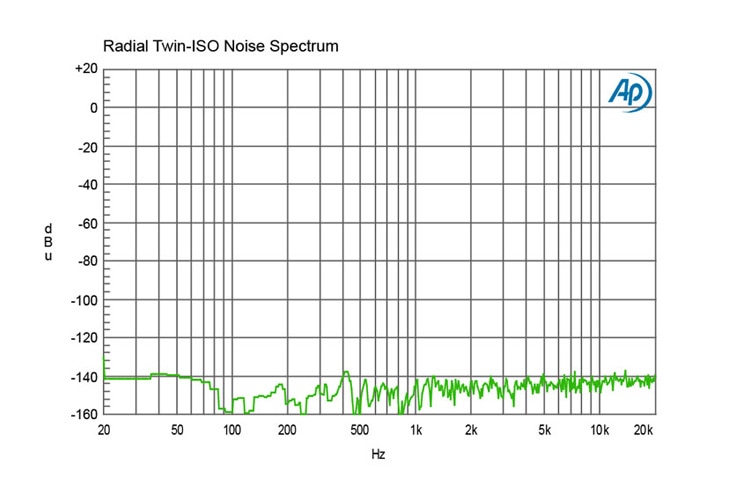

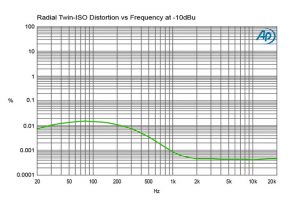

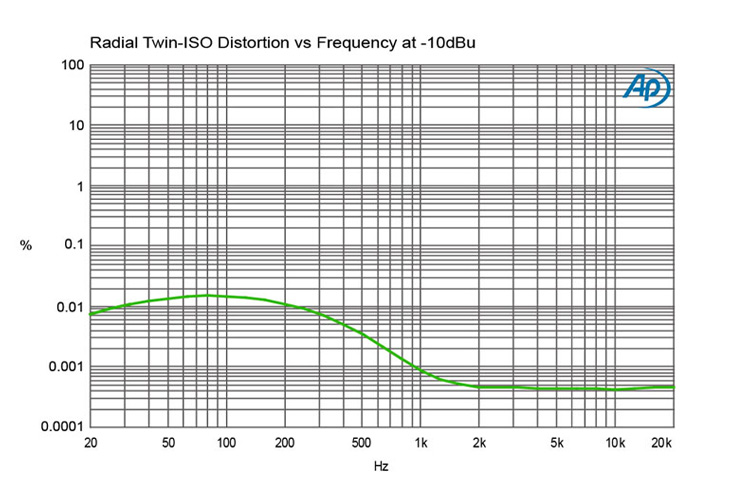

Graphs

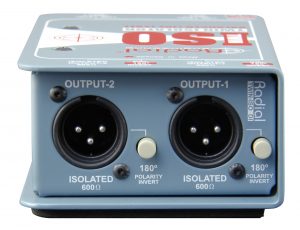

| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive line-level isolation, transformer based | |
| Transformer: | Jensen Transformer | |
| Number of channels: | Stereo (dual mono) | |
| Frequency response: | 10Hz ~ 50KHz (± 1dB) | |
| Dynamic range: | 135dB | |
| Total harmonic distortion: | 0.001% @ 1kHz, +4dBu output | |
| Phase Deviation: | 0.5° @ 100Hz; 37° @ 20Hz | |
| Input Impedance: | 600Ω, balanced | |
| Output Impedance: | 600Ω, balanced | |
| Maximum Input: | +21dBu @ 1kHz, 1% THD+N | |
| Features | ||
| Ground lift | ||
| Input Connectors: | 2 XLR-F inputs | |
| Output Connectors: | 2 XLR-M outputs | |
| General | ||
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |

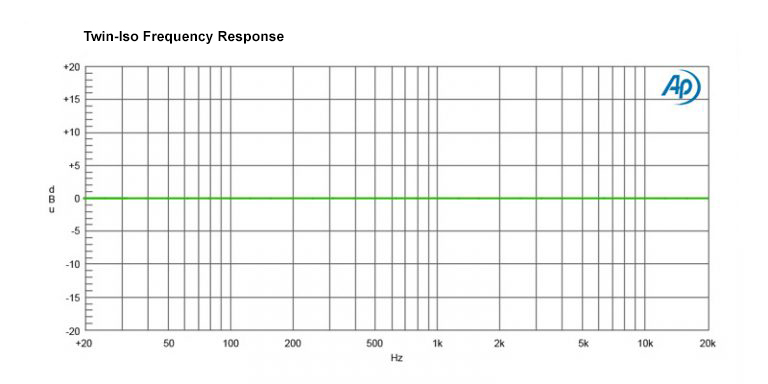

Frequency Response
