Voco Loco Mk2 Features
Features

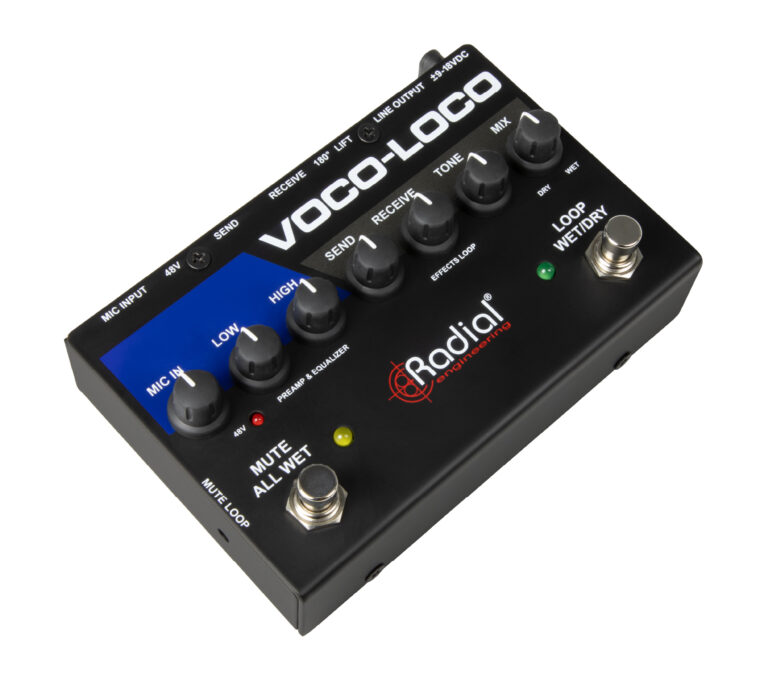

Mic In
Sets the input level of the Voco-Loco Mk2’s mic preamp section.
Low/High
Dual band EQ used to adjust the tone of your mic.
Send/Receive
Individual send and receive controls let you adjust the level going to the pedals to optimize signal-to-noise and reduce distortion.
Tone
Lets you tame the harsh tone certain pedals produce.
Mix
Adjusts the mix between the dry mic signal and the wet effect signal.
Loop Wet/Dry
Primary footswitch toggles on or off the effects loop.
Mute/All Wet
Left footswitch can either mute the output or activate the ‘All Wet’ mode.
Mute-Loop
Recessed switch allows you to choose the function of the left footswitch. Set inward, the footswitch will mute the output of the Voco-Loco Mk2. Set outward, the footswitch will engage the ‘All Wet’ mode.

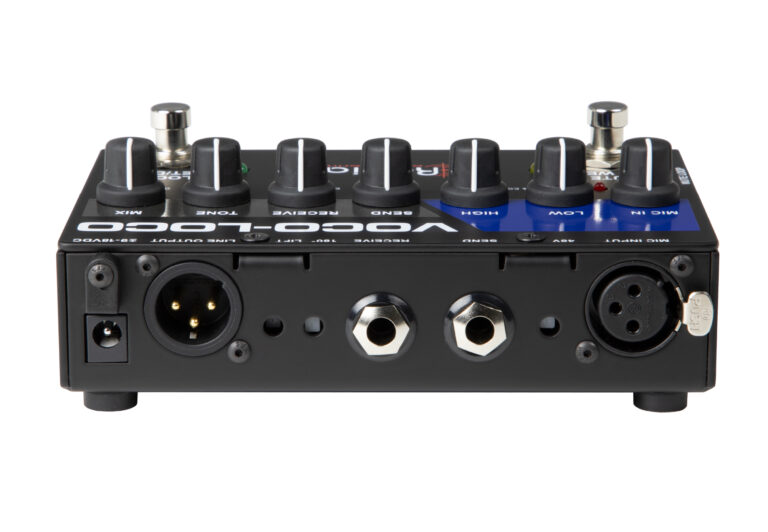

Mic Input
Balanced locking XLR input for your microphone.
48V
Recessed switch turns on 48V phantom power for condenser mics. When turned on, the 48V LED indicator illuminates.
Send/Receive
Unbalanced 1⁄4" jacks used to send the signal to effect pedals and return it back to the Voco-Loco Mk2.
180°
Recessed switch is used to reverse the polarity of the effects loop to ensure guitar pedals are in phase with the microphone.
Lift
Disconnects the pin-1 ground connection at the XLR output to help eliminate noise caused by ground loops.
Line Output
Male XLR output, used to connect to the PA system.
Power
Connection for the included 15VDC power supply, or for use with 9V-18V pedalboard power supplies. (See user manual for further details)
