WR-8 Features

1
2

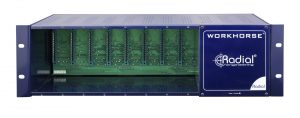

Card Slot

Eight slot Power Radial employs standard card-edge connection for the module. Fully compatible with old and new 500 series modules.

1

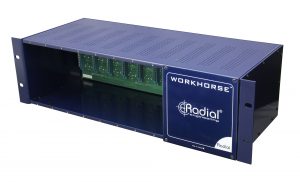

Steel Case

The Workhorse chassis is made from heavy steel to provide extra shielding against stray magnetic fields and RF.

2
1
2
3
4
5
6
7
8
9

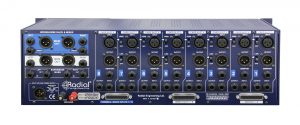

Main Outputs

Jensen transformer isolated to eliminate noise and add warmth. Equipped with TRS insert jacks for effects.

1

Monitor Outputs

Used to send signal to your nearfi eld monitors with choice of XLR and ¼” TRS jacks. Features independent level control.

2

Expansion Bus

Expand the Workhorse to 16x2 or larger by connecting one Workhorse into another. Simple ¼” connections makes it easy.

3

External Power

High current external switching supply delivers 1600mA to the Workhorse plus separate 48V phantom feed for mic preamps.

4

Balanced 25-Pin D-Subs

Eight channel D-Subs follow ProTools standard for easy connectivity to workstations. Wired in parallel to XLR inputs and outputs.

5

Card Slot Connector

Follows original XLR I/O format and adds parallel ¼” TRS jacks for easy connectivity to workstations.

6

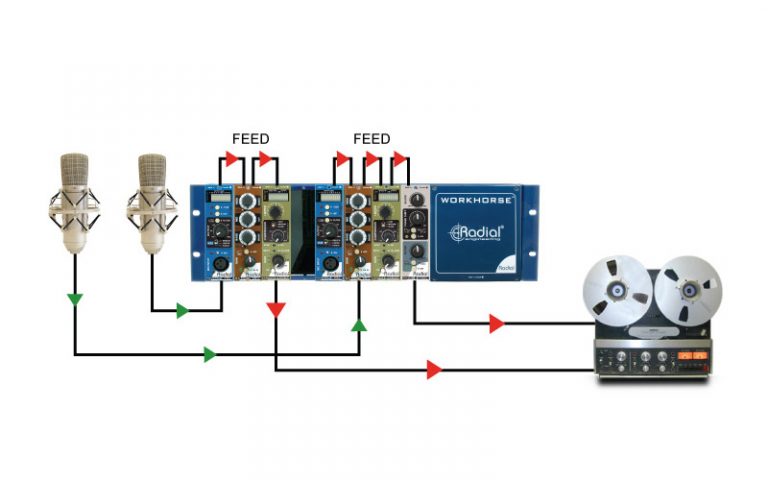

Feed Function

Lets you connect one module into the next to set up elaborate channel strips without having to hard patch with cables.

7

Stereo Link

Makes it easy to pair up modules equipped with a stereo link function in standard API master slave configuration.

8

OmniPort

1/4” TRS connector adds functionality to enhance each module’s capability as set by the manufacturer.

9

WR-8 Resources

Part no: R700 0101 00
