Classic-V9 Specifications

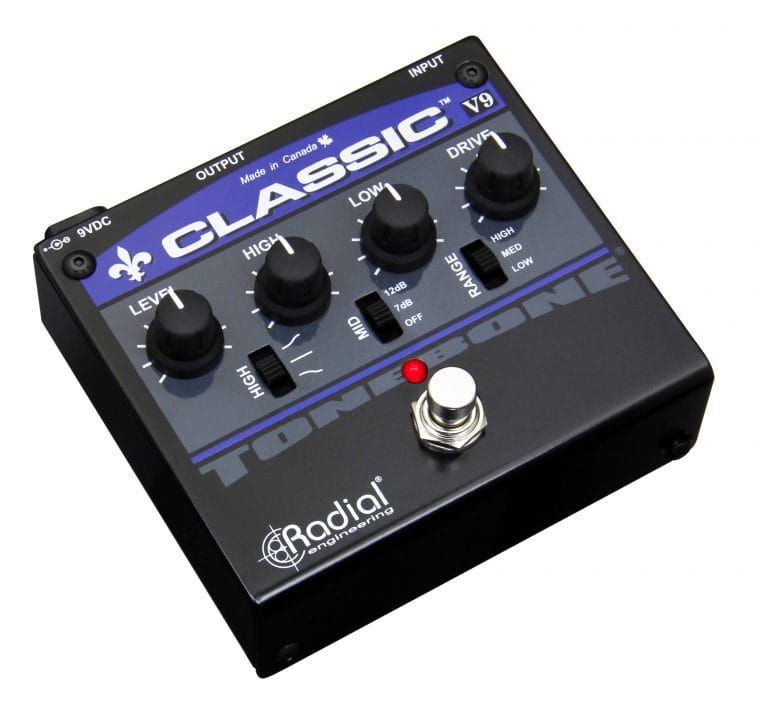

The Classic-V9 is built to the same exact specifications as the original model, but in a compact and pedalboard-friendly design. Constructed from 14-gauge steel, with a heavy-duty footswitch and a double-sided circuit board with a full-surface ground plane, the Classic-V9 is designed to withstand years of use and abuse on the road. It is powered via a standard 9VDC center pin negative power supply (not included) and is also compatible with isolated pedalboard power supply bricks. The circuit itself is designed to provide a wide range of distortion tones, from slight break-up to total distortion, allowing you to fine tune to suit your playing style. Additional EQ and output level controls provide further options for dialing in your tone, making the Classic-V9 an even more powerful tool for your pedalboard.
| Specifications | ||
|---|---|---|
| Audio circuit type: | Classic Class FET buffer and classic audio grade ICs | |
| Frequency response: | Shaped for guitar use | |
| Gain: | 0dB to +48dB | |
| Total harmonic distortion: | <0.01% | |
| Output Impedance: | 12kΩ | |
| Noise Floor: | -78dBu | |
| Features | ||
| EQ Control | ||

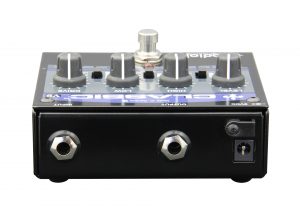

| Input Connectors: | 1/4" | |
| Output Connectors: | 1/4" | |
| General | ||
| Construction: | 14-gauge steel | |
| Size (L x W x D): | 4.25" x 4" x 2" | |
| Weight: | 1.35lb | |
| Shipping size (L x W x D): | 6.5" x 4.13" x 2.5" | |
| Shipping weight: | 1.65lb | |
| Power: | 60mA, 9VDC (center pin negative) | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
