DiNET DAN-RX2 Features

1
2
3
4
5
6
7

Headphone Outputs

3.5mm TRS and ┬╝" TRS headphone outputs work with earbuds and standard headphones.

1

Headphone Level

Sets output level of the headphone amplifier.

2

Headphones On

Activates the headphone amplifier.

3

SYNC LED

Red LED illuminates when unit is powered. Green LED will illuminate once connected to an Ethernet network. Flashing green LED indicates that the DAN-RX2 is in master clock mode, solid green LED indicates that it is in slave mode.

4

SYS LED

Red LED illuminates when power is first applied. Switches to green LED once Dante processor becomes active.

5

+15V LED

Illuminates when the DAN-RX2 is receiving power via the included DC power adapter.

6

PoE LED

Illuminates when the DAN-RX2 is receiving Power over Ethernet (PoE).

7
1
2
3
4
5

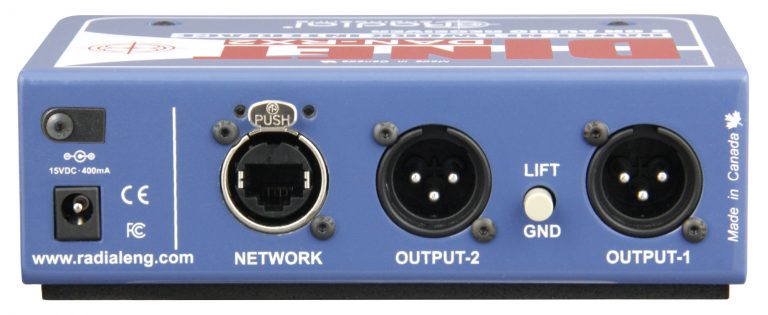

Cable Clamp

Secures the power supply cable to prevent accidental disconnection.

1

Power

15VDC connection for use with included Radial power adapter.

2

EtherCON Compatible Connection

Connects to the Dante network via standard CAT5e or CAT6 Ethernet cable. This port delivers the digital audio signal from the network and powers the DAN-RX2 when Power over Ethernet (PoE) is available.

3

Left and Right XLR Out

Balanced analog audio outputs. Output level is controlled by audio playback source.

4

Ground Lift

Lifts pin-1 on both XLR outputs to eliminate buzz and hum from ground loops

5

DiNET DAN-RX2 Resources

Part no: R800 1065 00
