DiNET DAN-RX2

2-Channel Dante Network Receiver

Dual Output Dante Endpoint

The DAN-RX2 is a 2-channel 24bit/96kHz digital to analog endpoint that allows you to output audio from a Dante or AES67-compliant network for connection to professional audio systems.

  • Stereo analog output device for Dante networks
  • Balanced XLR outputs for connection at mic or line level
  • Built-in headphone amplifier for personal monitoring
  • 24bit/96kHz digital to analog conversion
  • Compliant to AES67 specifications

Robust digital audio distribution

The DAN-RX2 is a road-worthy digital receiver capable of delivering two channels of analog audio to any location from a Dante or AES-67 compliant network. Balanced XLR outputs include a ground lift and a separate headphone amp with its own level control is included for local testing or personal monitoring. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations. Redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously, and the DAN-RX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.

DiNET DAN-RX2 Applications

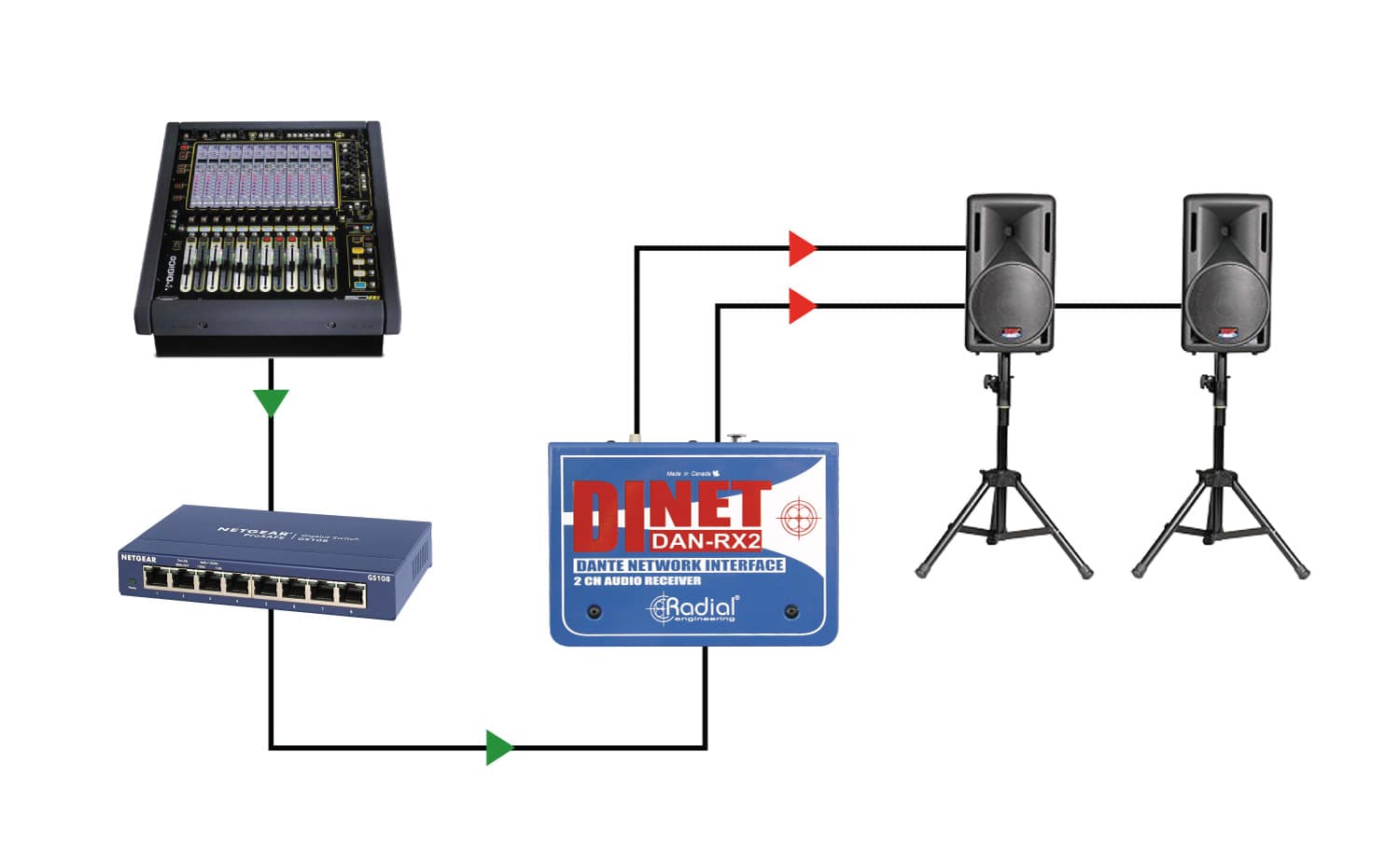

Using the DAN-RX2 to connect a small PA system

Quickly route a stereo feed to small PA systems in overflow rooms or remote locations within the venue.

DiNET Dan-RX2 application image

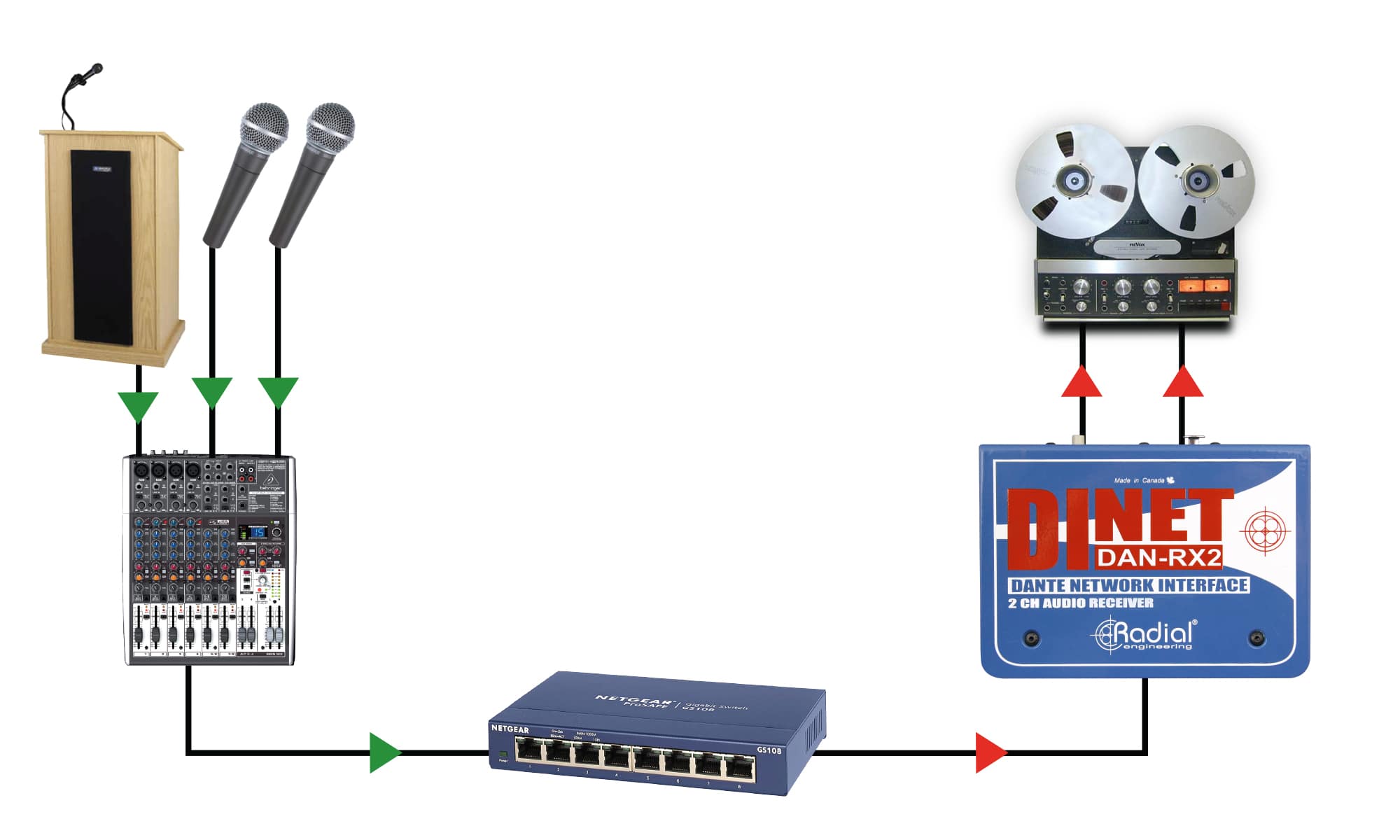

Using the DAN-RX2 for press distribution

Press recorders are often placed in different rooms away from the live event. The DAN-RX2 provides an easy way to send audio to these rooms to connect directly to a recorder or to feed a press box when necessary.

DiNET Dan-RX2 application image

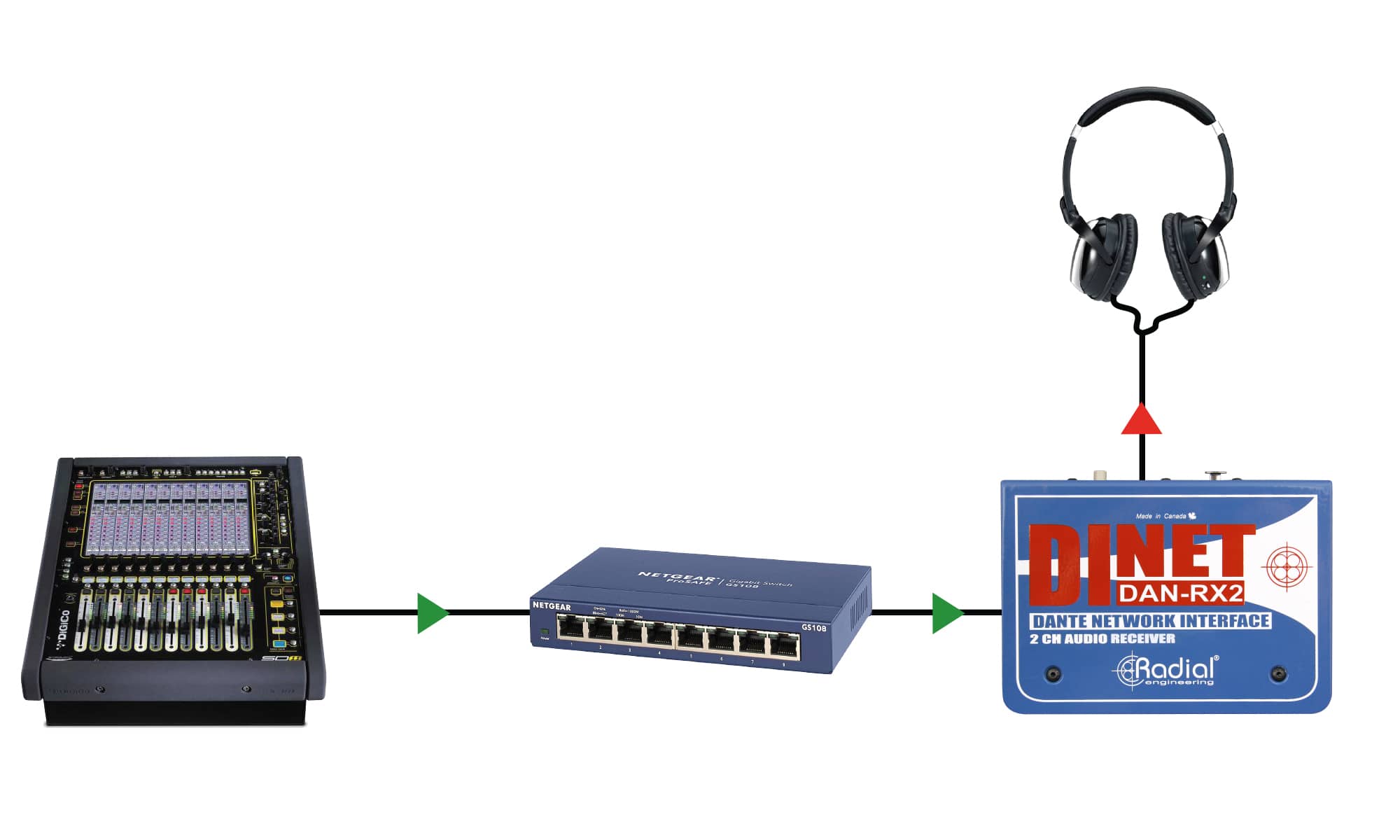

Using the DAN-RX2 for personal monitoring

The dedicated headphone outputs on the DAN-RX2 allows it to be used as a personal monitoring system. The sound engineer can create a unique mix for musicians, producers or any other event staff that need to monitor a feed in any location on the network.

Videos

  • Now Playing
    Radial Engineering DAN TX2 DAN RX2
