JX42 V2 Features

1
2
3
4

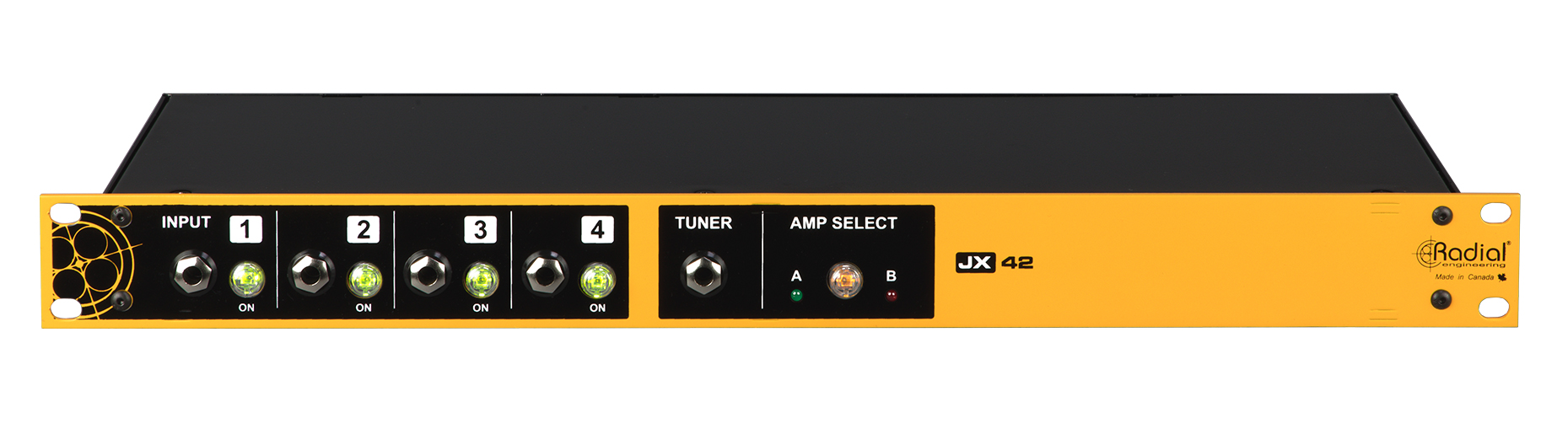

Inputs

Buffered gold-contact inputs for unbalanced instruments such as guitars and basses. The front panel jacks take priority over the rear panel instrument inputs.

1

On/Off

Large switches with green LED indicators turn each instrument input on/off. Multiple inputs can be on simultaneously.

2

Tuner Out

Buffered unbalanced output to feed a tuner pedal. This output is fed by all inactive instrument inputs, and can be used simultaneously with the rear panel Tuner output.

3

Amp Select

Illuminated switch toggles between amp outputs A & B. The light for the amp select switch turns off when the Mute function is engaged on the optional JR-2 remote footswitch or via MIDI commands. Each amp output also features a corresponding LED which turns on to indicate which amp output is currently active.

4
1
2
3
4
5
6
7
8

IEC Power

Connection for standard IEC power cable.120V/240V operation for international use.

1

MIDI In

Standard 5-pin MIDI connector allows MIDI controllers to activate the inputs and outputs of the JX42 V2. Eight dip switches configure channel, program, and control changes. Can be used in conjunction with the JR-5 and the JR-2 remotes.

2

JR-5 Remote

XLR connection for the optional JR-5 remote footswitch, which can control the instrument inputs from a distance.

3

JR-2 Remote

1/4” TRS input for connection to the optional JR-2 remote footswitch, which can toggle between or mute the amplifier outputs. When a JR-2 remote is connected, the front panel amp select switch on the JX42 will be inactive.

4

Tuner Out

Buffered unbalanced output to feed a separate tuner. This output is fed by all inactive instrument inputs and is always on. Can be used simultaneously with the front panel Tuner output.

5

Outputs

Transformer isolated and buffered gold-contact outputs for feeding two stage amplifiers.

6

Lift

Isolates the ground connection on each amplifier output to help eliminate hum and buzz caused by ground loops.

7

Inputs

Buffered gold-contact connections for unbalanced instruments such as guitars and basses. Wired in parallel with front panel connectors.

8

JX42 V2 Resources

Part no: R800 6507 00
