Reamp Station Features

1
2
3
4
5
6
7
8
9

Inst

1/4" unbalanced instrument input to feed the DI side of the Reamp Station.

1

Thru

1/4" output passes the instrument signal through to feed an amplifier for recording or monitoring.

2

Buffer

Engages a unity gain buffer on the Thru output to avoid loading down passive pickups on your instrument.

3

Pad

-15dB pad reduces the input sensitivity for connection to high-output instruments like an active bass.

4

48V LED

Indicates that the Reamp Station is receiving 48V phantom power to operate the direct box features. Not needed for operation of the Reamp circuit.

5

Mute

Cuts signal to the 1/4" Amp Out when Reamping. Does not affect the direct output.

6

Filter

3-position switch applies a high-cut, low-cut, or flat frequency response to the 1/4" Amp Out and tailor the Reamped tone as needed.

7

Level

Controls the signal level to the 1/4" Amp Out for optimal gain-staging through amplifiers and effects pedals.

8

3.5mm Input

Allows mobile devices to feed the Reamp Station to play though amplifiers or pedals. Automatically sums left and right channels to mono.

9
1
2
3
4
5
6
7

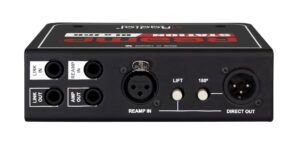

Link In / Out

Balanced 1/4" connections that allow the Reamp Station to daisy-chain to other Reamp devices to feed multiple amplifiers simultaneously.

1

Reamp In

1/4" TRS balanced input for connecting line-level outputs from audio interfaces to the Reamp Station.

2

Amp Out

1/4' TS unbalanced output for feeding Reamped signals to amplifiers and effects pedals.

3

Reamp In

XLR balanced input for connecting line-level outputs from mixers or pro audio playback devices to the Reamp Station.

4

Lift

Disconnects the ground pin at the Reamp inputs and the direct output to remove buzz and hum due to ground loops.

5

180°

Reverses the polarity at the direct output to compensate for amps or effects that reverse the phase of the signal.

6

Direct Out

Mic-level XLR output to feed a copy of your instrument signal to a mic preamp or audio interface for recording.

7

Reamp Station Resources

Part no: R800 1037 00
