SAT-2 Specifications
Specifications
Block Diagram
Graphs
| Specifications | ||
|---|---|---|
| Audio circuit type: | Passive audio signal path | |
| Number of channels: | 2 | |
| Frequency response: | 20Hz to 20kHz | |
| Dynamic range: | >141dB | |
| Gain: | 0dB | |

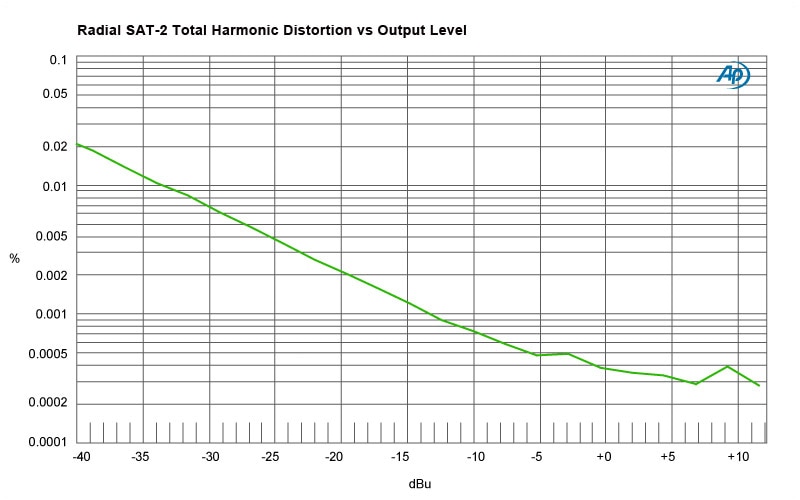

| Total harmonic distortion: | >0.0005% @ 0dBu | |

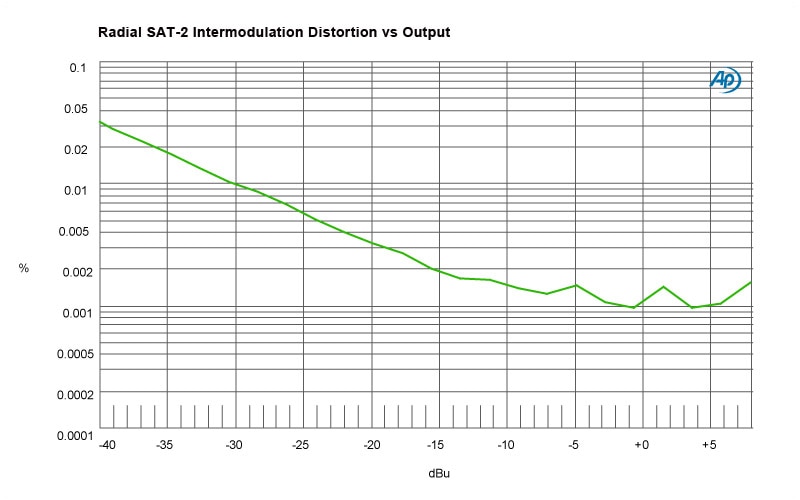

| Intermodulation Distortion: | >0.001% @ 0dBu | |

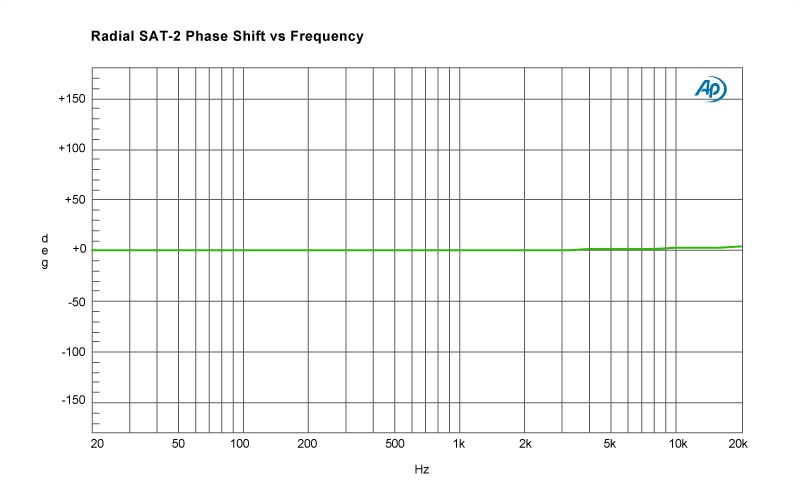

| Phase Deviation: | 0° @ 20Hz, 0° @ 1kHz, +2° @10kHz | |
| Input Impedance: | 8 kΩ | |
| Output Impedance: | 1.8 kΩ | |
| Common Mode Rejection Ratio: | >80dB | |

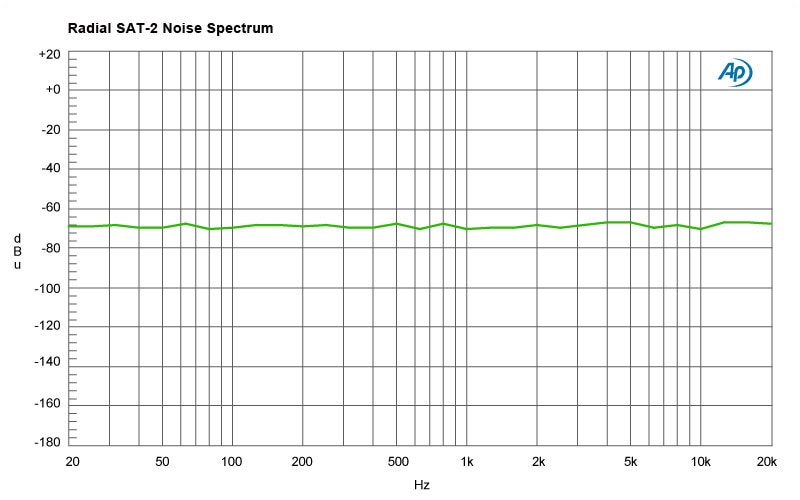

| Noise Floor: | -115dBu | |
| Maximum Input: | >+ 26dBu | |
| Features | ||
| Mono Sum, Level Control | ||
| Input Connectors: | XLR, 1/4" | |
| Output Connectors: | XLR | |
| General | ||
| Construction: | 14-gauge steel chassis and outer shell | |
| Size (L x W x D): | 5" x 3.25" x 2" (12.7 x 8.3 x 5cm) | |
| Weight: | 1.5lb (0.68kg) | |
| Shipping size (L x W x D): | 6.4" x 4.25" x 3" (16.3 x 10.8 x 7.6cm) | |
| Shipping weight: | 1.8lb (0.8kg) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
Frequency Response
