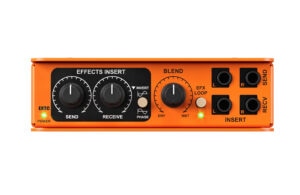

Send & Receive

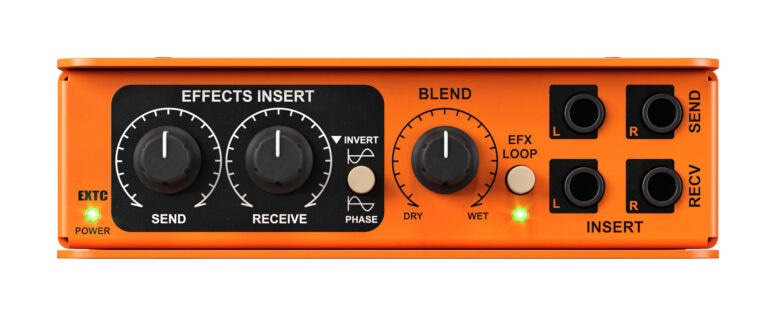

Adjusts the signal level going to and from your effects to optimize the signal-to-noise ratio.
Controls the wet/ dry mix between output of the pedals and the original dry audio tracks.

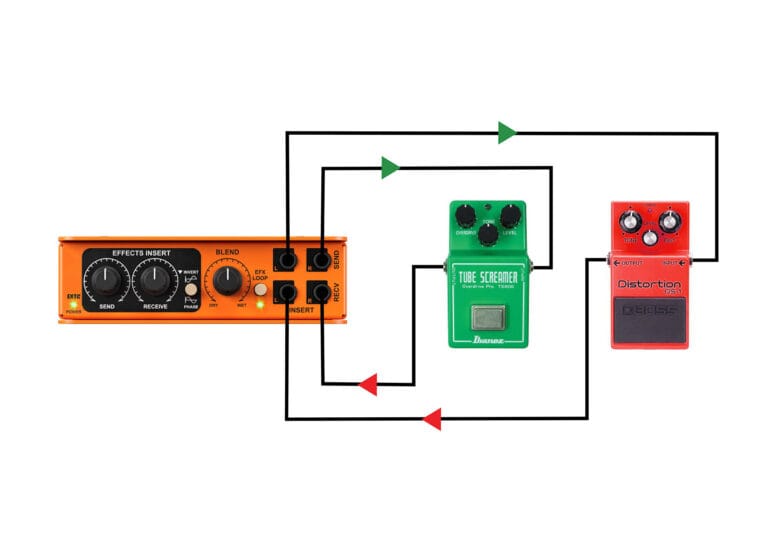

Unbalanced 1/4” TS connections for your stereo effects pedal chain.
Illuminates to indicate the EXTC Stereo is connected to power.
Used to compensate for effects pedals that are wired out of phase.
EFX Loop ON
On/off switch bypasses the unbalanced EFX loop, allowing you to A/B audition your effects.
- Secures the power supply cable in place to prevent accidental disconnection.

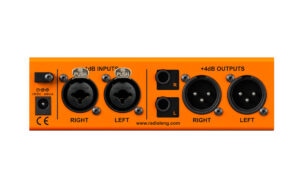

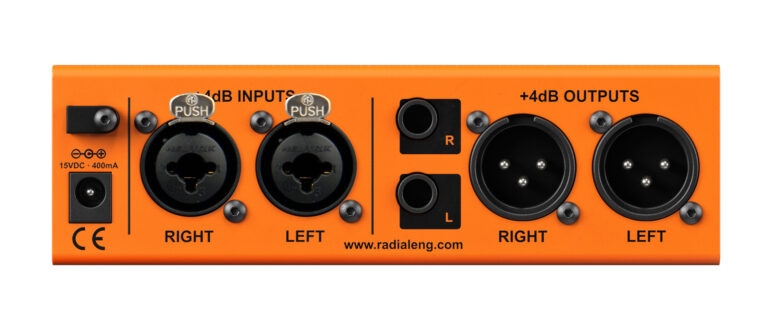

Connection for the included 15V 400mA power supply.

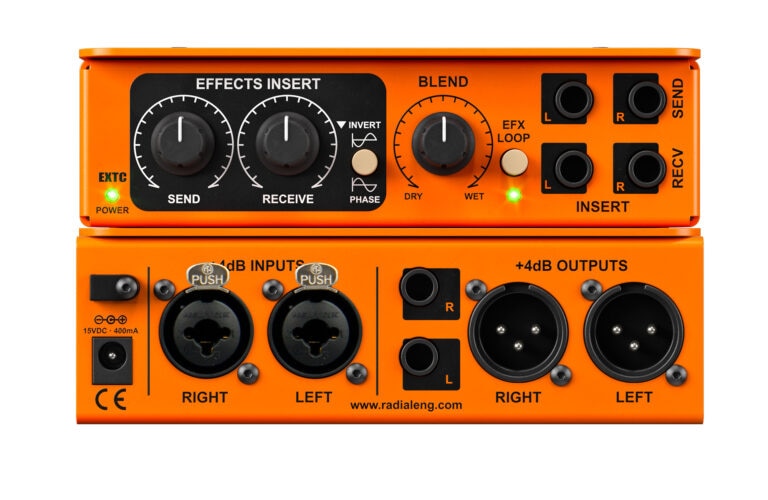

Balanced inputs allow you to connect XLR or 1/4” TRS line-level sources to the EXTC Stereo
1/4" Line Outputs
- Balanced 1/4” TRS outputs for connection to the line-level inputs of a recording interface or mixer
XLR Line Outputs
Balanced XLR outputs for connection to the line-level inputs of a recording interface or mixer.
