HotShot 48V Features

1
2

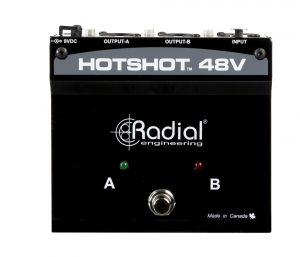

LED Indicators

For visual confirmation of the active output.

1

Toggle Footswitch

Selects which output is active. This can be configured as a momentary or a latching switch.

2
1
2
3
4
5
6
7

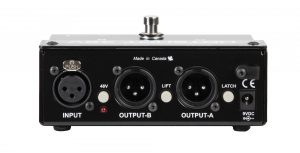

Input

Balanced XLR input to connect to a microphone.

1

48V

Activates 48V phantom for powering a condenser microphone.

2

Output-B

Connects to the secondary destination or band communication equipment

3

Ground Lift

Disconnects Pin-1 on both XLR outputs to eliminate hum and buzz caused by ground loops.

4

Output-A

Connects to the main output destination.

5

Latch

Reconfigures the toggle footswitch for latching operation. When this switch is not engaged, the footswitch acts as a momentary switch, and will only activate Output-B as long as the footswitch is held down.

6

9VDC

Connection for 9-12 volt DC center-pin negative power supply (included).

7

HotShot 48V Resources

Part no: R800 1505 00
