HotShot 48V Specifications

Audio circuit type: Footswitch controlled switching relay
Frequency response: 20Hz ~ 20kHz
Dynamic range: >140Db
Gain: 0dBu
Input Impedance: Source dependent
Output Impedance: Source dependent
Common Mode Rejection Ratio: -106dB
Noise: -115dBu
Maximum Input: +26dBu
Ground lift

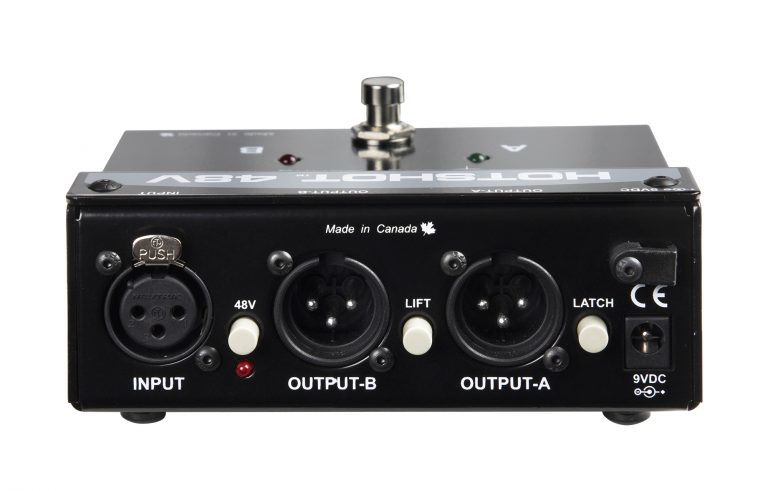

Input Connectors: Locking XLR-F input
Output Connectors: 2 XLR-M outputs

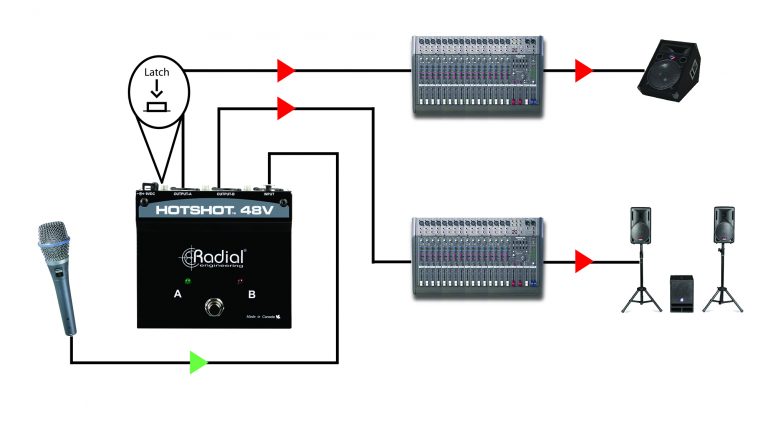

Extras: Latch/Momentary switch, 48V phantom power
Construction: 14 gauge steel chassis
Size (L x W x D): 6.0" x 5.0" x 1.81" (153mm x 127mm x 46mm)
Weight: 1.88lb (0.85Kg)
Power: 400mA, 9VDC (center pin negative)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable

What do these graphs mean? Learn what to look for and why it matters.

Learn More

HotShot 48V Resources

Part no: R800 1505 00
