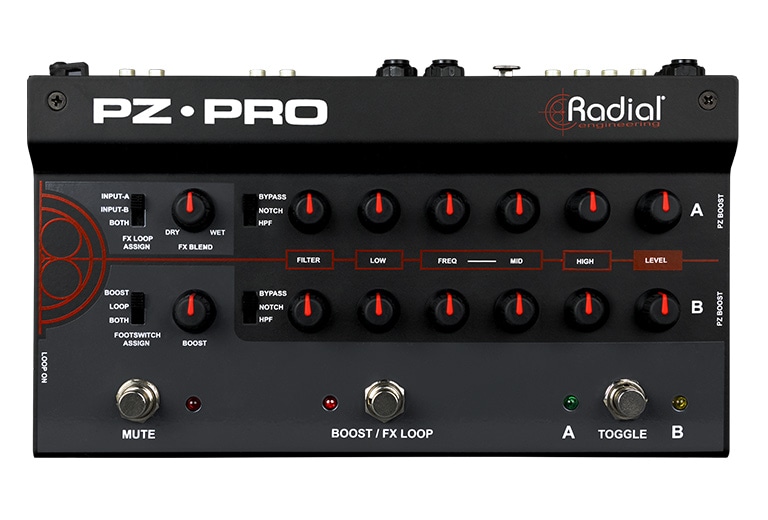

Sets the volume on each input channel. Unity gain is 12 o'clock.
3 Band EQ
Variable EQ for each input with bass, semi-parametric mid range, and high frequency boost/cut controls.
Three-position switch and variable control activates a notch filter for targeted frequency removal or a high-pass filter to remove excessive low end rumble.
Wet/Dry control allows you to mix the original 'dry' input sources with the 'wet' FX Loop.
FX Loop Assign
Selects whether guitar pedals in the FX Loop affect the signal on input A, input B, or Both.
Used to set the Boost/FX Loop footswitch to activate the Boost, FX Loop, or both simultaneously.
Sets the amount of clean boost applied when the Boost circuit is active.
Footswitch lets you select between input A and input B, with LEDs to indicate active input. This switch is bypassed when the rear panel switch is engaged.
Boost / FX Loop
Footswitch activates the built-in clean boost or the FX loop. Works in conjunction with the Footswitch Assign three-position switch.
Mute - Footswitch
Turns off all outputs except for the Tuner Out. Used for silent on-stage tuning or instrument changeovers.

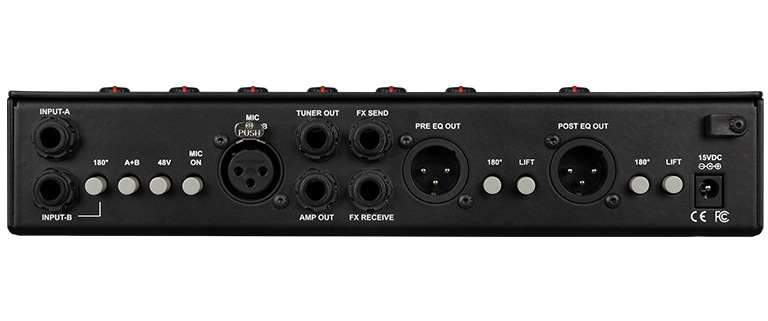

1/4" TS instrument input for channel A of the PZ-Pro.
1/4" TS instrument input for channel B of the PZ-Pro. This input is deactivated when the MIC ON switch is engaged.
Polarity reverse switch for input B helps to correct for phase issues when summing both inputs together. This switch also affects the microphone input on channel B.
Sums input A and input B together after their respective EQ sections. Engaging this switch activates both inputs simultaneously and disables the Toggle footswitch on the PZ-Pro.
Activates phantom power at the Mic Input B for powering condenser microphones.
Activates the XLR Mic Input B, disengaging the 1/4" instrument input on channel B.
XLR input for connection to a microphone to feed channel B of the PZ-Pro. Compatible with both condenser and dynamic microphones.
1/4" TS buffered output for connection to a tuner pedal. This output will always be active, even when the Mute footswitch is engaged on the PZ-Pro, allowing for tuning at any time.
1/4" TS instrument-level output to feed an on-stage amplifier. Amp out signals include all EQ settings, along with the FX loop and Boost functions.
FX Send & Receive
1/4" TS instrument jacks for connecting external effects pedals to the PZ-Pro. Activated by the Boost/FX Loop footswitch.
PRE EQ Output
Balanced XLR direct box output to feed a mic-level signal to the PA or a recording interface. Pre EQ Output is not affected by EQ settings or FX/Boost functions.
Reverses the polarity of the Pre EQ Output to help eliminate feedback on stage or correct for phase issues when summing the DI output with a mic'd up stage amplifier.
Disconnects pin-1 at the Pre EQ XLR Output to help eliminate hum and buzz from ground loops.
POST EQ Output
Balanced XLR direct box output to feed a mic-level signal to the PA or a recording interface. Post EQ Output is affected by the EQ and FX/Boost functions.
Reverses the polarity of the Post EQ Output to help eliminate feedback on stage or correct for phase issues when summing the DI output with a mic'd up stage amplifier.
Disconnects pin-1 at the Post EQ XLR Output to help eliminate hum and buzz from ground loops.
Connection for Radial 15VDC/400mA power supply (included).
prevents accidental power disconnection by locking down the cable for the PSU.
